Features
Threading
BSP / NPT
Grade
CF8 (SS 304) / CF8M (SS 316)
Tolerance
±1.5mm
Pressure Rating
PN-20 (Hyd. 30kg)
Max. Working Pressure
290 Psig
Application Medium
Food Processing
Notes
Also available in CF8M (SS 316)
Product Standard :- ISO – 4144
Suitability
Water
Steam
Gas
Oil
Air
-
Material Combination
-

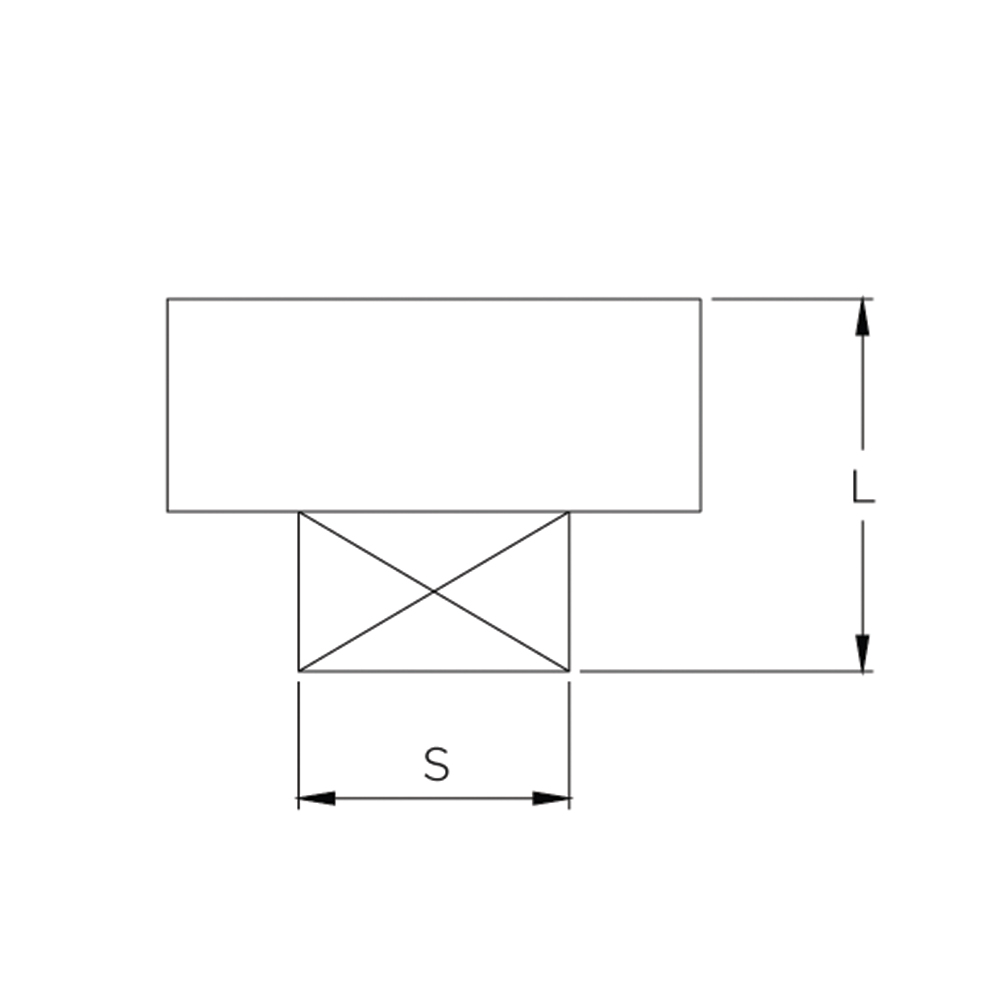

Dimensional Data
Size L h 1/4” 10.3 15.3 3/8” 10.4 16.4 1/2” 13.6 20.6 3/4” 14.0 22 1” 17.0 28 1.1/4” 18.0 29 1.1/2” 18.0 29.9 2” 21.5 34.5 2.1/2” 23.5 38.5 3” 30.0 45 4” 33.0 52
Features
Threading
BSP / NPT
Grade
CF8 (SS 304) / CF8M (SS 316)
Tolerance
±1.5mm
Pressure Rating
PN-20 (Hyd. 30kg)
Max. Working Pressure
290 Psig
Application Medium
Food Processing
Threading
BSP / NPT
Grade
CF8 (SS 304) / CF8M (SS 316)
Tolerance
±1.5mm
Pressure Rating
PN-20 (Hyd. 30kg)
Max. Working Pressure
290 Psig
Application Medium
Food Processing
Notes
Also available in CF8M (SS 316)
Product Standard :- ISO – 4144
Suitability
Water
Steam
Gas
Oil
Air
Dimensional Data
| Size | L | h |
| 1/4” | 10.3 | 15.3 |
| 3/8” | 10.4 | 16.4 |
| 1/2” | 13.6 | 20.6 |
| 3/4” | 14.0 | 22 |
| 1” | 17.0 | 28 |
| 1.1/4” | 18.0 | 29 |
| 1.1/2” | 18.0 | 29.9 |
| 2” | 21.5 | 34.5 |
| 2.1/2” | 23.5 | 38.5 |
| 3” | 30.0 | 45 |
| 4” | 33.0 | 52 |
Selected Product

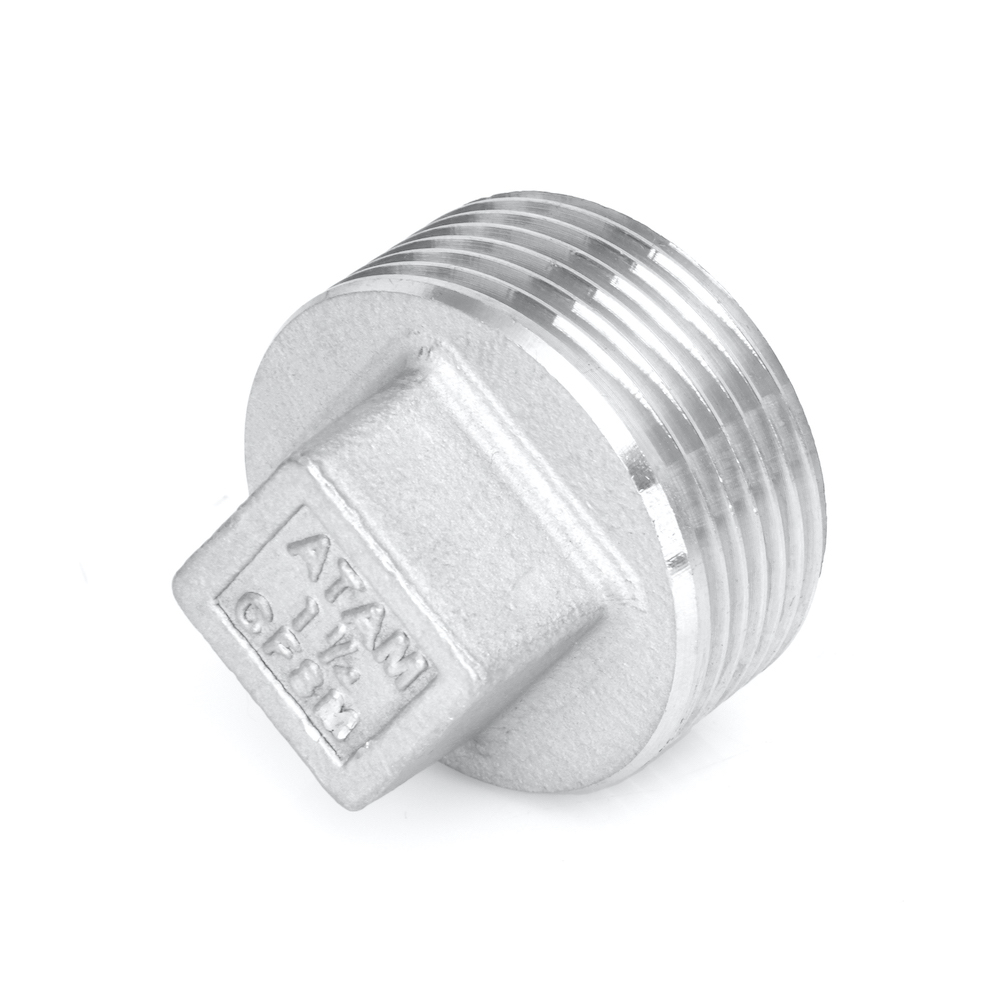

AV-544 Stainless Steel Square Plug / Dummy, PN-20
