Features
Product Standard
BS EN 17292 / ASME 16.34
Pressure / Class Rating
Class-150
Body Material Cum Standard
Cast Carbon Steel (ASTM A216 Gr. WCB)
Port Opening
Full Bore
Product Description
Two Piece Design, Lever Operated (Blow Out Proof Stem)
Type of Seat
Renewable Seat
Trim
Ball & Stem: Stainless Steel (AISI 304), PTFE Seats
End Details
Flanged Ends as per ASME B16.5 (Class-150) Raised Face (Drilled)
Test Pressure
Body: 30 Bar (Hyd.), Seat: 22 Bar (Hyd.), Seat: 7 Bar (Air)
Notes
Suitable for steam service with specialized PTFE.
Can be provided with Glass Filled PTFE, Graphite Blended PTFE & PEEK Seats on request.
Suitability
Water
Steam
Gas
Oil
Air
-
Material Combination
S.No Description No. Material Specifications 1 Body 1 Cast Carbon Steel ASTM A216 Gr. WCB 2 Seat Ring 2 PTFE – 3 Stem Seal 1 PTFE – 4 Ball (Hollow) 1 C.S.S. AISI A 351 Gr. CF8 5 Gland Packing 1 PTFE – 6 Gland Flange 1 C.C.S ASTM A 216 Gr. WCB 7 Stem 1 Stainless Steel ASTM A 276 Type 304 8 Lever Stopper 1 Stainless Steel Type 202 9 Lever (With PVC Sleeve) 1 C.C.S ASTM A 216 Gr. WCB 10, 11 Lever Washer, Lever Bolt 1 Stainless Steel Type 202 12 Gasket 1 PTFE – 13 Body / Connector Joint Nut To Suit HT Steel ASTM A 194 Gr. 2H 14 Body / Connector Joint Stud To Suit Alloy Steel ASTM A 194 Gr. B7 15 Connector 1 C.C.S ASTM A 216 Gr. WCB 16 Gland Flange Bolt 2 Alloy Steel ASTM A 194 Gr. B7 17 Gland Flange Nut 2 HT Steel ASTM A 194 Gr. 2H -

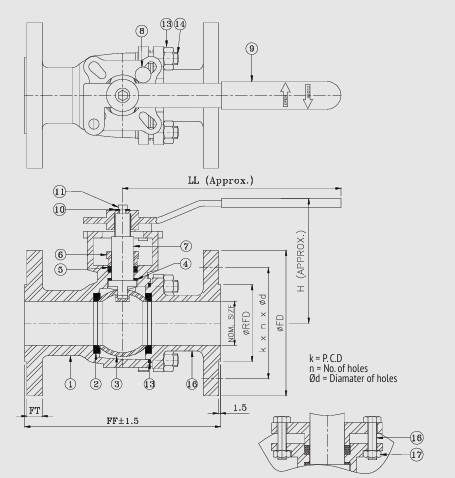

Dimensional Data
Size (mm) FF FT ØRFD ØFD K n ØD LL H 25 127 9.6 50.8 110 79.4 4 16 167 94 32 140 11.2 63.5 117 88.9 4 16 167 100 40 165 12.7 73 125 98.4 4 16 220 113 50 178 14.3 92.1 150 120.7 4 19 220 121 65 191 15.9 104.8 180 139.7 4 19 220 130 80 203 17.5 127 190 152.4 4 19 300 165 100 229 22.3 157.2 230 190.5 8 19 300 182 125 255 22.5 185.7 254 215.9 8 22 450 252 150 394 23.9 215.9 280 241.3 8 22 450 270
Features
Product Standard
BS EN 17292 / ASME 16.34
Pressure / Class Rating
Class-150
Body Material Cum Standard
Cast Carbon Steel (ASTM A216 Gr. WCB)
Port Opening
Full Bore
Product Description
Two Piece Design, Lever Operated (Blow Out Proof Stem)
Type of Seat
Renewable Seat
Trim
Ball & Stem: Stainless Steel (AISI 304), PTFE Seats
End Details
Flanged Ends as per ASME B16.5 (Class-150) Raised Face (Drilled)
Test Pressure
Body: 30 Bar (Hyd.), Seat: 22 Bar (Hyd.), Seat: 7 Bar (Air)
Product Standard
BS EN 17292 / ASME 16.34
Pressure / Class Rating
Class-150
Body Material Cum Standard
Cast Carbon Steel (ASTM A216 Gr. WCB)
Port Opening
Full Bore
Product Description
Two Piece Design, Lever Operated (Blow Out Proof Stem)
Type of Seat
Renewable Seat
Trim
Ball & Stem: Stainless Steel (AISI 304), PTFE Seats
End Details
Flanged Ends as per ASME B16.5 (Class-150) Raised Face (Drilled)
Test Pressure
Body: 30 Bar (Hyd.), Seat: 22 Bar (Hyd.), Seat: 7 Bar (Air)
Notes
Suitable for steam service with specialized PTFE.
Can be provided with Glass Filled PTFE, Graphite Blended PTFE & PEEK Seats on request.
Suitability
Water
Steam
Gas
Oil
Air
Material Combination
| S.No | Description | No. | Material | Specifications |
| 1 | Body | 1 | Cast Carbon Steel | ASTM A216 Gr. WCB |
| 2 | Seat Ring | 2 | PTFE | – |
| 3 | Stem Seal | 1 | PTFE | – |
| 4 | Ball (Hollow) | 1 | C.S.S. | AISI A 351 Gr. CF8 |
| 5 | Gland Packing | 1 | PTFE | – |
| 6 | Gland Flange | 1 | C.C.S | ASTM A 216 Gr. WCB |
| 7 | Stem | 1 | Stainless Steel | ASTM A 276 Type 304 |
| 8 | Lever Stopper | 1 | Stainless Steel | Type 202 |
| 9 | Lever (With PVC Sleeve) | 1 | C.C.S | ASTM A 216 Gr. WCB |
| 10, 11 | Lever Washer, Lever Bolt | 1 | Stainless Steel | Type 202 |
| 12 | Gasket | 1 | PTFE | – |
| 13 | Body / Connector Joint Nut | To Suit | HT Steel | ASTM A 194 Gr. 2H |
| 14 | Body / Connector Joint Stud | To Suit | Alloy Steel | ASTM A 194 Gr. B7 |
| 15 | Connector | 1 | C.C.S | ASTM A 216 Gr. WCB |
| 16 | Gland Flange Bolt | 2 | Alloy Steel | ASTM A 194 Gr. B7 |
| 17 | Gland Flange Nut | 2 | HT Steel | ASTM A 194 Gr. 2H |
Dimensional Data
| Size (mm) | FF | FT | ØRFD | ØFD | K | n | ØD | LL | H |
| 25 | 127 | 9.6 | 50.8 | 110 | 79.4 | 4 | 16 | 167 | 94 |
| 32 | 140 | 11.2 | 63.5 | 117 | 88.9 | 4 | 16 | 167 | 100 |
| 40 | 165 | 12.7 | 73 | 125 | 98.4 | 4 | 16 | 220 | 113 |
| 50 | 178 | 14.3 | 92.1 | 150 | 120.7 | 4 | 19 | 220 | 121 |
| 65 | 191 | 15.9 | 104.8 | 180 | 139.7 | 4 | 19 | 220 | 130 |
| 80 | 203 | 17.5 | 127 | 190 | 152.4 | 4 | 19 | 300 | 165 |
| 100 | 229 | 22.3 | 157.2 | 230 | 190.5 | 8 | 19 | 300 | 182 |
| 125 | 255 | 22.5 | 185.7 | 254 | 215.9 | 8 | 22 | 450 | 252 |
| 150 | 394 | 23.9 | 215.9 | 280 | 241.3 | 8 | 22 | 450 | 270 |
