Features
Type of Pattern
Right Angle Pattern
Body Material Cum Standard
Cast Carbon Steel (ASTM A216 Gr. WCB)
Product Description
Spring Loaded, Full Lift
Type of Seat
Renewable Seat
Type of Disc
Renewable Disc
Trim
13% Cr. (SS 410) + Stellited Facing
End Details
Inlet Flanged Ends as per ASME B16.5 Class-300, Outlet Flanged Ends as per ASME B16.5 Class-300
Test Pressure
Body: 700 Psig (Hyd.)
Max. Working Pressure
350 Psig (Steam)
Max. Working Temperature
400°C
Max. Set Pressure
350 Psig (Steam)
Notes
Test Certificate in Form III-C as per IBR is furnished with every supply.
Suitability
Water
Steam
Gas
Oil
Air
-
Material Combination
S.No Description No. Material Specifications 1, 4 Nozzle, Disc 1 S.S. / C.C.S. ASTM A 276 Type 410 / ASTM A 217 Gr. CA15 + Stellite 2 Regulating Ring 1 Bronze IBR 282 (a) (iv) Gr. B 3 Screw 1 Carbon Steel – 5 Body 1 C.C.S. ASTM A216 Gr. WCB CF1+- 2 6 Disc Guide 1 S.S. / C.C.S. ASTM A 276 Type 410 / ASTM A 217 Gr. CA15 7, 11 Lower/ Upper Spring Disc 1 Carbon Steel – 8 Studs & Nuts To Suit Carbon Steel – 9 Stem 1 Stainless Steel ASTM A 276 Type 410 10, 13 Spring, Adjusting Screw 1 Carbon Steel / S.S. IBR 307 to 314 / – 12 Yoke 1 C.C.S. ASTM A216 Gr. WCB 14 Pin 1 Steel – 15 Locking Nut 1 Steel – 16 Cap 1 C.C.S. ASTM A216 Gr. WCB 17 Nut 1 Carbon Steel – 18 Fulcrum 1 SG Iron – 19 Lever 4 SG Iron – -

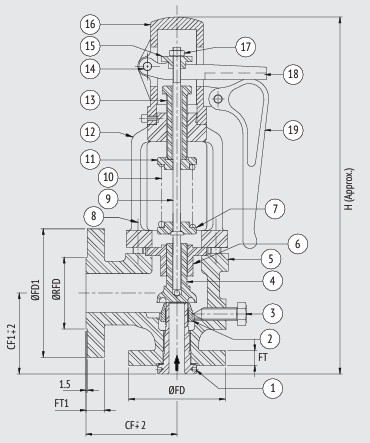

Dimensional Data
Size (mm) CF CF1 ØFD ØFD1 ØRFD FT FT1 25 x 50 108 83 125 165 92.1 17.9 22.7 40 x 80 127 120 155 210 127 21.1 29 50 x 100 150 157 165 255 157.2 22.7 32.2
Features
Type of Pattern
Right Angle Pattern
Body Material Cum Standard
Cast Carbon Steel (ASTM A216 Gr. WCB)
Product Description
Spring Loaded, Full Lift
Type of Seat
Renewable Seat
Type of Disc
Renewable Disc
Trim
13% Cr. (SS 410) + Stellited Facing
End Details
Inlet Flanged Ends as per ASME B16.5 Class-300, Outlet Flanged Ends as per ASME B16.5 Class-300
Test Pressure
Body: 700 Psig (Hyd.)
Max. Working Pressure
350 Psig (Steam)
Max. Working Temperature
400°C
Max. Set Pressure
350 Psig (Steam)
Type of Pattern
Right Angle Pattern
Body Material Cum Standard
Cast Carbon Steel (ASTM A216 Gr. WCB)
Product Description
Spring Loaded, Full Lift
Type of Seat
Renewable Seat
Type of Disc
Renewable Disc
Trim
13% Cr. (SS 410) + Stellited Facing
End Details
Inlet Flanged Ends as per ASME B16.5 Class-300, Outlet Flanged Ends as per ASME B16.5 Class-300
Test Pressure
Body: 700 Psig (Hyd.)
Max. Working Pressure
350 Psig (Steam)
Max. Working Temperature
400°C
Max. Set Pressure
350 Psig (Steam)
Notes
Test Certificate in Form III-C as per IBR is furnished with every supply.
Suitability
Water
Steam
Gas
Oil
Air
Material Combination
S.No
Description
No.
Material
Specifications
1, 4
Nozzle, Disc
1
S.S. / C.C.S.
ASTM A 276 Type 410 / ASTM A 217 Gr. CA15 + Stellite
2
Regulating Ring
1
Bronze
IBR 282 (a) (iv) Gr. B
3
Screw
1
Carbon Steel
–
5
Body
1
C.C.S.
ASTM A216 Gr. WCB CF1+- 2
6
Disc Guide
1
S.S. / C.C.S.
ASTM A 276 Type 410 / ASTM A 217 Gr. CA15
7, 11
Lower/ Upper Spring Disc
1
Carbon Steel
–
8
Studs & Nuts
To Suit
Carbon Steel
–
9
Stem
1
Stainless Steel
ASTM A 276 Type 410
10, 13
Spring, Adjusting Screw
1
Carbon Steel / S.S.
IBR 307 to 314 / –
12
Yoke
1
C.C.S.
ASTM A216 Gr. WCB
14
Pin
1
Steel
–
15
Locking Nut
1
Steel
–
16
Cap
1
C.C.S.
ASTM A216 Gr. WCB
17
Nut
1
Carbon Steel
–
18
Fulcrum
1
SG Iron
–
19
Lever
4
SG Iron
–
| S.No | Description | No. | Material | Specifications |
|---|---|---|---|---|
| 1, 4 | Nozzle, Disc | 1 | S.S. / C.C.S. | ASTM A 276 Type 410 / ASTM A 217 Gr. CA15 + Stellite |
| 2 | Regulating Ring | 1 | Bronze | IBR 282 (a) (iv) Gr. B |
| 3 | Screw | 1 | Carbon Steel | – |
| 5 | Body | 1 | C.C.S. | ASTM A216 Gr. WCB CF1+- 2 |
| 6 | Disc Guide | 1 | S.S. / C.C.S. | ASTM A 276 Type 410 / ASTM A 217 Gr. CA15 |
| 7, 11 | Lower/ Upper Spring Disc | 1 | Carbon Steel | – |
| 8 | Studs & Nuts | To Suit | Carbon Steel | – |
| 9 | Stem | 1 | Stainless Steel | ASTM A 276 Type 410 |
| 10, 13 | Spring, Adjusting Screw | 1 | Carbon Steel / S.S. | IBR 307 to 314 / – |
| 12 | Yoke | 1 | C.C.S. | ASTM A216 Gr. WCB |
| 14 | Pin | 1 | Steel | – |
| 15 | Locking Nut | 1 | Steel | – |
| 16 | Cap | 1 | C.C.S. | ASTM A216 Gr. WCB |
| 17 | Nut | 1 | Carbon Steel | – |
| 18 | Fulcrum | 1 | SG Iron | – |
| 19 | Lever | 4 | SG Iron | – |
Dimensional Data
Size (mm)
CF
CF1
ØFD
ØFD1
ØRFD
FT
FT1
25 x 50
108
83
125
165
92.1
17.9
22.7
40 x 80
127
120
155
210
127
21.1
29
50 x 100
150
157
165
255
157.2
22.7
32.2
| Size (mm) | CF | CF1 | ØFD | ØFD1 | ØRFD | FT | FT1 |
|---|---|---|---|---|---|---|---|
| 25 x 50 | 108 | 83 | 125 | 165 | 92.1 | 17.9 | 22.7 |
| 40 x 80 | 127 | 120 | 155 | 210 | 127 | 21.1 | 29 |
| 50 x 100 | 150 | 157 | 165 | 255 | 157.2 | 22.7 | 32.2 |
