IC-34 Investment Casting Stainless Steel (CF8) Union Cover Horizontal Lift Check Valve No.9, Screwed Ends, PN-25IBR Approved


  • IC-34 | Investment Casting Stainless Steel (CF8) Union Cover Horizontal Lift Check Valve No.9, Screwed Ends, PN-25
    Features

    Pressure / Class Rating

    PN-25

    Body Material Cum Standard

    Cast Stainless Steel (ASTM A351 Gr. CF8)

    Product Description

    Union Cover

    Type of Seat

    Integral Seat

    Type of Disc

    Renewable Guided Disc

    Trim

    Stainless Steel (Type 304)

    End Details

    Screwed Female BSP Parallel Threads (BS-21)

    Test Pressure

    Body: 545 Psig (Hyd.), Seat: 400 Psig (Hyd.)

    Application Medium

    Food Processing

    Notes

    Also available in CF8M (SS 316)
    Other screwed end specifications can be provided on request.


    Suitability

    Water

    Steam

    Gas

    Oil

    Air


  • Material Combination
    S.No Description No. Material Specifications
    1 Body 1 Cast Stainless Steel AISI A 351 Gr. CF8
    2 Disc (Guided) 1 Stainless Steel ASTM A 276 Type 304
    3 Gasket 1 PTFE
    4 Union Cover 1 Cast Stainless Steel AISI A 351 Gr. CF8
    IC-34 | Investment Casting Stainless Steel (CF8) Union Cover Horizontal Lift Check Valve No.9, Screwed Ends, PN-25

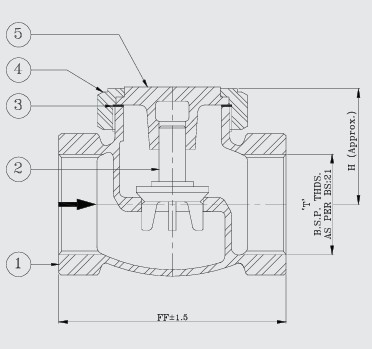

  • Dimensional Data
    Size (mm) Size (inches) FF H
    15 1/2” 70 45
    20 3/4” 85 55
    25 1” 95 65
    32 1.1/4” 110 70
    40 1.1/2” 118 75
    50 2” 145 90
  • IC-34 | Investment Casting Stainless Steel (CF8) Union Cover Horizontal Lift Check Valve No.9, Screwed Ends, PN-25
    Product Inquiry
Features

Pressure / Class Rating

PN-25

Body Material Cum Standard

Cast Stainless Steel (ASTM A351 Gr. CF8)

Product Description

Union Cover

Type of Seat

Integral Seat

Type of Disc

Renewable Guided Disc

Trim

Stainless Steel (Type 304)

End Details

Screwed Female BSP Parallel Threads (BS-21)

Test Pressure

Body: 545 Psig (Hyd.), Seat: 400 Psig (Hyd.)

Application Medium

Food Processing

Notes

Also available in CF8M (SS 316)
Other screwed end specifications can be provided on request.

Download PDF

Suitability

Water

Steam

Gas

Oil

Air


Material Combination
S.No Description No. Material Specifications
1 Body 1 Cast Stainless Steel AISI A 351 Gr. CF8
2 Disc (Guided) 1 Stainless Steel ASTM A 276 Type 304
3 Gasket 1 PTFE
4 Union Cover 1 Cast Stainless Steel AISI A 351 Gr. CF8
Dimensional Data
Size (mm) Size (inches) FF H
15 1/2” 70 45
20 3/4” 85 55
25 1” 95 65
32 1.1/4” 110 70
40 1.1/2” 118 75
50 2” 145 90
