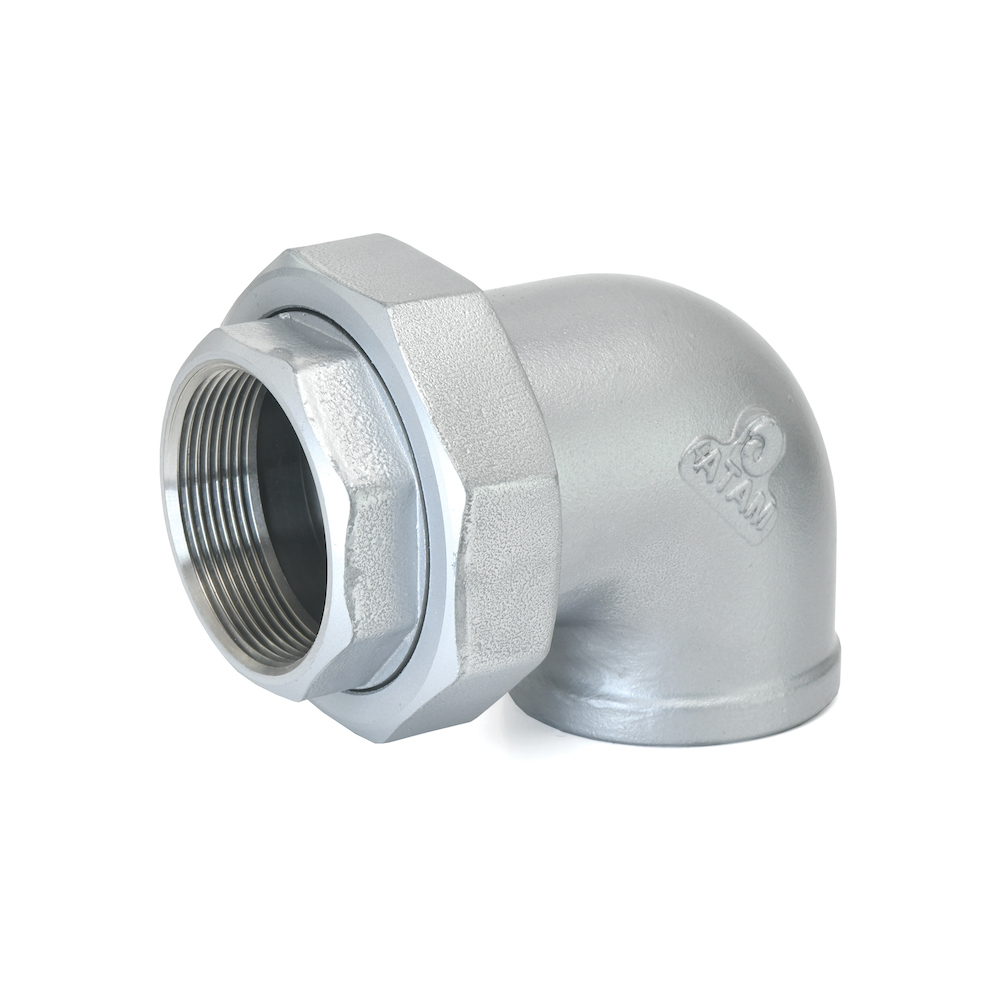

AV-536 AV-536 Stainless Steel Elbow Union, PN-25


  • AV-536 | AV-536 Stainless Steel Elbow Union, PN-25
    Features

    Threading

    BSP / NPT

    Grade

    CF8 (SS 304) / CF8M (SS 316)

    Tolerance

    ±1.5mm

    Pressure Rating

    PN-25 (Hyd. 30kg)

    Max. Working Pressure

    356 Psig

    Application Medium

    Food Processing

    Notes

    Also available in CF8M (SS 316)


    Suitability

    Water

    Steam

    Gas

    Oil

    Air


  • Material Combination
    AV-536 | AV-536 Stainless Steel Elbow Union, PN-25
  • Dimensional Data

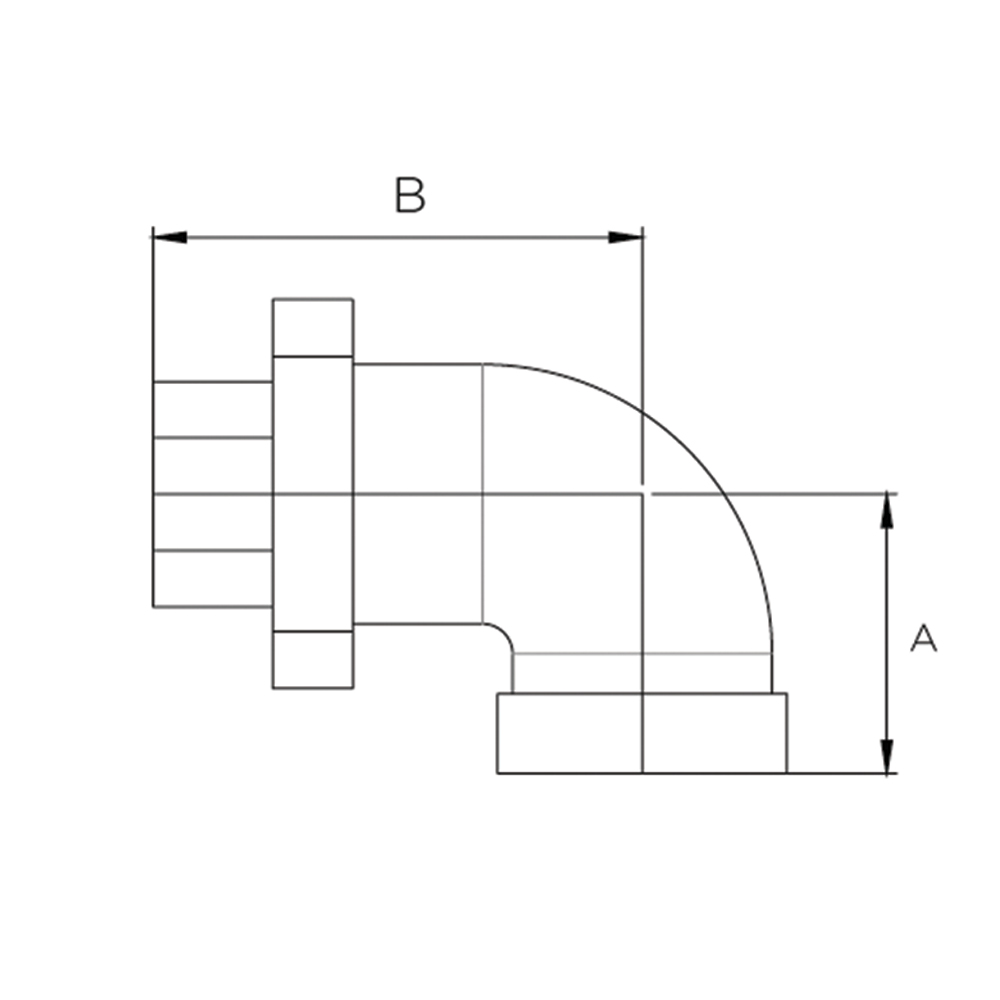

    Size A B
    3/8” 28 59
    1/2” 32 63
    3/4” 37 70
    1” 44 70
    1-1/4” 48 77
    1-1/2” 57 82
    2” 60 98
  • AV-536 | AV-536 Stainless Steel Elbow Union, PN-25
    Product Inquiry
Features

Threading

BSP / NPT

Grade

CF8 (SS 304) / CF8M (SS 316)

Tolerance

±1.5mm

Pressure Rating

PN-25 (Hyd. 30kg)

Max. Working Pressure

356 Psig

Application Medium

Food Processing

Notes

Also available in CF8M (SS 316)

Download PDF

Suitability

Water

Steam

Gas

Oil

Air


Dimensional Data
Size A B
3/8” 28 59
1/2” 32 63
3/4” 37 70
1” 44 70
1-1/4” 48 77
1-1/2” 57 82
2” 60 98
