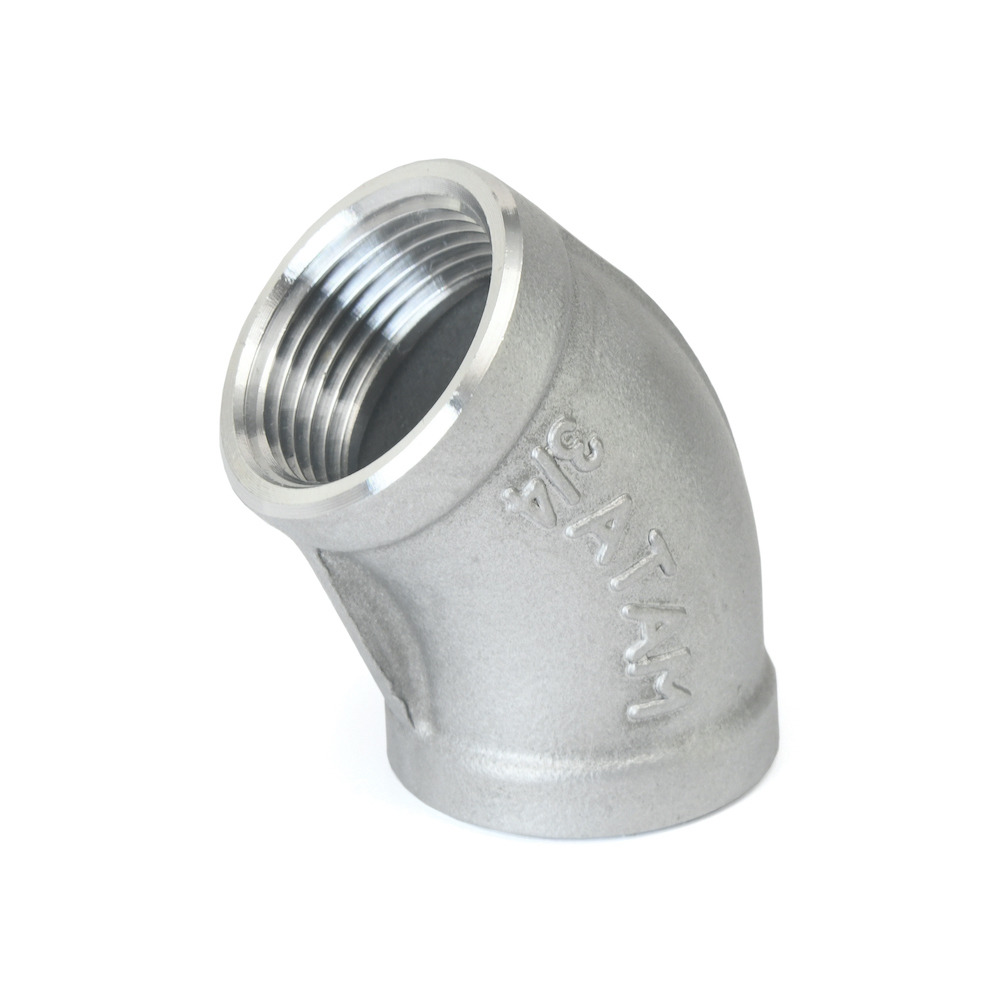

AV-545 AV-545 Stainless Steel Elbow 45˚, PN-25


  • AV-545 | AV-545 Stainless Steel Elbow 45˚, PN-25
    Features

    Threading

    BSP / NPT

    Grade

    CF8 (SS 304) / CF8M (SS 316)

    Tolerance

    ±1.5mm

    Pressure Rating

    PN-25 (Hyd. 30kg)

    Max. Working Pressure

    356 Psig

    Application Medium

    Food Processing

    Notes

    Also available in CF8M (SS 316)


    Suitability

    Water

    Steam

    Gas

    Oil

    Air


  • Material Combination
    AV-545 | AV-545 Stainless Steel Elbow 45˚, PN-25

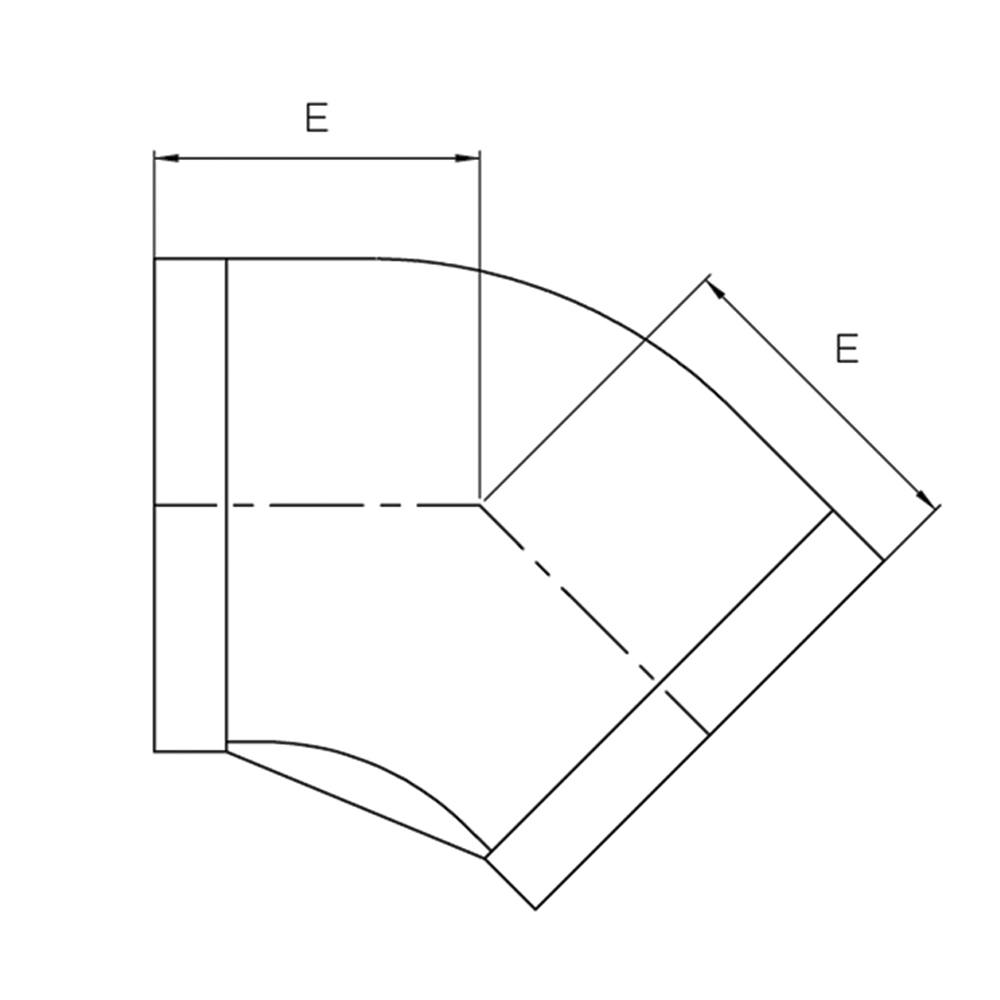

  • Dimensional Data
    Size E
    1/4” 17
    3/8” 19
    1/2” 21
    3/4” 25
    1” 29
    1.1/4” 33
    1.1/2” 37
    2” 42
    2.1/2” 49
    3” 54
    4” 64
  • AV-545 | AV-545 Stainless Steel Elbow 45˚, PN-25
    Product Inquiry
Features

Threading

BSP / NPT

Grade

CF8 (SS 304) / CF8M (SS 316)

Tolerance

±1.5mm

Pressure Rating

PN-25 (Hyd. 30kg)

Max. Working Pressure

356 Psig

Application Medium

Food Processing

Notes

Also available in CF8M (SS 316)

Download PDF

Suitability

Water

Steam

Gas

Oil

Air


Dimensional Data
Size E
1/4” 17
3/8” 19
1/2” 21
3/4” 25
1” 29
1.1/4” 33
1.1/2” 37
2” 42
2.1/2” 49
3” 54
4” 64
