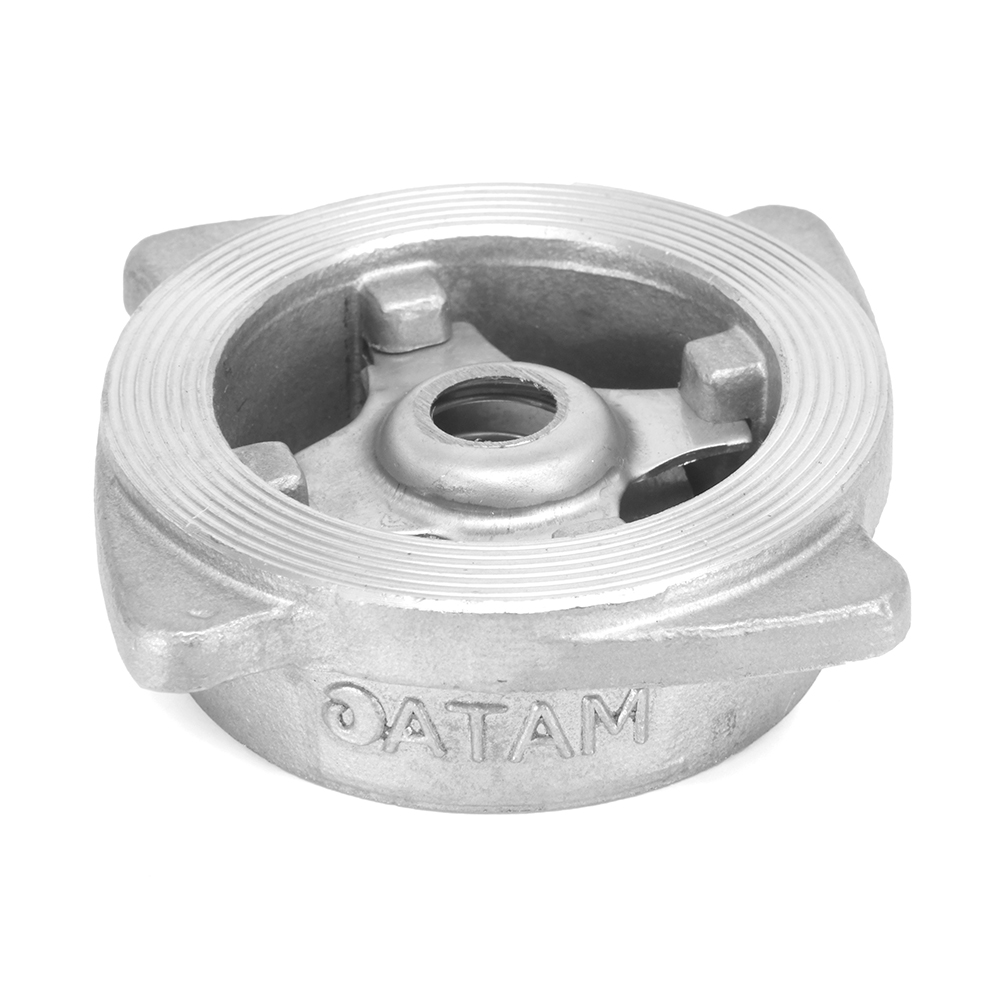

AV-268 Investment Casting Stainless Steel (CF8) Non Slam Check Valve, PN-10/16, Class-150


  • AV-268 | Investment Casting Stainless Steel (CF8) Non Slam Check Valve, PN-10/16, Class-150
    Features

    Body Material Cum Standard

    Cast Stainless Steel (ASTM A351 Gr. CF8)

    Product Description

    Spring Loaded

    Trim

    Stainless Steel (AISI 304)

    End Details

    Suitable for insertion between Flanges as per ANSI B16.5 Class-150, BSEN 1092-1 PN-10/PN-16/ BS-10 TABLE-E/F

    Test Pressure

    Body: 24 Bar (Hyd.), Seat: 17.6 Bar (Hyd.)


    Suitability

    Water

    Steam

    Gas

    Oil

    Air


  • Material Combination
    S.No Description No. Material Specifications
    1 Spring Cover 1 Stainless Steel AISI 304
    2 Spring 1 Stainless Steel
    3 Body 1 Cast Stainless Steel ASTM A 351 Gr. CF8
    4 Disc 1 Stainless Steel AISI 304
    AV-268 | Investment Casting Stainless Steel (CF8) Non Slam Check Valve, PN-10/16, Class-150

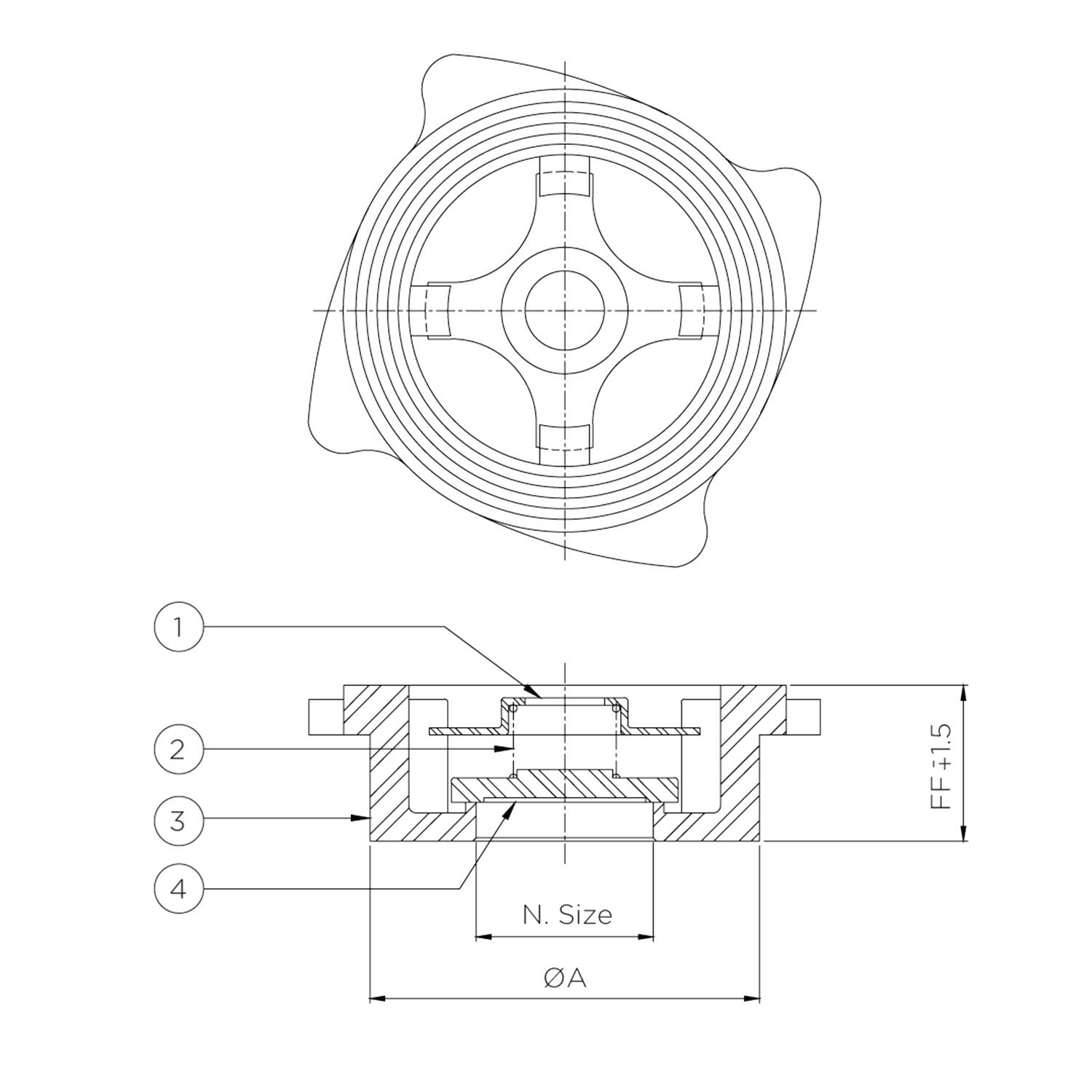

  • Dimensional Data
    Size (mm) Size (inches) FF A
    15 1/2” 16 38
    20 3/4” 20 47
    25 1” 22 54
    40 1.1/2” 32 76
    50 2” 40 93
    80 3” 65 100
    100 4” 70 107
