AV-238 Bronze Sight Flow indicator, Screwed EndsIBR Approved


  • AV-238 | Bronze Sight Flow indicator, Screwed Ends
    Features

    Body Material Cum Standard

    Bronze (IBR 282 (a) (iv) Gr. B)

    Product Description

    Single Window with Toughened Glass

    Trim

    Cu-Alloy

    End Details

    Screwed Female BSP Taper Threads (BS-21)

    Test Pressure

    Body: 500 Psig (Hyd.)

    Max. Working Pressure

    250 Psig (Steam)

    Max. Working Temperature

    225°C

    Notes

    Test Certificate in Form III-C as per IBR is furnished with every supply.


    Suitability

    Water

    Steam

    Gas

    Oil

    Air


  • Material Combination
    S.No Description No. Material Specifications
    1 Cover 1 Bronze IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K
    2 Gasket 1 C.A.F. IS 2712
    3 Glass 1 Toughened
    4 Body 1 Bronze IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K
    AV-238 | Bronze Sight Flow indicator, Screwed Ends

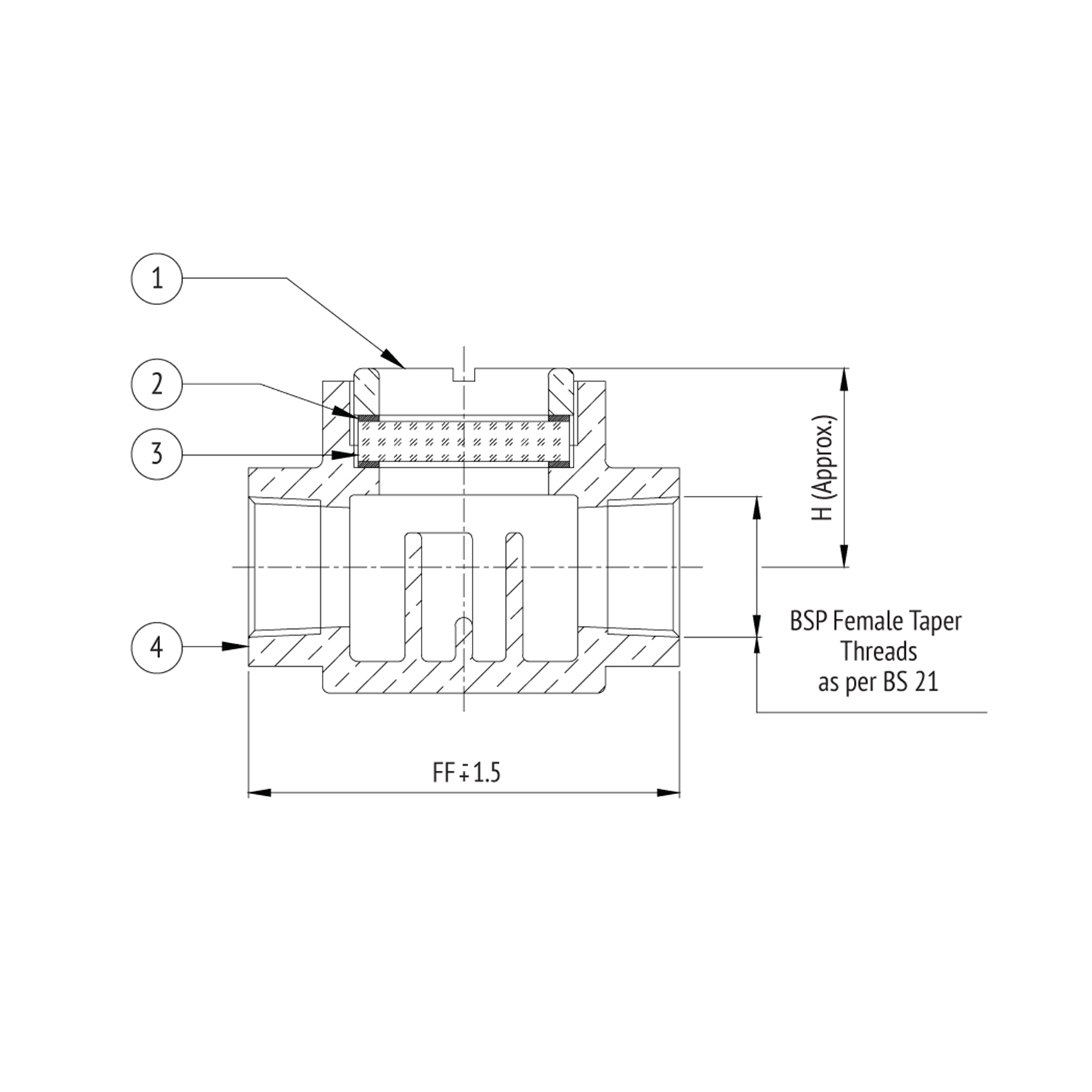

  • Dimensional Data
    Size (mm) FF H T
    15 89 40 1/2”
    20 92 42 3/4”
    25 102 47 1”
    32 105 52 1.1/4”
    40 110 55 1.1/2”
    50 115 62 2”
  • AV-238 | Bronze Sight Flow indicator, Screwed Ends
    Product Inquiry
Features

Body Material Cum Standard

Bronze (IBR 282 (a) (iv) Gr. B)

Product Description

Single Window with Toughened Glass

Trim

Cu-Alloy

End Details

Screwed Female BSP Taper Threads (BS-21)

Test Pressure

Body: 500 Psig (Hyd.)

Max. Working Pressure

250 Psig (Steam)

Max. Working Temperature

225°C

Notes

Test Certificate in Form III-C as per IBR is furnished with every supply.

Download PDF

Suitability

Water

Steam

Gas

Oil

Air


Material Combination
S.No Description No. Material Specifications
1 Cover 1 Bronze IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K
2 Gasket 1 C.A.F. IS 2712
3 Glass 1 Toughened
4 Body 1 Bronze IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K
Dimensional Data
Size (mm) FF H T
15 89 40 1/2”
20 92 42 3/4”
25 102 47 1”
32 105 52 1.1/4”
40 110 55 1.1/2”
50 115 62 2”

Selected Product

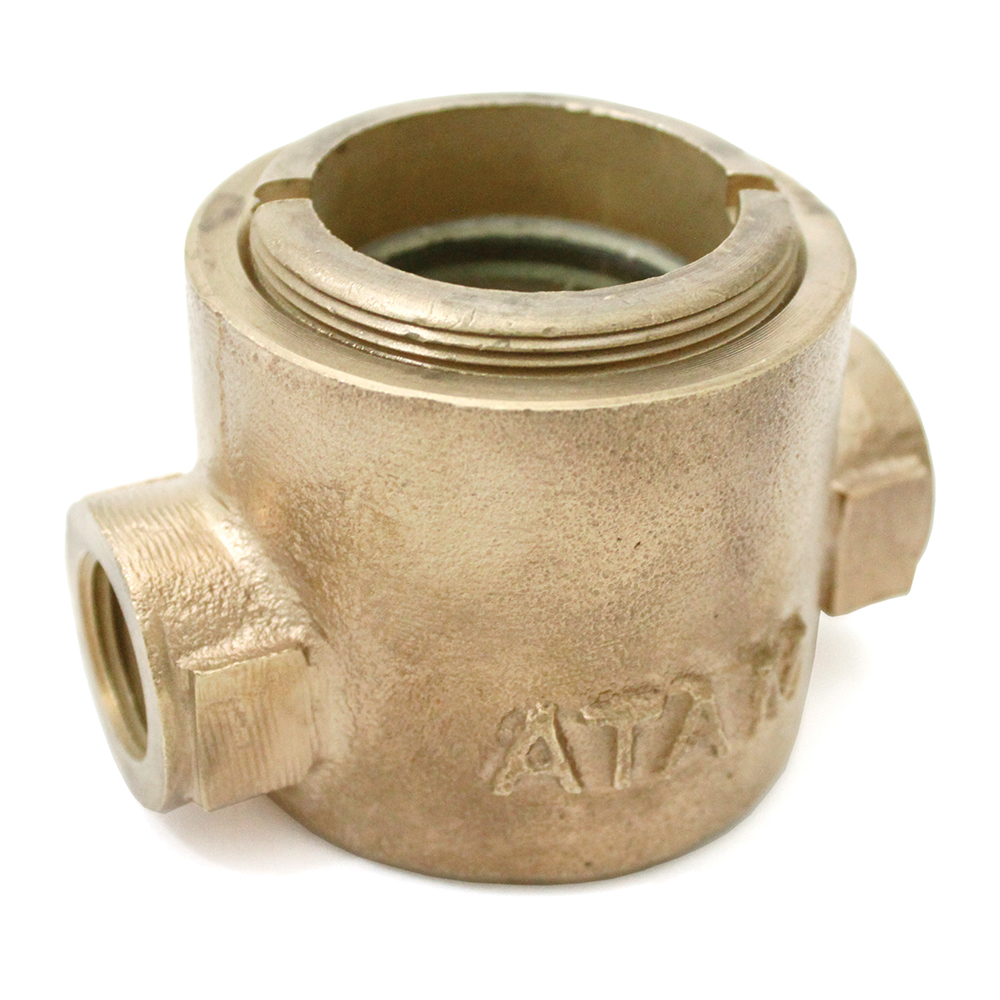

AV-238 Bronze Sight Flow indicator, Screwed Ends
