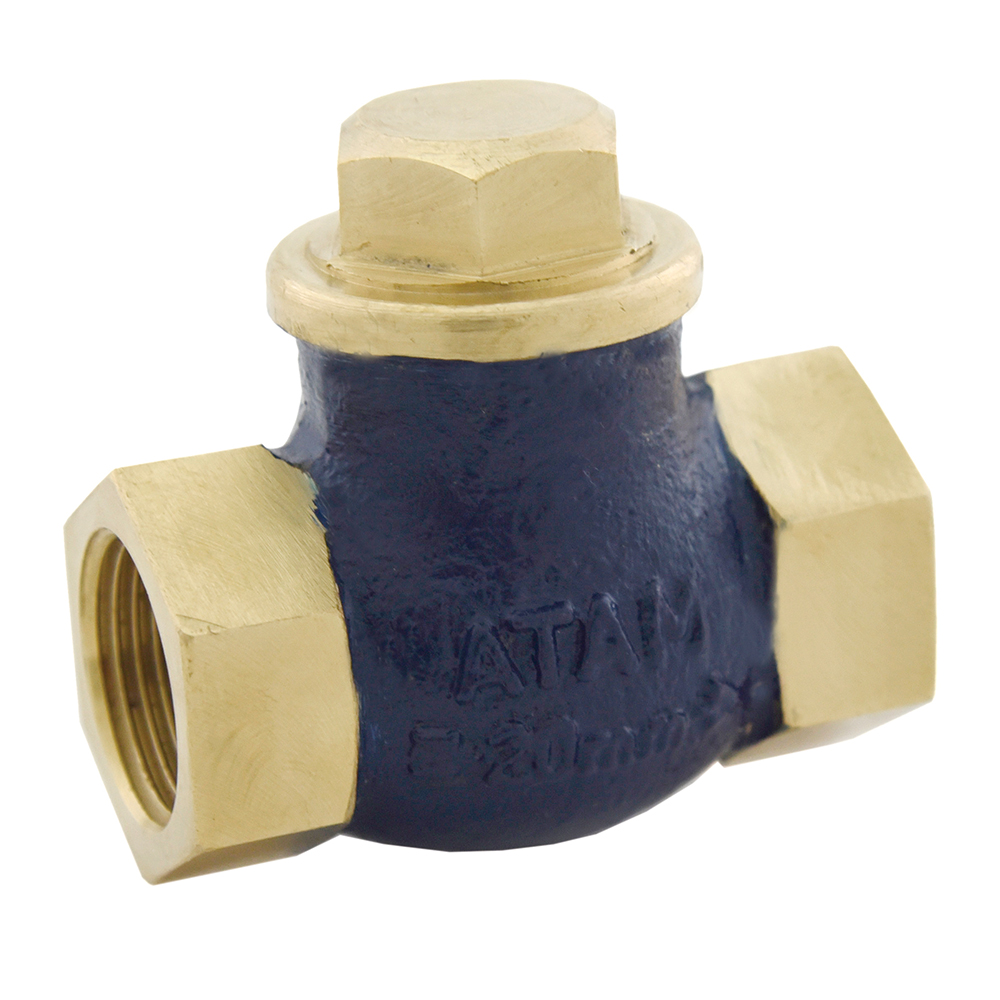

AV-115 Bronze Horizontal Lift Check Valve, Screwed Ends, Class-2ISI Marked


  • AV-115 | Bronze Horizontal Lift Check Valve, Screwed Ends, Class-2
    Features

    Product Standard

    IS-778

    Testing Standard

    IS-778

    Pressure / Class Rating

    Class-2

    Body Material Cum Standard

    Bronze (IS 318 Gr. LTB2)

    Product Description

    Screwed in Cover, Guided Disc

    Type of Seat

    Integral Seat

    Type of Disc

    Renewable Disc

    Trim

    Cu-Alloy

    End Details

    Screwed Female Parallel Threads (IS:554)

    Test Pressure

    Body: 2.4 Mpa (Hyd.), Seat: 1.6 Mpa (Hyd.)

    Max. Working Temperature

    45°C

    Notes

    Other screwed end specifications can be provided on request.


    Suitability

    Water

    Steam

    Gas

    Oil

    Air


  • Material Combination
    S.No Description No. Material Specifications
    1 Body 1 Bronze IS 318 Gr. LTB2
    2 Disc 1 Bronze IS 318 Gr. LTB2
    3 Cover 1 Bronze IS 318 Gr. LTB2

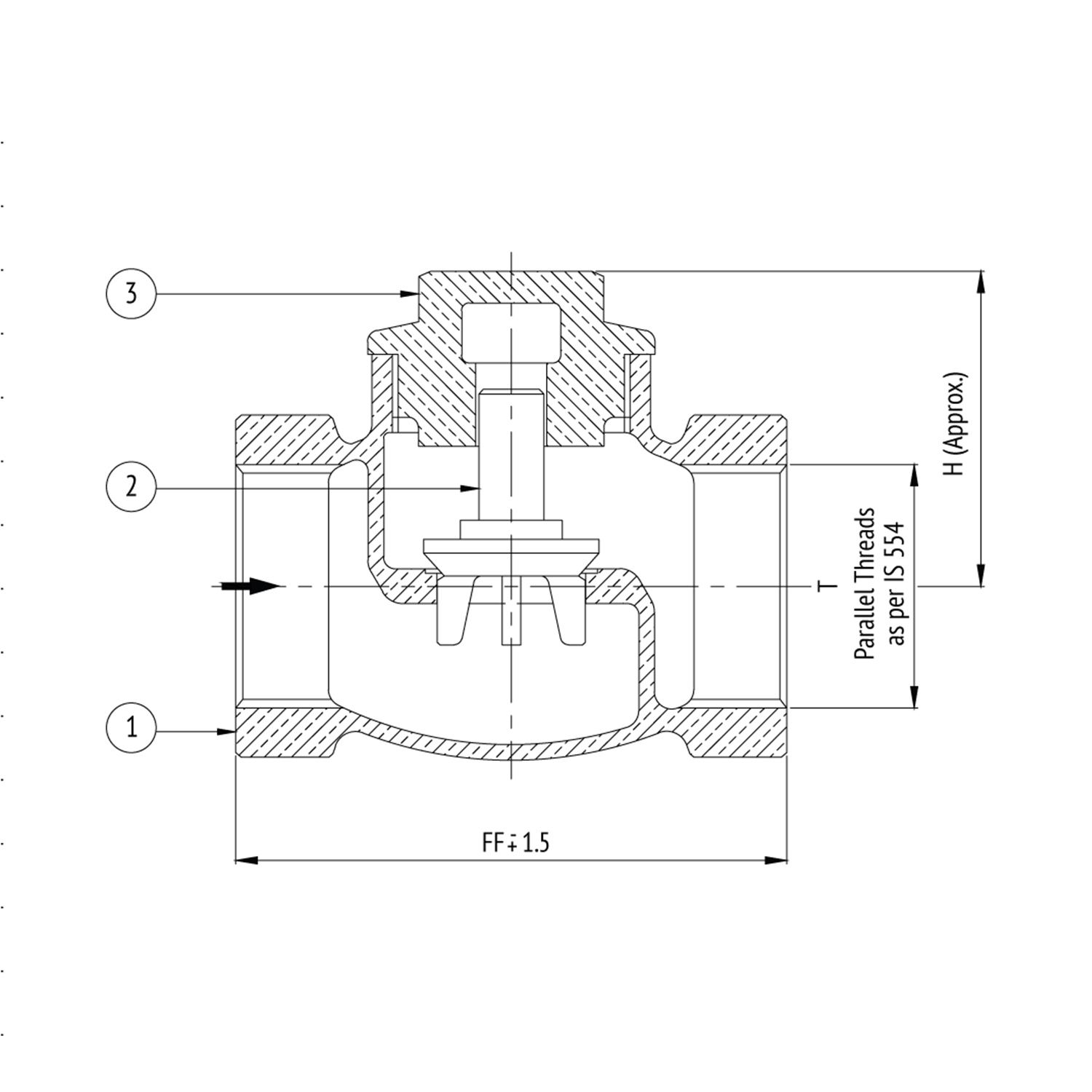

    AV-115 | Bronze Horizontal Lift Check Valve, Screwed Ends, Class-2
  • Dimensional Data
    Size (mm) FF T H
    15 60 1/2” 40
    20 70 3/4” 47
    25 80 1” 55
    32 95 1.1/4” 60
    40 110 1.1/2” 65
    50 125 2” 80
    65 160 2.1/2” 90
    80 180 3” 100
    100 216 4” 130
  • AV-115 | Bronze Horizontal Lift Check Valve, Screwed Ends, Class-2
    Product Inquiry
Features

Product Standard

IS-778

Testing Standard

IS-778

Pressure / Class Rating

Class-2

Body Material Cum Standard

Bronze (IS 318 Gr. LTB2)

Product Description

Screwed in Cover, Guided Disc

Type of Seat

Integral Seat

Type of Disc

Renewable Disc

Trim

Cu-Alloy

End Details

Screwed Female Parallel Threads (IS:554)

Test Pressure

Body: 2.4 Mpa (Hyd.), Seat: 1.6 Mpa (Hyd.)

Max. Working Temperature

45°C

Notes

Other screwed end specifications can be provided on request.

Download PDF

Suitability

Water

Steam

Gas

Oil

Air


Material Combination
S.No Description No. Material Specifications
1 Body 1 Bronze IS 318 Gr. LTB2
2 Disc 1 Bronze IS 318 Gr. LTB2
3 Cover 1 Bronze IS 318 Gr. LTB2
Dimensional Data
Size (mm) FF T H
15 60 1/2” 40
20 70 3/4” 47
25 80 1” 55
32 95 1.1/4” 60
40 110 1.1/2” 65
50 125 2” 80
65 160 2.1/2” 90
80 180 3” 100
100 216 4” 130
