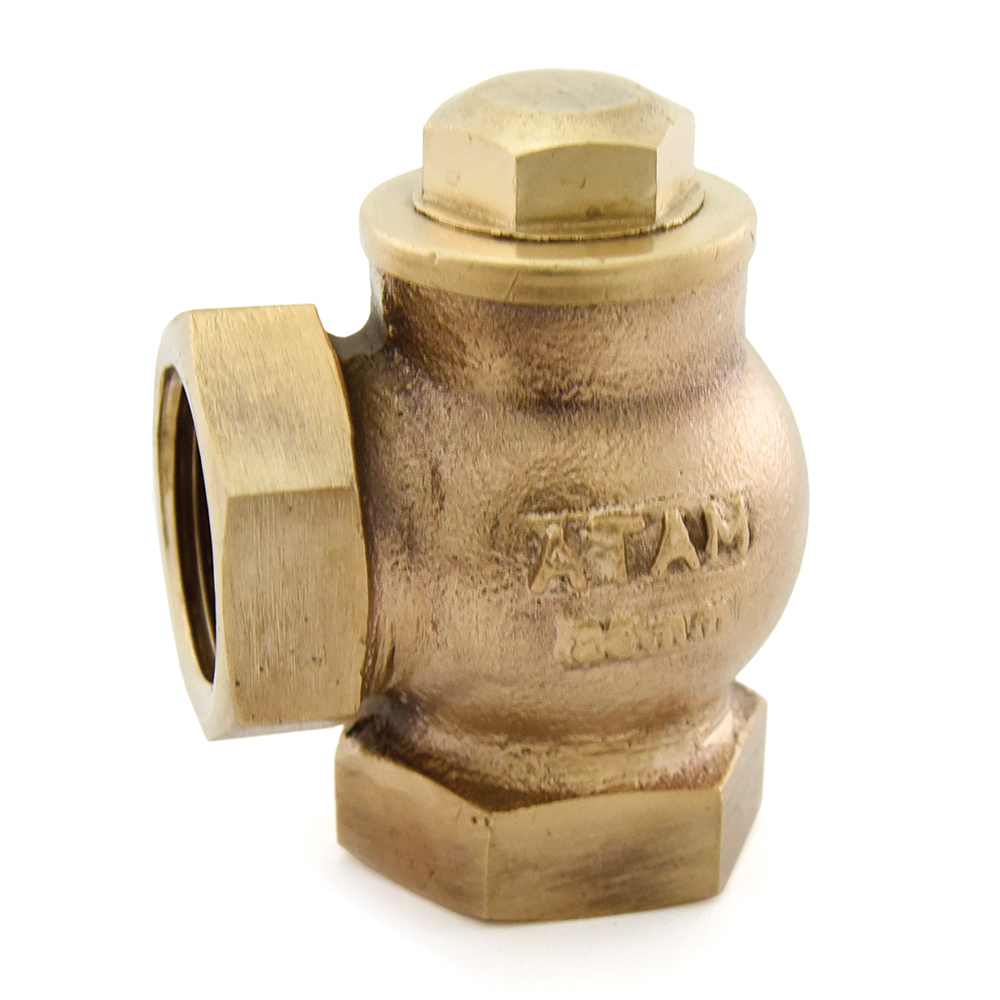

AV-26 Bronze Angle Check Valve, Screwed Ends, PN-16


  • AV-26 | Bronze Angle Check Valve, Screwed Ends, PN-16
    Features

    Type of Pattern

    Right Angle Pattern

    Product Standard

    BS-5154

    Testing Standard

    BS EN 12266-Part 1

    Pressure / Class Rating

    PN-16

    Body Material Cum Standard

    Bronze (BS EN 1982 Gr. CC491K)

    Product Description

    Screwed in Cover, Vertical Lift

    Type of Seat

    Integral Seat

    Trim

    Cu-Alloy

    End Details

    Screwed Female BSP Parallel Threads (BS-21)

    Test Pressure

    Body: 348 Psig (Hyd.), Seat: 255 Psig (Hyd.)

    Notes

    Other screwed end specifications can be provided on request.


    Suitability

    Water

    Steam

    Gas

    Oil

    Air


  • Material Combination
    S.No Description No. Material Specifications
    1 Body 1 Bronze BSEN 1982 Gr. CC491K
    2 Disc 1 Bronze BSEN 1982 Gr. CC491K
    3 Cover 1 Bronze BSEN 1982 Gr. CC491K
    AV-26 | Bronze Angle Check Valve, Screwed Ends, PN-16

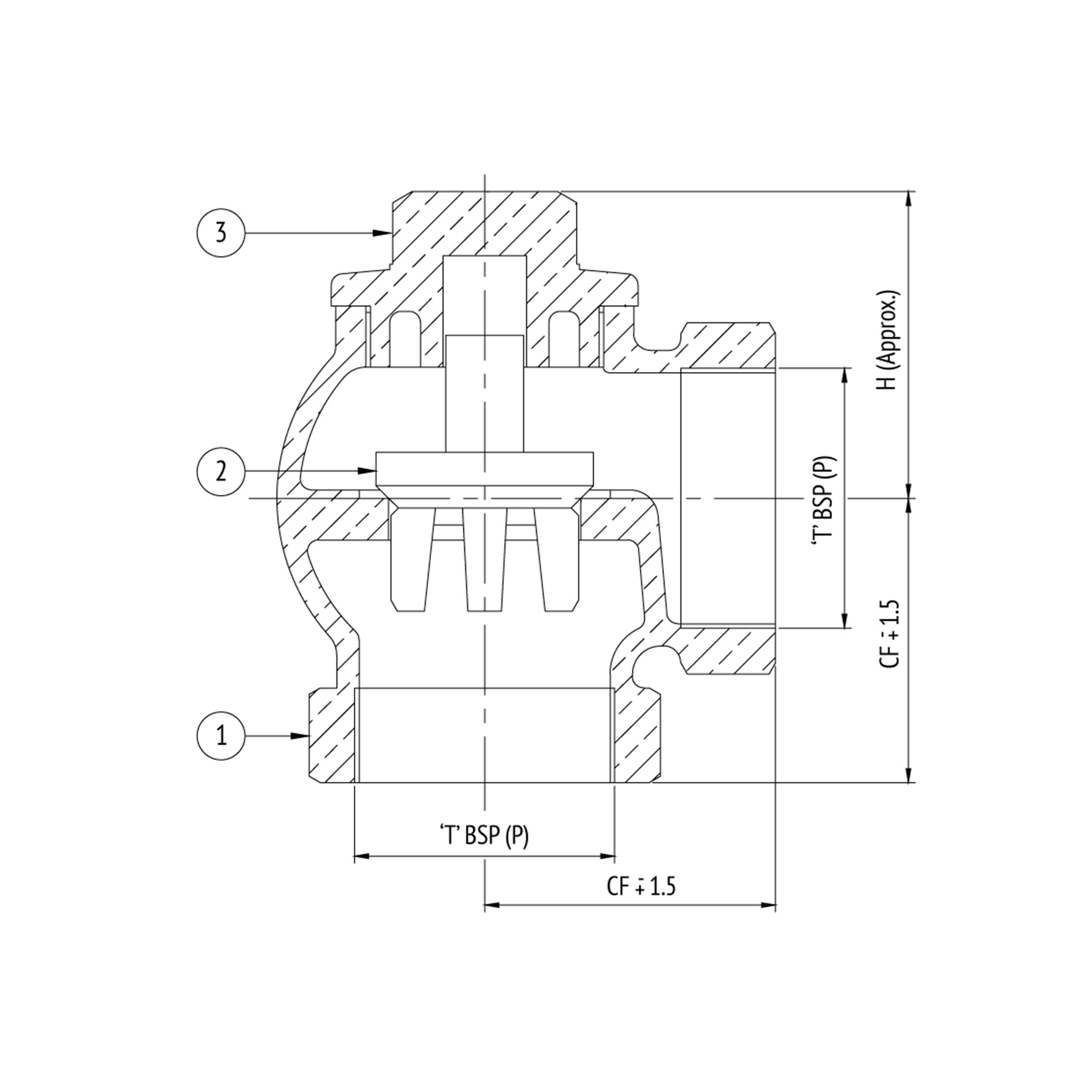

  • Dimensional Data
    Size (mm) CF +- 1.5 T H
    15 27 1/2” 32
    20 32 3/4” 36
    25 38 1” 42
    32 46 1.1/4” 53
    40 51 1.1/2” 56
    50 58 2” 68
  • AV-26 | Bronze Angle Check Valve, Screwed Ends, PN-16
    Product Inquiry
Features

Type of Pattern

Right Angle Pattern

Product Standard

BS-5154

Testing Standard

BS EN 12266-Part 1

Pressure / Class Rating

PN-16

Body Material Cum Standard

Bronze (BS EN 1982 Gr. CC491K)

Product Description

Screwed in Cover, Vertical Lift

Type of Seat

Integral Seat

Trim

Cu-Alloy

End Details

Screwed Female BSP Parallel Threads (BS-21)

Test Pressure

Body: 348 Psig (Hyd.), Seat: 255 Psig (Hyd.)

Notes

Other screwed end specifications can be provided on request.

Download PDF

Suitability

Water

Steam

Gas

Oil

Air


Material Combination
S.No Description No. Material Specifications
1 Body 1 Bronze BSEN 1982 Gr. CC491K
2 Disc 1 Bronze BSEN 1982 Gr. CC491K
3 Cover 1 Bronze BSEN 1982 Gr. CC491K
Dimensional Data
Size (mm) CF +- 1.5 T H
15 27 1/2” 32
20 32 3/4” 36
25 38 1” 42
32 46 1.1/4” 53
40 51 1.1/2” 56
50 58 2” 68
