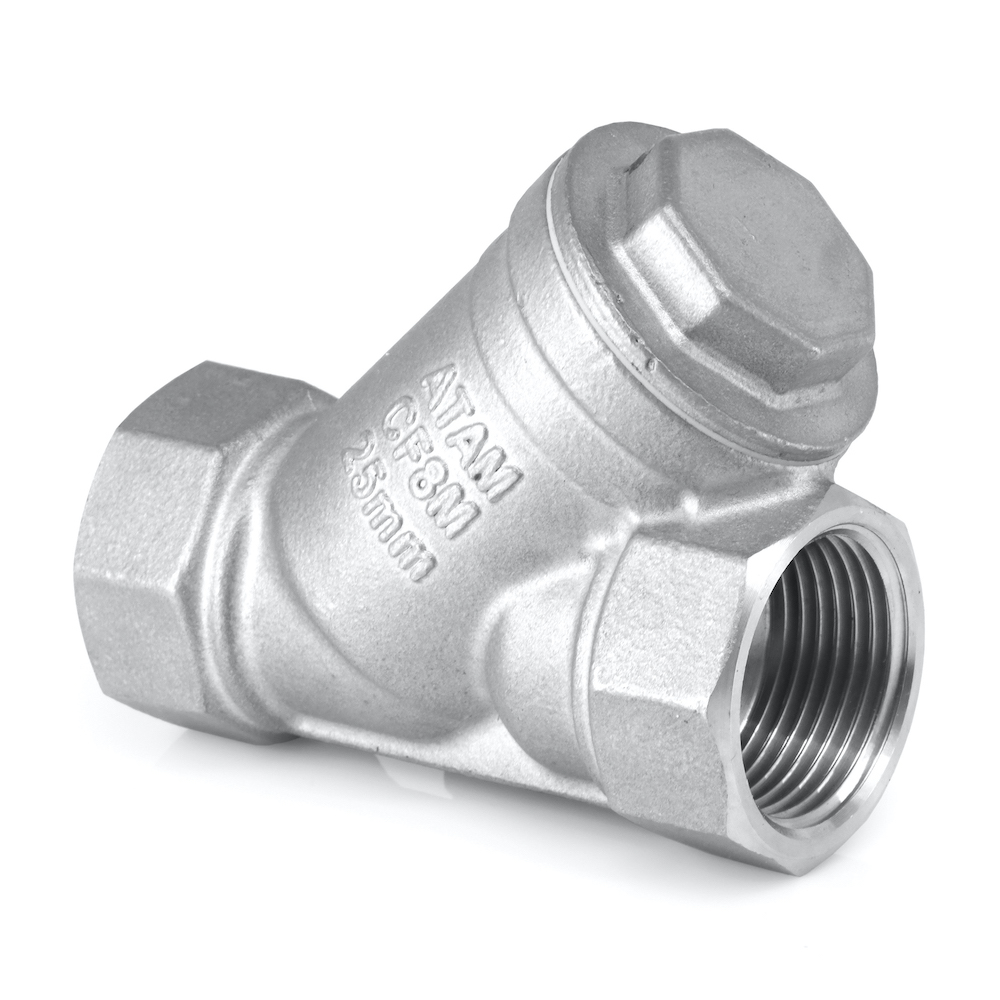

IC-14 Investment Casting Stainless Steel (CF8) Y-Type Strainer, Screwed Ends, PN-20IBR Approved


  • IC-14 | Investment Casting Stainless Steel (CF8) Y-Type Strainer, Screwed Ends, PN-20
    Features

    Pressure / Class Rating

    PN-20

    Body Material Cum Standard

    Cast Stainless Steel (ASTM A351 Gr. CF8)

    Product Description

    Y-Type with Drain Plug

    Trim

    Screen: Stainless Steel (Type 304)

    End Details

    Screwed Female BSP Parallel Threads (BS-21)

    Test Pressure

    Body: 435 Psig (Hyd.)

    Application Medium

    Food Processing

    Notes

    Also available in CF8M (SS 316)
    Other screwed end specifications can be provided on request.


    Suitability

    Water

    Steam

    Gas

    Oil

    Air


  • Material Combination
    S.No Description No. Material Specifications
    1 Body 1 Cast Stainless Steel ASTM A 351 Gr. CF8
    2 Screen 1 Stainless Steel ASTM A 276 Type 304
    3 Gasket 1 PTFE
    4 Cover 1 Cast Stainless Steel ASTM A 351 Gr. CF8
    5 Drain Plug 1 Cast Stainless Steel ASTM A 351 Gr. CF8
    IC-14 | Investment Casting Stainless Steel (CF8) Y-Type Strainer, Screwed Ends, PN-20

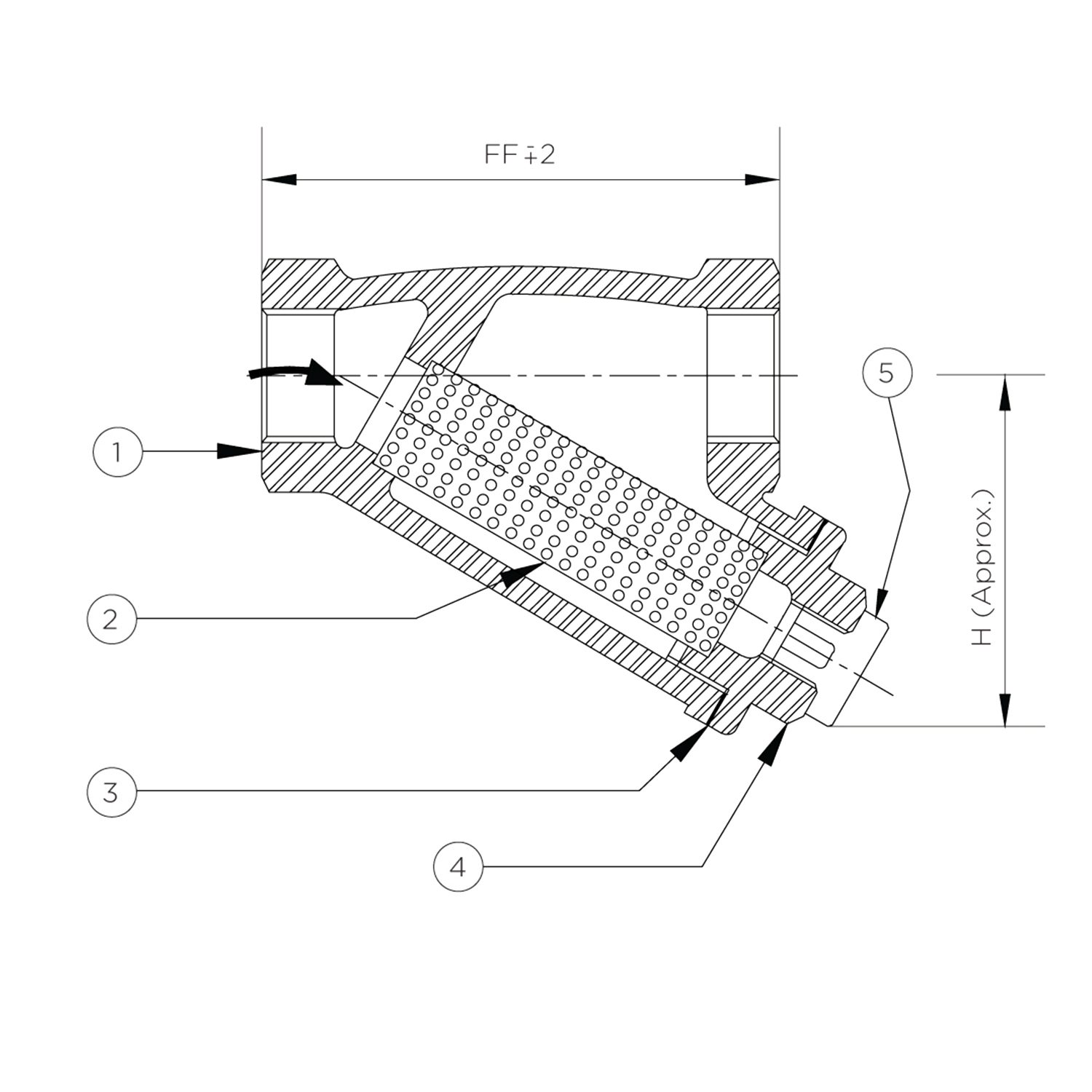

  • Dimensional Data
    Size (mm) Size (inches) FF H
    15 1/2” 76 53
    20 3/4” 80 53
    25 1” 95 65
    32 1.1/4” 110 70
    40 1.1/2” 130 78
    50 2” 150 98
  • IC-14 | Investment Casting Stainless Steel (CF8) Y-Type Strainer, Screwed Ends, PN-20
    Product Inquiry
Features

Pressure / Class Rating

PN-20

Body Material Cum Standard

Cast Stainless Steel (ASTM A351 Gr. CF8)

Product Description

Y-Type with Drain Plug

Trim

Screen: Stainless Steel (Type 304)

End Details

Screwed Female BSP Parallel Threads (BS-21)

Test Pressure

Body: 435 Psig (Hyd.)

Application Medium

Food Processing

Notes

Also available in CF8M (SS 316)
Other screwed end specifications can be provided on request.

Download PDF

Suitability

Water

Steam

Gas

Oil

Air


Material Combination
S.No Description No. Material Specifications
1 Body 1 Cast Stainless Steel ASTM A 351 Gr. CF8
2 Screen 1 Stainless Steel ASTM A 276 Type 304
3 Gasket 1 PTFE
4 Cover 1 Cast Stainless Steel ASTM A 351 Gr. CF8
5 Drain Plug 1 Cast Stainless Steel ASTM A 351 Gr. CF8
Dimensional Data
Size (mm) Size (inches) FF H
15 1/2” 76 53
20 3/4” 80 53
25 1” 95 65
32 1.1/4” 110 70
40 1.1/2” 130 78
50 2” 150 98
