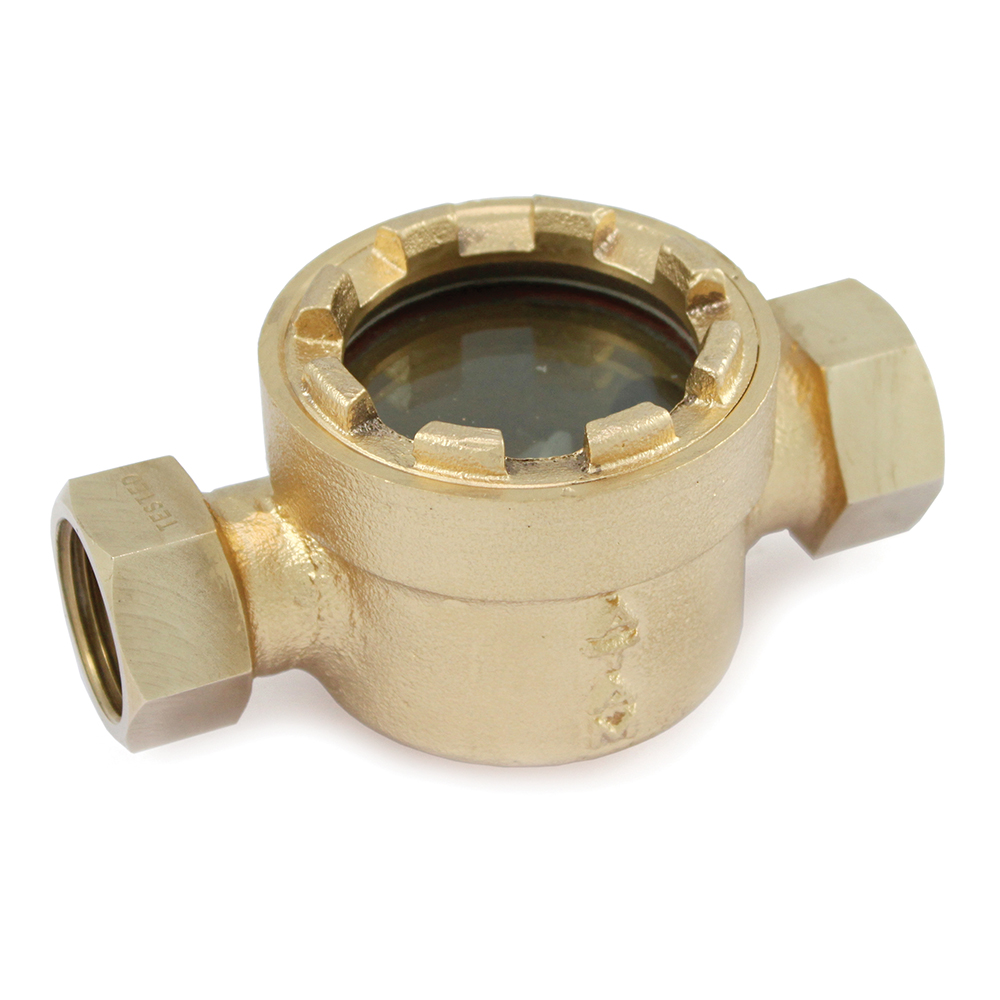

AV-32 Bronze Sight Flow Indicator, Screwed Ends

AV-32 | Bronze Sight Flow Indicator, Screwed Ends

Features

Body Material Cum Standard

Bronze (BS EN 1982 Gr. CC491K)

Product Description

Single Window with Toughened Glass & Moving Impeller

End Details

Screwed Female BSP Parallel Threads (BS-21)

Test Pressure

Body: 300 Psig (Hyd.)

Max. Working Pressure

150 Psig (Hyd.)

Notes

Other screwed end specifications can be provided on request.

Suitability

Water

Steam

Gas

Oil

Air

Download PDF Product Inquiry

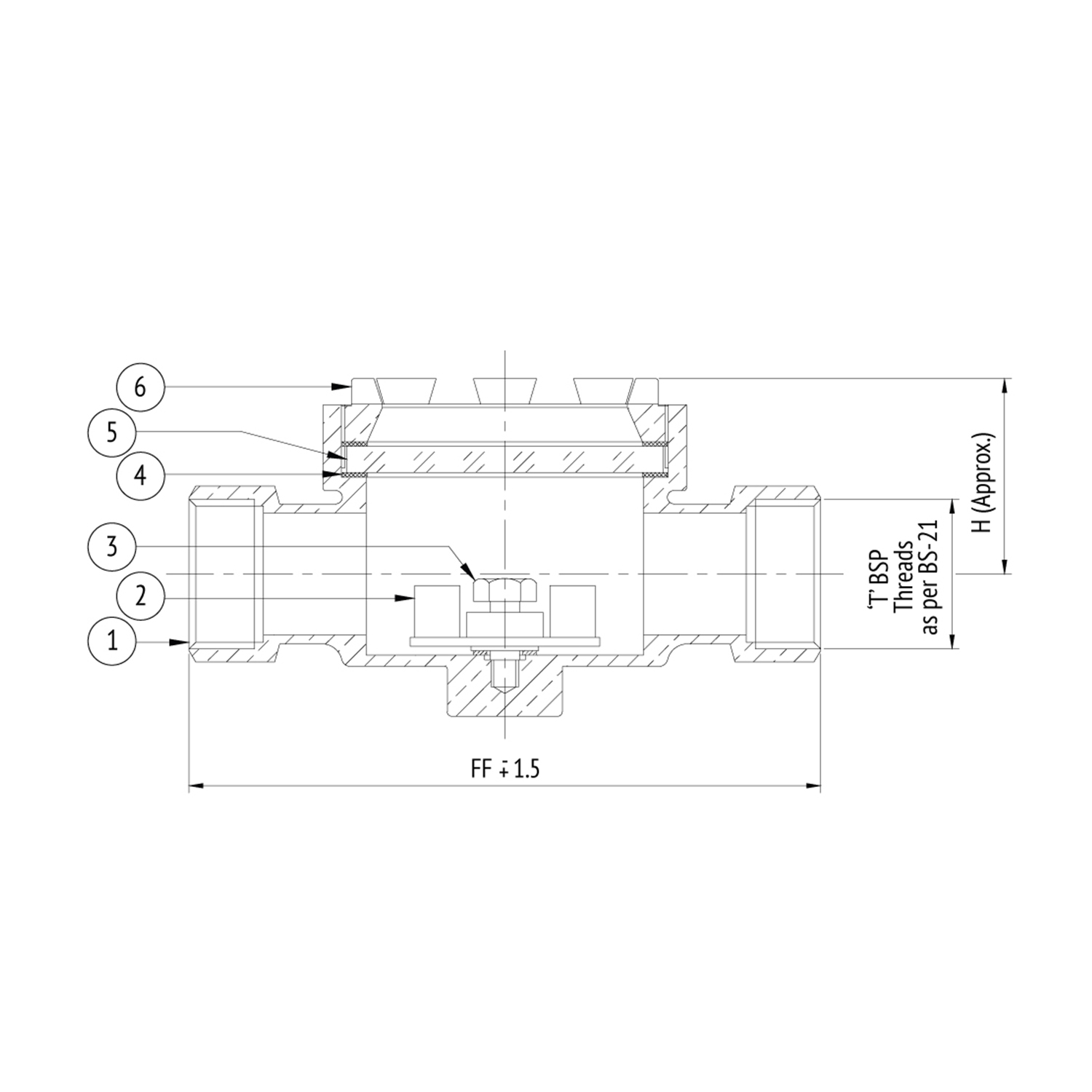

Material Combination

S.No	Description	No.	Material	Specifications
1	Body	1	Bronze	BSEN 1982 Gr. CC491K
2	Impeller	1	Plastic	–
3	Bolt	1	Brass	–
4	Gasket	2	C.A.F.	BS 1832
5	Window	1	Glass	Toughened
6	Cover	1	Bronze	BSEN 1982 Gr. CC491K

Download PDF Product Inquiry

Dimensional Data

Size (mm) FF T H

15 105 1/2” 34

20 105 3/4” 34

25 140 1” 43

40 165 1.1/2” 51

Download PDF Product Inquiry
