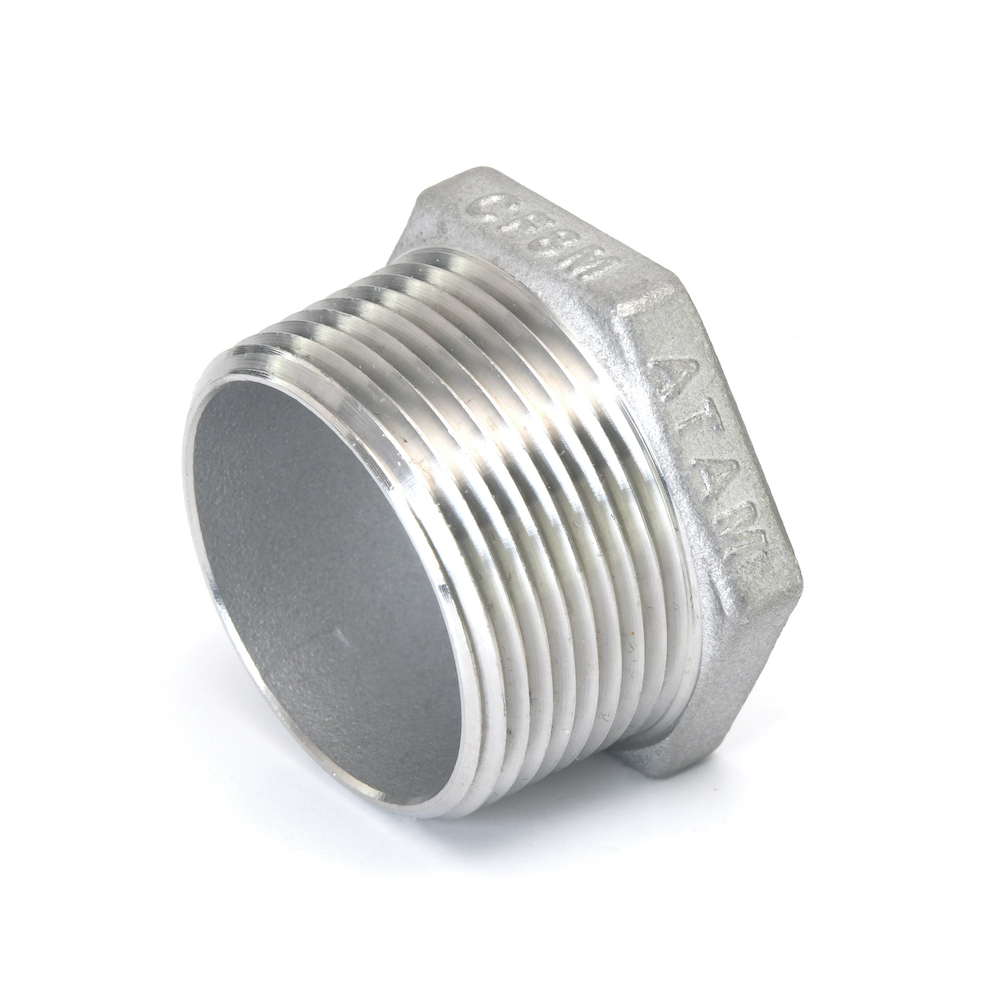

AV-546 Stainless Steel Hex Head Plug, PN-20

AV-546 | Stainless Steel Hex Head Plug, PN-20

Features

Threading

BSP / NPT

Grade

CF8 (SS 304) / CF8M (SS 316)

Tolerance

±1.5mm

Pressure Rating

PN-20 (Hyd. 30kg)

Max. Working Pressure

290 Psig

Application Medium

Food Processing

Notes

Also available in CF8M (SS 316)

Product Standard :- ISO – 4144

Suitability

Water

Steam

Gas

Oil

Air

Download PDF Product Inquiry
Material Combination

AV-546 | Stainless Steel Hex Head Plug, PN-20

Download PDF Product Inquiry

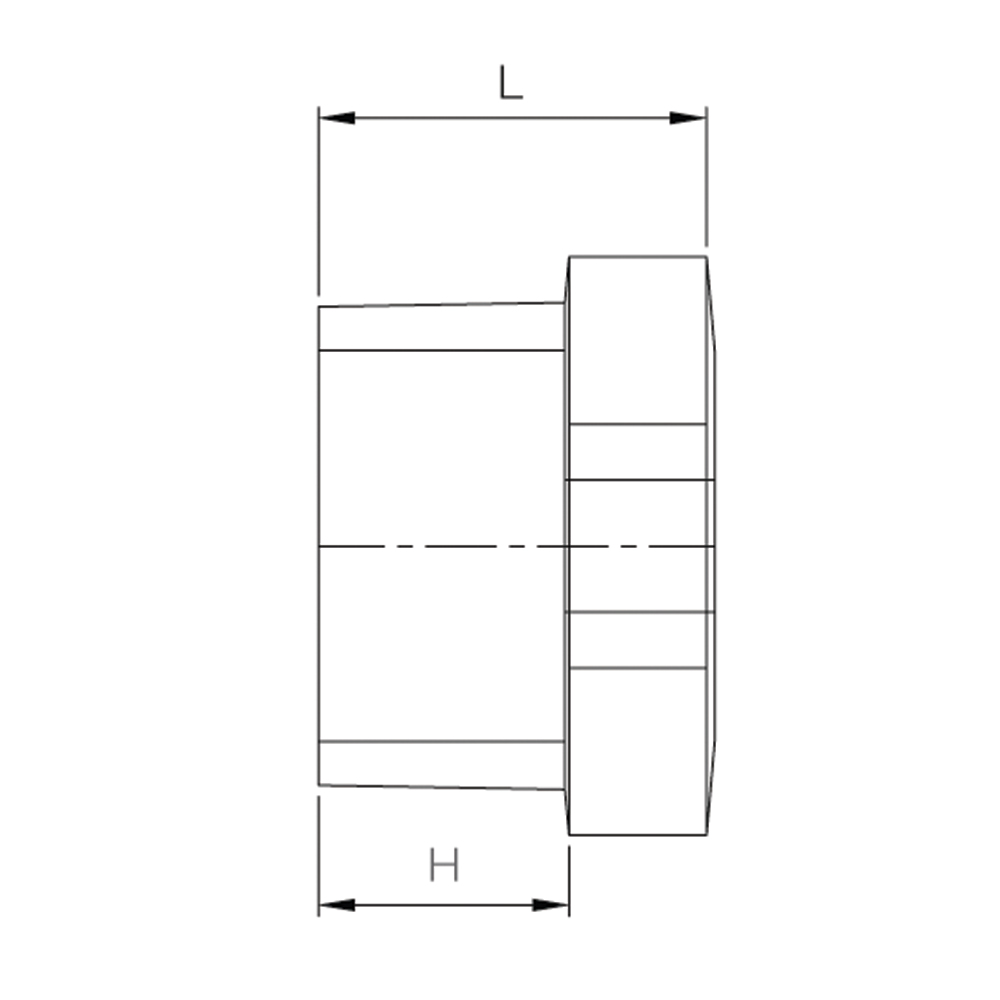

Dimensional Data

Size h h1

1/4” 16 12

3/8” 16 11

1/2” 19.5 14.5

3/4” 21 15.5

1” 24 18

1.1/4” 27 20.5

1.1/2” 27 20.5

2” 32 25

2.1/2” 34 27

3” 37.5 30

4” 44 36

Download PDF Product Inquiry
