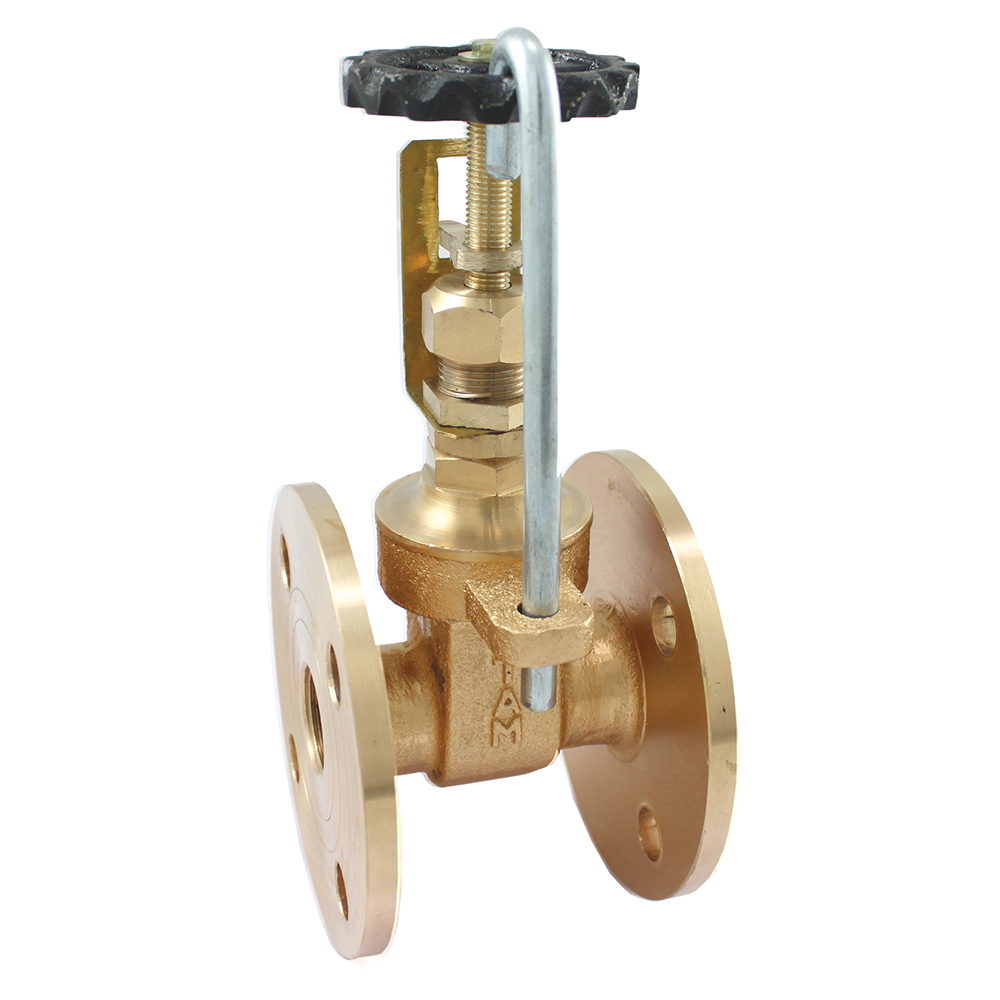

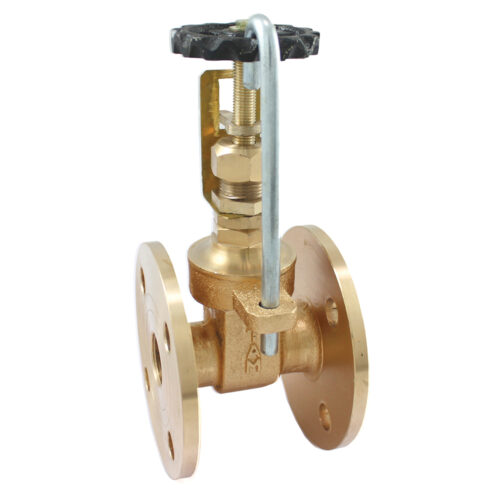

AV-93 Bronze Gate Valve, Flanged Ends

AV-93 | Bronze Gate Valve, Flanged Ends

Features

Body Material Cum Standard

Bronze (BS EN 1982 Gr. CC491K)

Product Description

Screwed in Bonnet, Inside Screw, Non Rising Stem, Handwheel Operated with Open Shut Indicator & Pad Locking Arrangements

Type of Seat

Integral Seat

Type of Wedge

Solid Wedge

Trim

Cu-Alloy

End Details

Flanges Ends as per BS-10 Table-D

Test Pressure

Body: 300 Psig (Hyd.), Seat: 200 Psig (Hyd.)

Notes

These valves are suitable for transformers.

Suitability

Water

Steam

Gas

Oil

Air

Download PDF Product Inquiry

Material Combination

S.No	Description	No.	Material	Specifications
1	Body	1	Bronze	BS EN 1982 Gr. CC491K / IS 318 Gr. LTB2
2	Wedge	1	Bronze	BS EN 1982 Gr. CC491K / IS 318 Gr. LTB2
3	Stem	1	H.T. Brass	IS 6912 Gr. FLB / IS 319
4	Stem Nut	1	Bronze	BS EN 1982 Gr. CC491K / IS 318 Gr. LTB2
5	Bonnet	1	Bronze	BS EN 1982 Gr. CC491K / IS 318 Gr. LTB2
6	Check Nut	1	Bronze	BS EN 1982 Gr. CC491K / IS 318 Gr. LTB2
7	Packing	–	PTFE	–
8	Gland Follower	1	Bronze	BS EN 1982 Gr. CC491K / IS 318 Gr. LTB2
9	Gland Nut	1	Bronze	BS EN 1982 Gr. CC491K / IS 318 Gr. LTB2
10	Indicator	1	Bronze	BS EN 1982 Gr. CC491K / IS 318 Gr. LTB2
11	Indicator Plate	1	Brass Sheet	–
12	Handwheel	1	Aluminium	–
13	Locking Rod	1	M.S.	Galvanised

Download PDF Product Inquiry

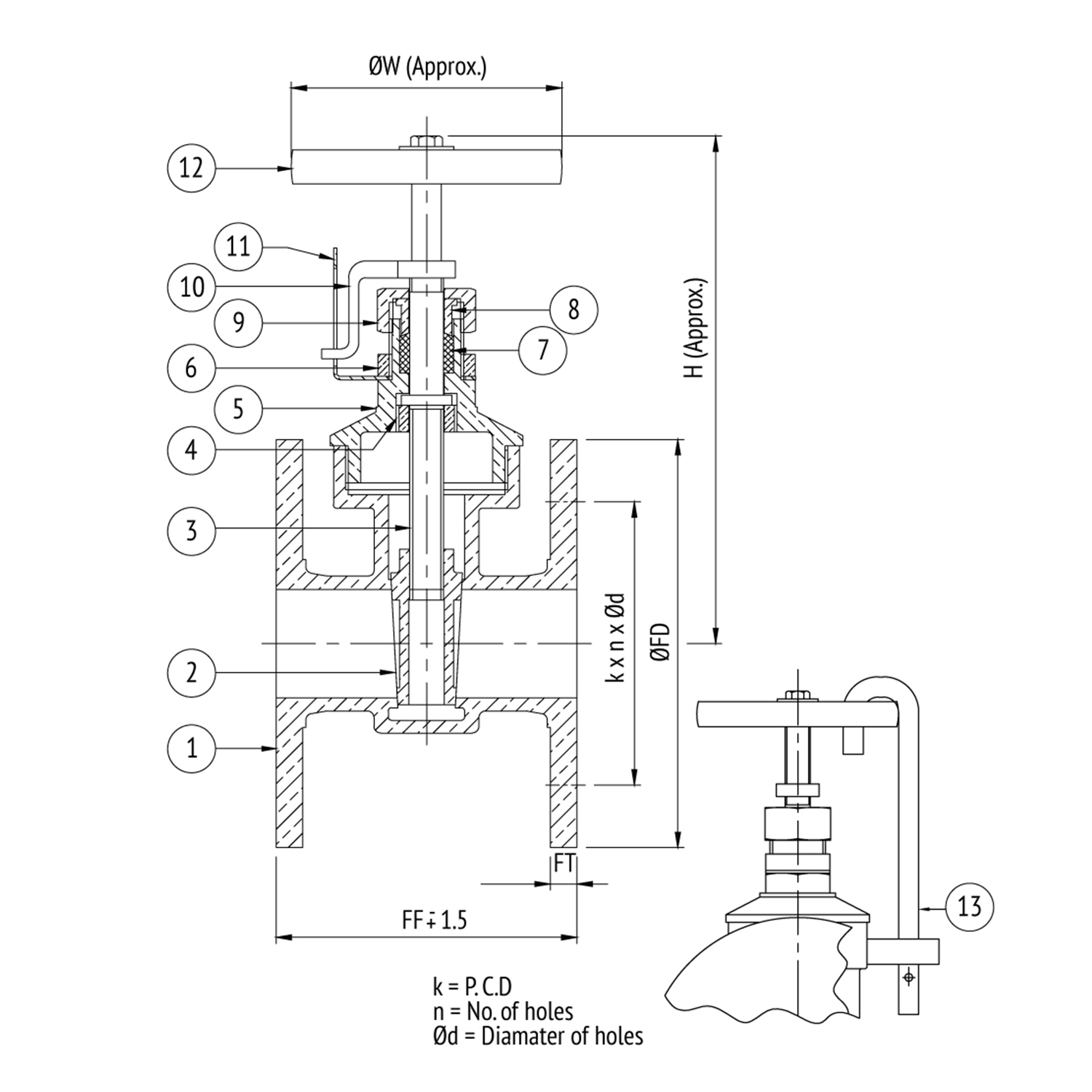

Dimensional Data

Size (mm)	FF	H	ØW	ØFD	FT	k	n	Ød
15	65	126	63	96	6.4	66	4	14
20	76	150	73	102	6.4	73	4	14
25	86	160	83	115	7.9	82	4	14
32	90	176	83	120	7.9	94	4	14
40	106	205	95	135	9.5	104	4	14
50	115	215	95	150	9.5	115	4	17
65	138	240	115	165	11.1	127	4	17
80	151	300	150	185	12.7	145	4	17
100	179	355	165	216	15.9	178	4	17
125	216	480	220	254	17.5	210	8	17
150	257	515	250	279.4	17.5	235	8	17.5

Download PDF Product Inquiry

AV-93 | Bronze Gate Valve, Flanged Ends

Product Inquiry

Features

Body Material Cum Standard

Bronze (BS EN 1982 Gr. CC491K)

Product Description

Screwed in Bonnet, Inside Screw, Non Rising Stem, Handwheel Operated with Open Shut Indicator & Pad Locking Arrangements

Type of Seat

Integral Seat

Type of Wedge

Solid Wedge

Trim

Cu-Alloy

End Details

Flanges Ends as per BS-10 Table-D

Test Pressure

Body: 300 Psig (Hyd.), Seat: 200 Psig (Hyd.)

Notes

These valves are suitable for transformers.

Download PDF

Suitability

Water

Steam

Gas

Oil

Air

Material Combination

S.No Description No. Material Specifications

1 Body 1 Bronze BS EN 1982 Gr. CC491K / IS 318 Gr. LTB2

2 Wedge 1 Bronze BS EN 1982 Gr. CC491K / IS 318 Gr. LTB2

3 Stem 1 H.T. Brass IS 6912 Gr. FLB / IS 319

4 Stem Nut 1 Bronze BS EN 1982 Gr. CC491K / IS 318 Gr. LTB2

5 Bonnet 1 Bronze BS EN 1982 Gr. CC491K / IS 318 Gr. LTB2

6 Check Nut 1 Bronze BS EN 1982 Gr. CC491K / IS 318 Gr. LTB2

7 Packing – PTFE –

8 Gland Follower 1 Bronze BS EN 1982 Gr. CC491K / IS 318 Gr. LTB2

9 Gland Nut 1 Bronze BS EN 1982 Gr. CC491K / IS 318 Gr. LTB2

10 Indicator 1 Bronze BS EN 1982 Gr. CC491K / IS 318 Gr. LTB2

11 Indicator Plate 1 Brass Sheet –

12 Handwheel 1 Aluminium –

13 Locking Rod 1 M.S. Galvanised

Dimensional Data

Size (mm) FF H ØW ØFD FT k n Ød

15 65 126 63 96 6.4 66 4 14

20 76 150 73 102 6.4 73 4 14

25 86 160 83 115 7.9 82 4 14

32 90 176 83 120 7.9 94 4 14

40 106 205 95 135 9.5 104 4 14

50 115 215 95 150 9.5 115 4 17

65 138 240 115 165 11.1 127 4 17

80 151 300 150 185 12.7 145 4 17

100 179 355 165 216 15.9 178 4 17

125 216 480 220 254 17.5 210 8 17

150 257 515 250 279.4 17.5 235 8 17.5
