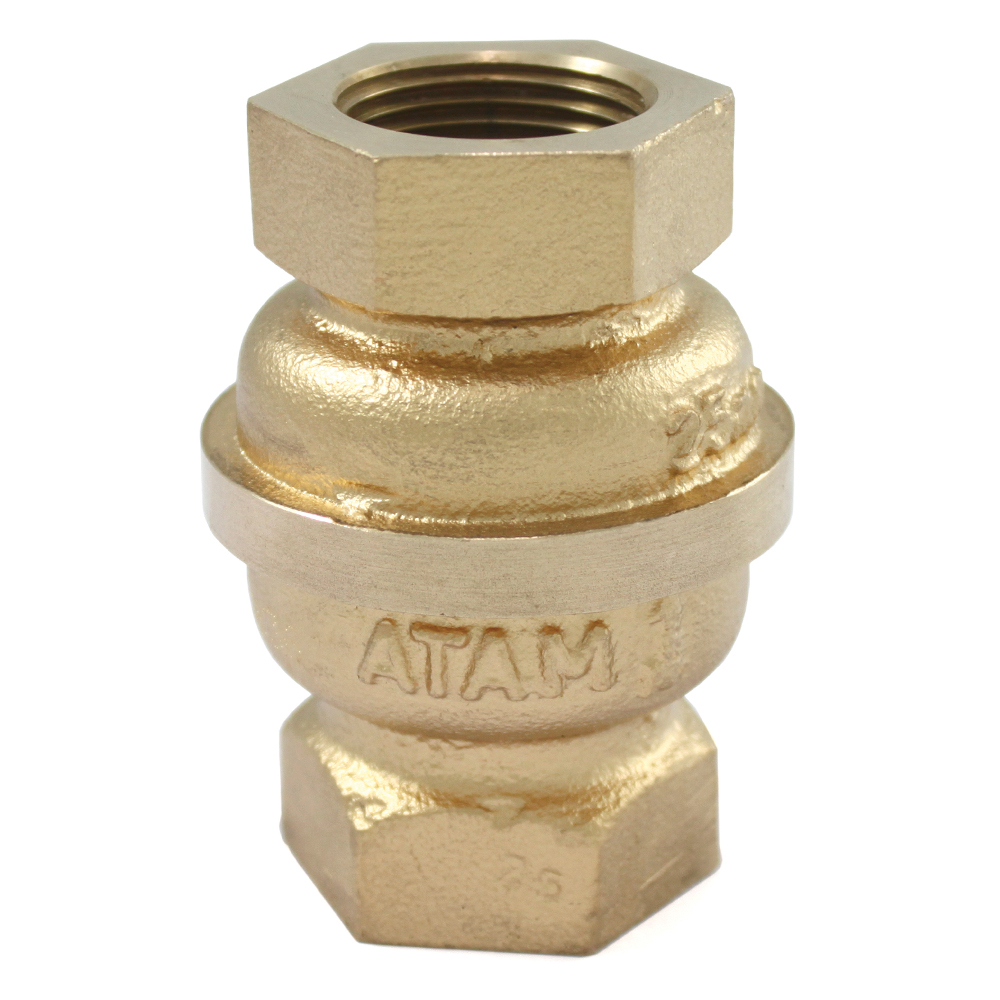

AV-80 Bronze Vertical Lift Check Valve, Screwed Ends, PN-20


  • AV-80 | Bronze Vertical Lift Check Valve, Screwed Ends, PN-20
    Features

    Testing Standard

    BS EN 12266-Part 1

    Pressure / Class Rating

    PN-20

    Body Material Cum Standard

    Bronze (BS EN 1982 Gr. CC491K)

    Product Description

    Vertical Lift Type

    Type of Seat

    Renewable Seat

    Type of Disc

    Renewable Disc

    Trim

    13% Cr. (SS 410)

    End Details

    Screwed Female BSP Parallel Threads (BS-21)

    Test Pressure

    Body: 435 Psig (Hyd.), Seat: 320 Psig (Hyd.)

    Max. Working Pressure

    150 Psig (Steam)


    Suitability

    Water

    Steam

    Gas

    Oil

    Air

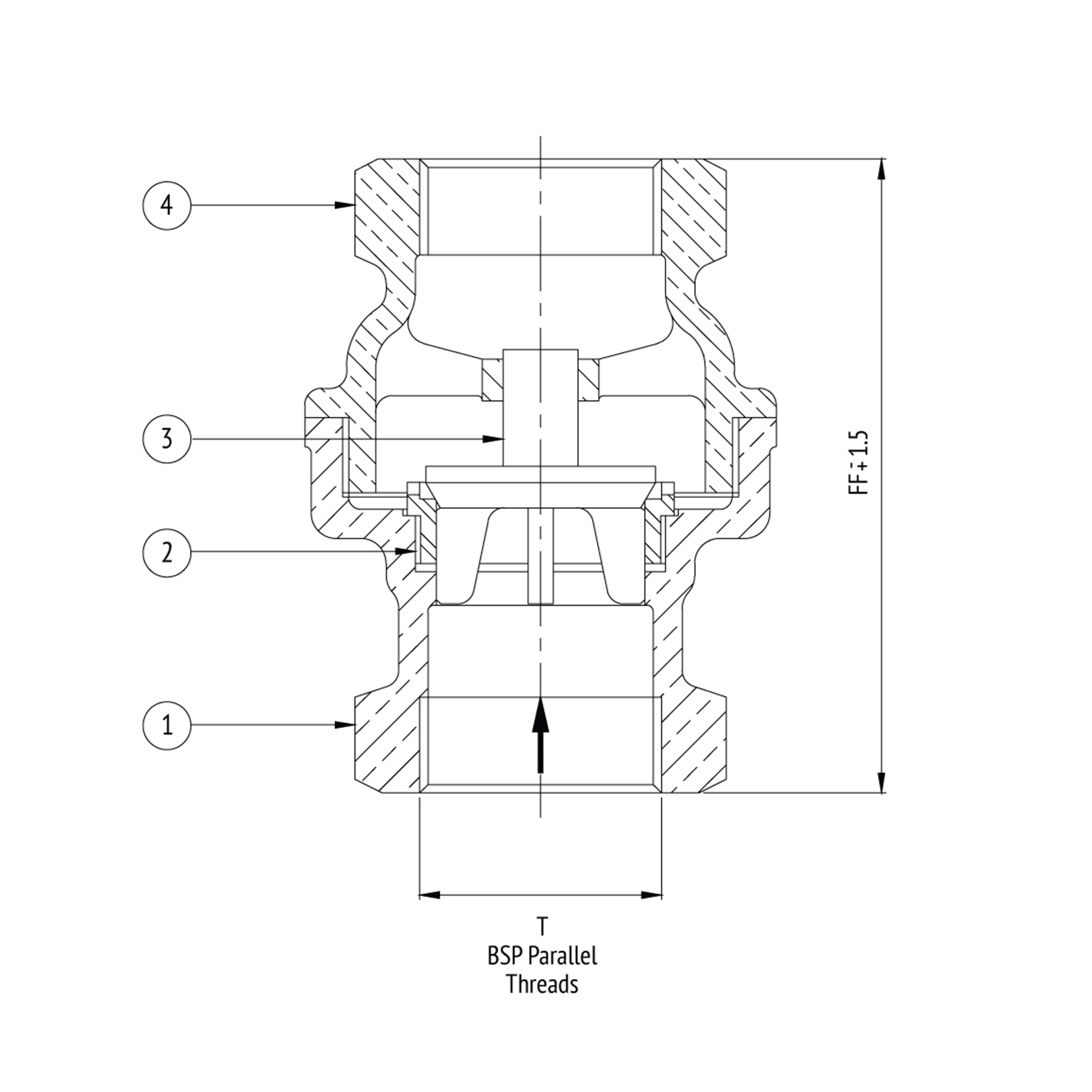

  • Material Combination
    S.No Description No. Material Specifications
    1 Inlet Body 1 Gun Metal BSEN 1982 Gr. CC491K
    2 Body Seat Ring 1 Stainless Steel ASTM A 276 Type 410
    3 Disc 1 Stainless Steel ASTM A 276 Type 410
    4 Outlet Body 1 Gun Metal BSEN 1982 Gr. CC491K
    AV-80 | Bronze Vertical Lift Check Valve, Screwed Ends, PN-20
  • Dimensional Data
    Size (mm) FF T
    15 73 1/2”
    20 80 3/4”
    25 89 1”
    32 110 1.1/4”
    40 126 1.1/2”
    50 145 2”
    65 157 2.1/2”
    80 172 3”
  • AV-80 | Bronze Vertical Lift Check Valve, Screwed Ends, PN-20
    Product Inquiry
Features

Testing Standard

BS EN 12266-Part 1

Pressure / Class Rating

PN-20

Body Material Cum Standard

Bronze (BS EN 1982 Gr. CC491K)

Product Description

Vertical Lift Type

Type of Seat

Renewable Seat

Type of Disc

Renewable Disc

Trim

13% Cr. (SS 410)

End Details

Screwed Female BSP Parallel Threads (BS-21)

Test Pressure

Body: 435 Psig (Hyd.), Seat: 320 Psig (Hyd.)

Max. Working Pressure

150 Psig (Steam)

Download PDF

Suitability

Water

Steam

Gas

Oil

Air


Material Combination
S.No Description No. Material Specifications
1 Inlet Body 1 Gun Metal BSEN 1982 Gr. CC491K
2 Body Seat Ring 1 Stainless Steel ASTM A 276 Type 410
3 Disc 1 Stainless Steel ASTM A 276 Type 410
4 Outlet Body 1 Gun Metal BSEN 1982 Gr. CC491K
Dimensional Data
Size (mm) FF T
15 73 1/2”
20 80 3/4”
25 89 1”
32 110 1.1/4”
40 126 1.1/2”
50 145 2”
65 157 2.1/2”
80 172 3”
