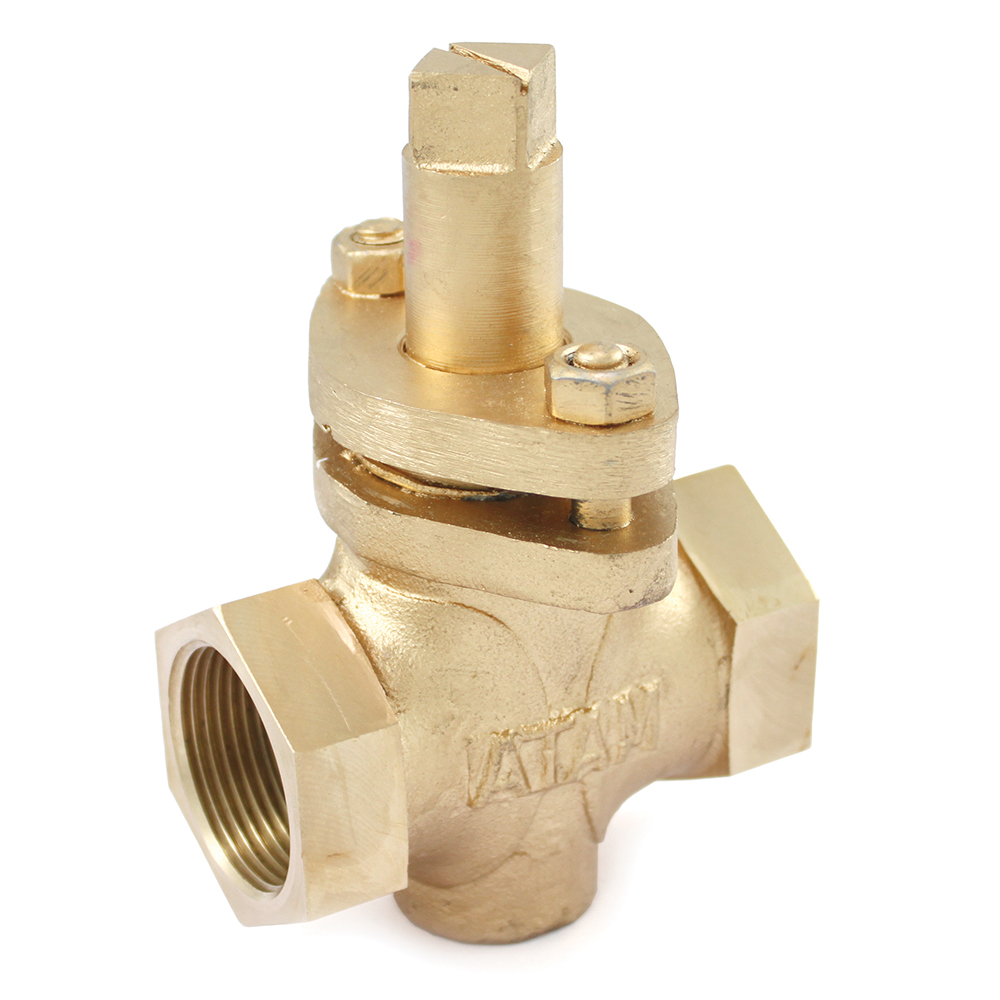

AV-57 Bronze Gland Cock, Screwed Ends


  • AV-57 | Bronze Gland Cock, Screwed Ends
    Features

    Type of Pattern

    Straight Pattern

    Body Material Cum Standard

    Bronze (BS EN 1982 Gr. CC491K)

    Product Description

    Gland Packed Fitted with Taper Plug in a Taper Seated Body

    End Details

    Screwed Female BSP Parallel Threads (BS-21)

    Test Pressure

    Body: 300 Psig (Hyd.), Seat: 150 Psig (Hyd.)


    Suitability

    Water

    Steam

    Gas

    Oil

    Air

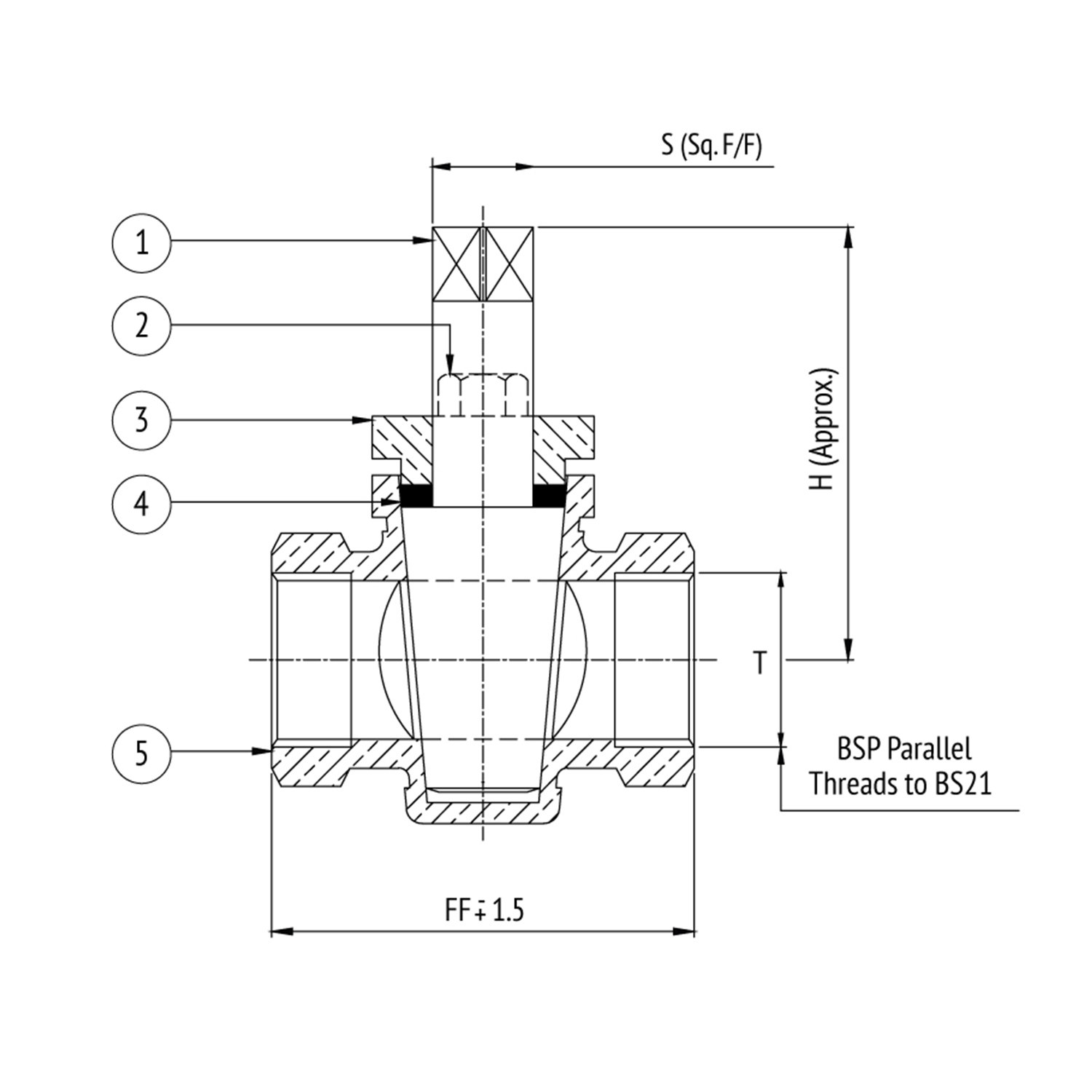

  • Material Combination
    S.No Description No. Material Specifications
    1 Plug 1 Bronze BSEN 1982 Gr. CC491K
    2 Bolt 2 M.S. BS 916
    3 Gland 1 Bronze BSEN 1982 Gr. CC491K
    4 Gland Packing Asbestos
    5 Body 1 Bronze BSEN 1982 Gr. CC491K
    AV-57 | Bronze Gland Cock, Screwed Ends
  • Dimensional Data
    Size (mm) FF H S T
    15 56 60 11 1/2”
    20 68 68 12 3/4”
    25 78 75 16 1”
    32 96 107 18 1.1/4”
    40 107 107 20 1.1/2”
    50 122 110 20 2”
  • AV-57 | Bronze Gland Cock, Screwed Ends
    Product Inquiry
Features

Type of Pattern

Straight Pattern

Body Material Cum Standard

Bronze (BS EN 1982 Gr. CC491K)

Product Description

Gland Packed Fitted with Taper Plug in a Taper Seated Body

End Details

Screwed Female BSP Parallel Threads (BS-21)

Test Pressure

Body: 300 Psig (Hyd.), Seat: 150 Psig (Hyd.)

Download PDF

Suitability

Water

Steam

Gas

Oil

Air


Material Combination
S.No Description No. Material Specifications
1 Plug 1 Bronze BSEN 1982 Gr. CC491K
2 Bolt 2 M.S. BS 916
3 Gland 1 Bronze BSEN 1982 Gr. CC491K
4 Gland Packing Asbestos
5 Body 1 Bronze BSEN 1982 Gr. CC491K
Dimensional Data
Size (mm) FF H S T
15 56 60 11 1/2”
20 68 68 12 3/4”
25 78 75 16 1”
32 96 107 18 1.1/4”
40 107 107 20 1.1/2”
50 122 110 20 2”
