AV-130 Casting Iron Balancing Valve Flanged Ends, PN-16

AV-130 | Casting Iron Balancing Valve Flanged Ends, PN-16

Features

Testing Standard

API-598

Body Material Cum Standard

Cast Iron (IS 210 Gr. FG200)

Product Description

Bolted Bonnet, Handwheel Operated

Trim

13% Cr.

Type of Disc

EPDM

End Details

Flanged Ends as per BS-10 PN-16

Test Pressure

Body: 24 Bar (Hyd.), Seat: 17.6 Bar (Hyd.)

Pressure / Class Rating

PN-10 / PN-16

Suitability

Water

Steam

Gas

Oil

Air

Download PDF Product Inquiry

Material Combination

Sr. No	Description	No.	Material Specifications
1	Body	1	IS:210 Gr. FG200
2	Seat Packing	1	EPDM
3	Disc	1	Mild Steel/ S.S. Replaceable EPDM
4	Stem	1	ASTM A276 Gr. S.S.410
5	Seal	1	EPDM
6	O-Ring	1	EPDM
7	Bonnet	1	IS:210 Gr. FG200
8	Guide	1	PTFE
9	Check Nut	1	LTB-2
10	Cover	1	IS:210 Gr. FG200
11	Scale 1	1	IS:210 Gr. FG200
12	Balancing Nut	1	Mild Steel
13	Scale 2	1	IS:210 Gr. FG200
14	Handwheel	1	IS:210 Gr. FG200
15	Nut	1	IS:210 Gr. FG200
16	Plug	1	Mild Steel

Download PDF Product Inquiry

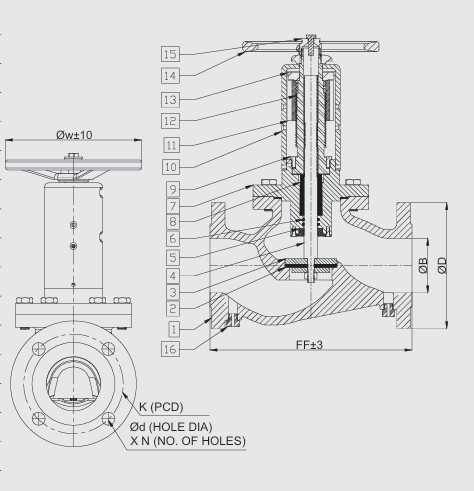

Dimensional Data

Correct Dimensional data format

Size (mm)	FF	ØD	ØW	ØB	K(PCD)	Ød	N
50	230	165	200	50	125	19	4
65	290	185	200	65	145	19	4
80	310	200	200	80	160	19	8
100	350	220	200	100	180	19	8
125	400	250	300	125	210	19	8
150	480	285	300	150	240	23	8
200	600	340	300	200	295	23	12
250	730	405	300	250	355	28	12
300	850	460	300	300	410	28	12
350	980	520	300	350	470	28	16
400	1100	580	–	400	525	31	16
450	1200	640	–	450	585	31	20
500	1250	715	–	500	650	34	20
600	1450	840	–	600	770	37	20

Download PDF Product Inquiry

AV-130 | Casting Iron Balancing Valve Flanged Ends, PN-16

Product Inquiry

Casting Iron Balancing Valve Flanged Ends, PN-16

Features

Testing Standard

API-598

Body Material Cum Standard

Cast Iron (IS 210 Gr. FG200)

Product Description

Bolted Bonnet, Handwheel Operated

Trim

13% Cr.

Type of Disc

EPDM

End Details

Flanged Ends as per BS-10 PN-16

Test Pressure

Body: 24 Bar (Hyd.), Seat: 17.6 Bar (Hyd.)

Pressure / Class Rating

PN-10 / PN-16

Download PDF

Suitability

Water

Steam

Gas

Oil

Air

Material Combination

Sr. No Description No. Material Specifications

1 Body 1 IS:210 Gr. FG200

2 Seat Packing 1 EPDM

3 Disc 1 Mild Steel/ S.S. Replaceable EPDM

4 Stem 1 ASTM A276 Gr. S.S.410

5 Seal 1 EPDM

6 O-Ring 1 EPDM

7 Bonnet 1 IS:210 Gr. FG200

8 Guide 1 PTFE

9 Check Nut 1 LTB-2

10 Cover 1 IS:210 Gr. FG200

11 Scale 1 1 IS:210 Gr. FG200

12 Balancing Nut 1 Mild Steel

13 Scale 2 1 IS:210 Gr. FG200

14 Handwheel 1 IS:210 Gr. FG200

15 Nut 1 IS:210 Gr. FG200

16 Plug 1 Mild Steel

Dimensional Data

Correct Dimensional data format

Size (mm) FF ØD ØW ØB K(PCD) Ød N

50 230 165 200 50 125 19 4

65 290 185 200 65 145 19 4

80 310 200 200 80 160 19 8

100 350 220 200 100 180 19 8

125 400 250 300 125 210 19 8

150 480 285 300 150 240 23 8

200 600 340 300 200 295 23 12

250 730 405 300 250 355 28 12

300 850 460 300 300 410 28 12

350 980 520 300 350 470 28 16

400 1100 580 – 400 525 31 16

450 1200 640 – 450 585 31 20

500 1250 715 – 500 650 34 20

600 1450 840 – 600 770 37 20
