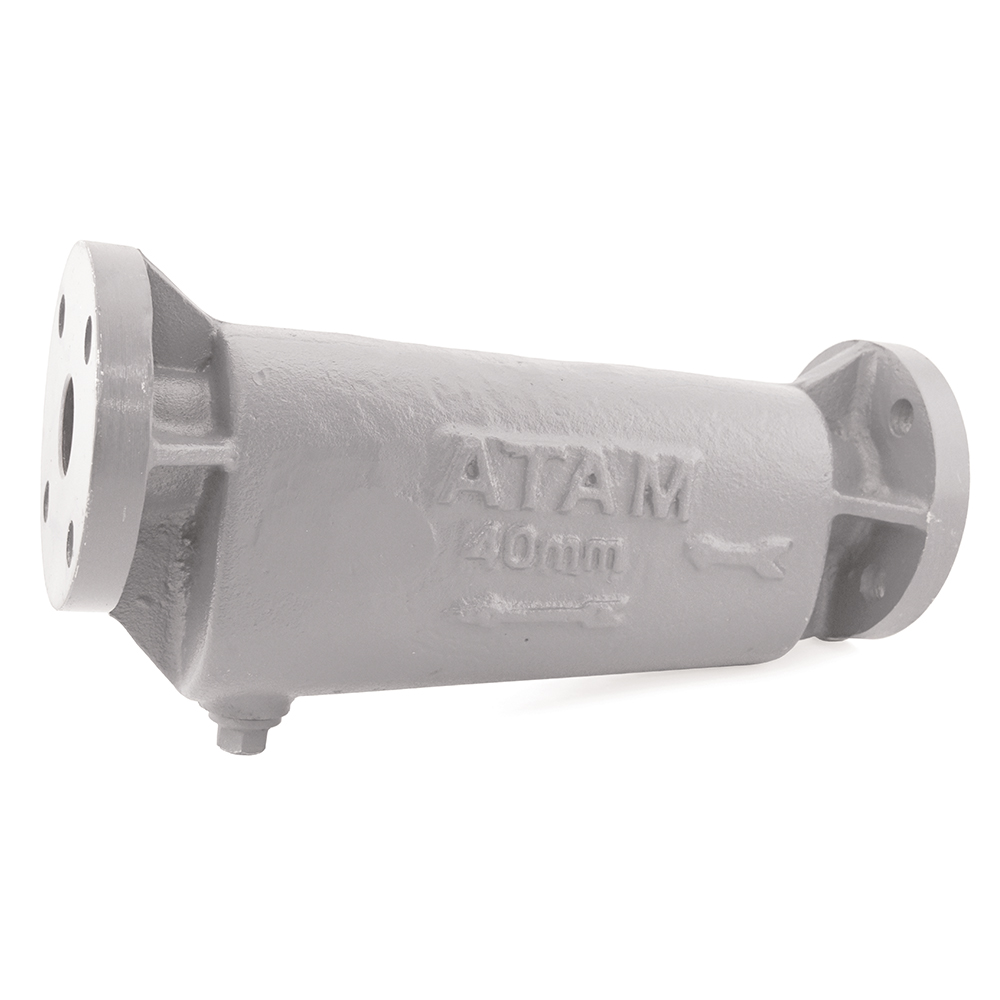

AV-291 Cast Carbon Steel Moisture Separator, Flanged EndsIBR Approved


  • AV-291 | Cast Carbon Steel Moisture Separator, Flanged Ends
    Features

    Body Material Cum Standard

    Cast Carbon Steel (ASTM A216 Gr. WCB)

    Product Description

    Horizontal Type with Drain Feature

    End Details

    Flanged Ends as per BS-10 Table-F Flat Face (Undrilled)

    Test Pressure

    Body: 700 Psig (Hyd.)

    Max. Working Pressure

    350 Psig (Steam)

    Max. Working Temperature

    425°C

    Notes

    Test Certificate in Form III-C as per IBR is furnished with every supply.


    Suitability

    Water

    Steam

    Gas

    Oil

    Air


  • Material Combination
    S.No Description No. Material Specifications
    1 Body 1 C.C.S. ASTM A216 Gr. WCB
    2 Plug 1 S.S.. 410 ASTM A276 Type 410
    3 Gasket 1 C.A.F.
    AV-291 | Cast Carbon Steel Moisture Separator, Flanged Ends

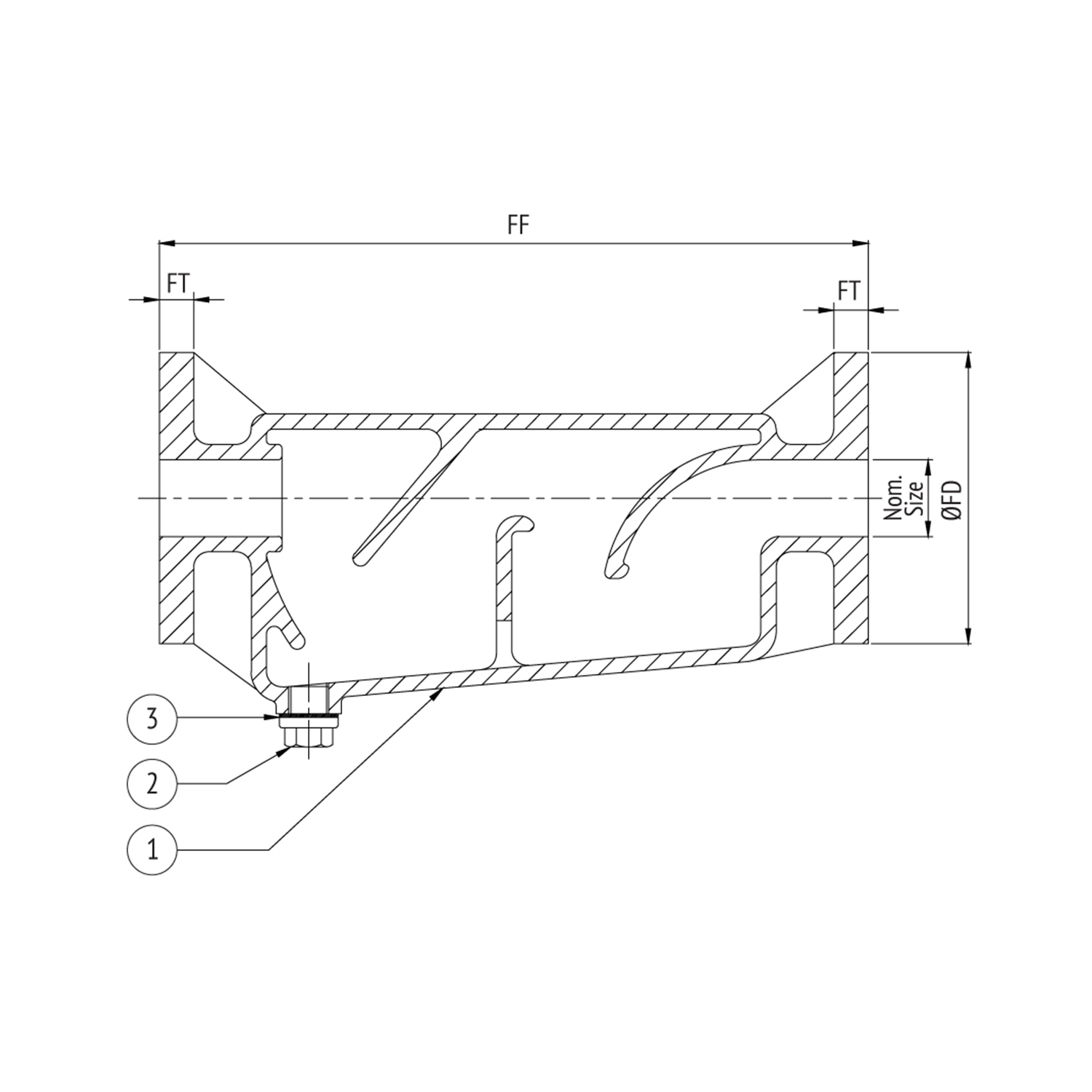

  • Dimensional Data
    Size (mm) FF ØFD FT
    25 300+- 2 120.7 12.7
    40 370+- 2 139.7 15.9
    50 466+- 3 165.1 19.1
    65 485+- 3 184.2 19.1
    80 485+- 3 203.2 19.1
    100 696+- 4 228.6 22.3
    150 800+- 4 304.8 25.4
  • AV-291 | Cast Carbon Steel Moisture Separator, Flanged Ends
    Product Inquiry
Features

Body Material Cum Standard

Cast Carbon Steel (ASTM A216 Gr. WCB)

Product Description

Horizontal Type with Drain Feature

End Details

Flanged Ends as per BS-10 Table-F Flat Face (Undrilled)

Test Pressure

Body: 700 Psig (Hyd.)

Max. Working Pressure

350 Psig (Steam)

Max. Working Temperature

425°C

Notes

Test Certificate in Form III-C as per IBR is furnished with every supply.

Download PDF

Suitability

Water

Steam

Gas

Oil

Air


Material Combination
S.No Description No. Material Specifications
1 Body 1 C.C.S. ASTM A216 Gr. WCB
2 Plug 1 S.S.. 410 ASTM A276 Type 410
3 Gasket 1 C.A.F.
Dimensional Data
Size (mm) FF ØFD FT
25 300+- 2 120.7 12.7
40 370+- 2 139.7 15.9
50 466+- 3 165.1 19.1
65 485+- 3 184.2 19.1
80 485+- 3 203.2 19.1
100 696+- 4 228.6 22.3
150 800+- 4 304.8 25.4
