AV-289C Cast Carbon Steel Globe Valve (Suitable for thermic fluid), Flanged Ends, Class-150 (Non-IBR)

AV-289C | Cast Carbon Steel Globe Valve (Suitable for thermic fluid), Flanged Ends, Class-150 (Non-IBR)

Features

Product Standard

BS 1873 / ASME B16.34

Testing Standard

API-598

Pressure / Class Rating

Class-150

Body Material Cum Standard

Cast Carbon Steel (ASTM A216 Gr. WCB)

Product Description

Bolted Bonnet, Outside Screw & Yoke Type, Rising Stem, Handwheel Operated

Type of Seat

Renewable Seat

Type of Disc

Renewable Disc

Trim

13% Cr. (SS 410)

End Details

Flanged Ends as per ASME B16.5 Class-150 Raised Face (Drilled)

Test Pressure

Body: 30 Bar (Hyd.), Seat: 22 Bar (Hyd.), Seat: 7 Bar (Air)

Max. Working Temperature

425°C

Notes

Test Certificate in Form III-C as per IBR is furnished with every supply.
Other trim material combinations are available on request.

Suitability

Water

Steam

Gas

Oil

Air

Download PDF Product Inquiry

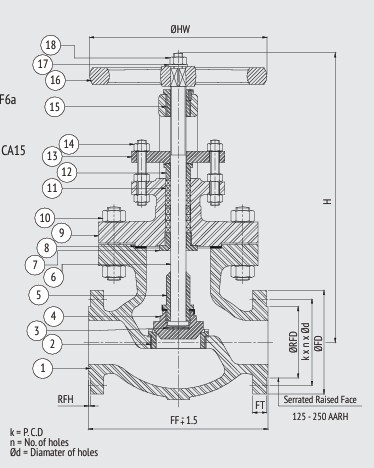

Material Combination

P.No.	Name of Part	Material	Specification	Nos.
1	Body	C.C.S	ASTM A216 Gr. WCB	1
2	Body Seat Ring	C.C.S/F.S.S.	ASTM A216 Gr. WCB + 13% Cr. Weld Deposite/ ASTM A182 Gr. F6a	2
3	Thrust Plate	Hardened Steel	–	1
4	Disc	C.C.S./ C.A.S. / S.S.	ASTM A216 Gr. WCB + 13% Cr. Weld Deposite/ ASTM A217 GR. CA 15/ ASTM A 276 TYPE 410	1
5	Disc Nut	S.S.	ASTM A 276 TYPE 410	1
6	Stem	S.S.	ASTM A 276 TYPE 410	1
7	Back Seat Bush	S.S.	ASTM A276 TYPE 410	To Suit
8	Gasket	Spiral Wound S.S. 304 Graphoil Filler With Inner Ring	–	1
9	Bonnet	C.C.S.	ASTM A 216 Gr. WCB	1
10	Studs & Nuts	Alloy Steel/ H.T Steel	ASTM A193 Gr. B7/ASTM A194 Gr. 2H	1
11	Gland Packing	Flexible Graphite	–
12	Gland Follower	S.S.	ASTM A276 TYPE 410	1
13	Gland Flange	C.C.S./ C.S.	ASTM A216 Gr. WCB/ –	1
14	Gland Studs & Nuts	Alloy Steel/ H.T Steel	ASTM A193 Gr. B7/ASTM A194 Gr. 2H	2/4
15	Yoke Bush	Al. Bronze / M.S.	BS EN 1982 Gr. CC331G / –	1
18	Handwheel	M.I./ D.I.	–	1
17	Washer	Carbon Steel	–	1
18	Nut for Handwheel	Carbon Steel	–	1

Download PDF Product Inquiry

Dimensional Data

Nominal Size (mm)	FF	FT	ØRFD	RFH	ØFD	K	n	Ød	ØHW	H
15	108	7.9	35.1	1.5	89	60.5	4	5/8″	100	185
20	117	8.6	42.9	1.5	99	68.8	4	5/8″	100	190
25	127	9.7	50.8	1.5	108	79.2	4	5/8″	160	220
32	140	11.2	63.5	1.5	117	88.9	4	5/8″	160	250
40	165	12.7	73	1.5	127	98.6	4	5/8″	203	240
50	203	14.2	91.9	1.5	152	120.6	4	3/4″	203	270
65	216	15.7	105	1.5	178	139.7	4	3/4″	229	310
80	241	17.5	127	1.5	190	152.4	4	3/4″	229	350
100	292	22.4	157	1.5	229	190.5	8	3/4″	254	400
125	356	22.5	186	1.5	254	215.9	8	7/8″	254	425
150	406	23.9	216	1.5	278	241.3	8	7/8″	305	500
200	495	26.9	270	1.5	343	298.4	8	7/8″	457	590
250	622	28.4	324	1.5	406	362	12	1″	560	740
300
350
400
450

k – P.C.D; n – Number of Holes; Ød – Diameter of Holes
