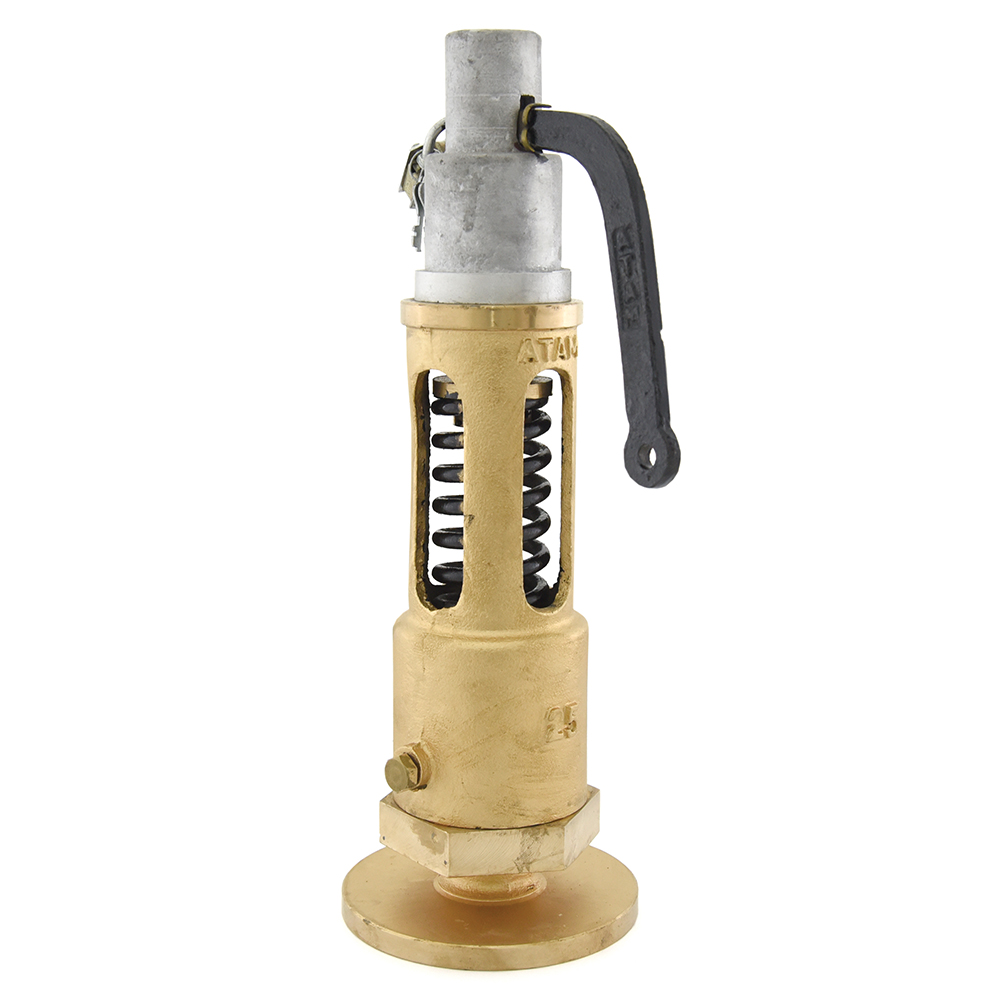

AV-233 Bronze Pop Type Safety Valve (Flanged Ends)

AV-233 | Bronze Pop Type Safety Valve (Flanged Ends)

Features

Body Material Cum Standard

Bronze (IBR 282 (a) (iv) Gr. B)

Product Description

Pop Type, Spring Loaded, Open Discharge

Trim

Cu-Alloy

End Details

Flanged Ends as per BS-10 Table-H Flat Face (Undrilled)

Test Pressure

Body: 500 Psig (Hyd.)

Max. Working Pressure

250 Psig (Steam)

Max. Working Temperature

225°C

Max. Set Pressure

250 Psig (Steam)

Notes

Test Certificate in Form III-C as per IBR is furnished with every supply.

Suitability

Water

Steam

Gas

Oil

Air

Download PDF Product Inquiry

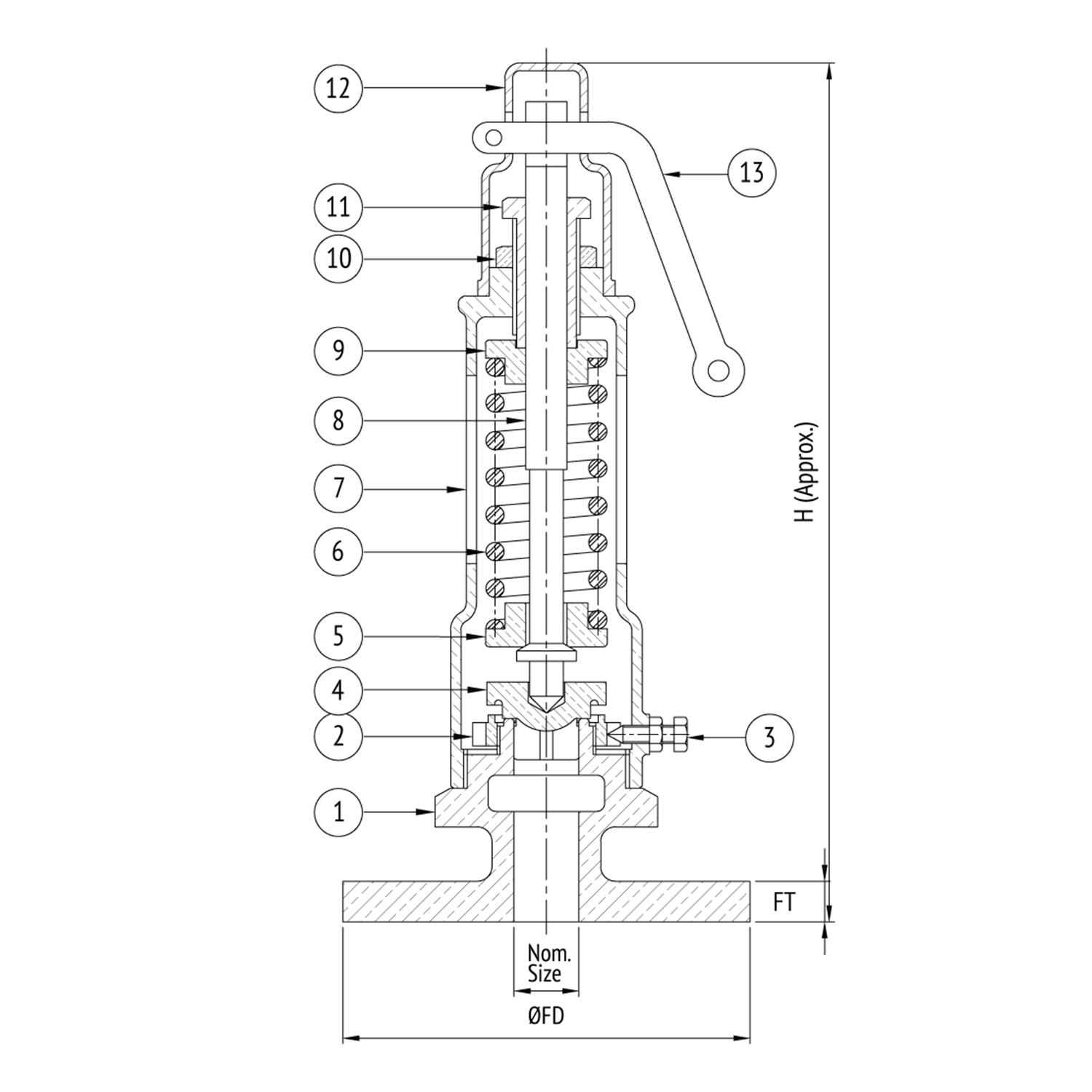

Material Combination

S.No	Description	No.	Material	Specifications
1	Body	1	Bronze	IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K
2	Regulating Ring	1	Bronze	IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K
3	Locking Screw	1	Brass	–
4	Disc	1	Bronze	IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K
5	Lower Spring Disc	1	Bronze	IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K
6	Spring	1	Carbon Steel	–
7	Spring Chamber	1	Bronze	IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K
8	Stem	1	Forged Brass	–
9	Upper Spring Disc	1	Bronze	IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K
10	Check Nut	1	Bronze	IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K
11	Adjusting Screw	1	Bronze	IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K
12	Cap	1	Aluminium	–
13	Lever	1	Carbon Steel	–

Download PDF Product Inquiry

Dimensional Data

Size (mm) H ØFD FT

15 287 114.3 9.5

20 324 114.3 9.5

25 325 120.7 11.1

32 398 133.4 11.1

40 400 139.7 12.7

50 451 165.1 12.7

Download PDF Product Inquiry
AV-233 | Bronze Pop Type Safety Valve (Flanged Ends)

Product Inquiry

Size (mm)	H	ØFD	FT
15	287	114.3	9.5
20	324	114.3	9.5
25	325	120.7	11.1
32	398	133.4	11.1
40	400	139.7	12.7
50	451	165.1	12.7

Features

Body Material Cum Standard

Bronze (IBR 282 (a) (iv) Gr. B)

Product Description

Pop Type, Spring Loaded, Open Discharge

Trim

Cu-Alloy

End Details

Flanged Ends as per BS-10 Table-H Flat Face (Undrilled)

Test Pressure

Body: 500 Psig (Hyd.)

Max. Working Pressure

250 Psig (Steam)

Max. Working Temperature

225°C

Max. Set Pressure

250 Psig (Steam)

Notes

Test Certificate in Form III-C as per IBR is furnished with every supply.

Download PDF

Suitability

Water

Steam

Gas

Oil

Air

Material Combination

S.No Description No. Material Specifications

1 Body 1 Bronze IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K

2 Regulating Ring 1 Bronze IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K

3 Locking Screw 1 Brass –

4 Disc 1 Bronze IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K

5 Lower Spring Disc 1 Bronze IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K

6 Spring 1 Carbon Steel –

7 Spring Chamber 1 Bronze IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K

8 Stem 1 Forged Brass –

9 Upper Spring Disc 1 Bronze IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K

10 Check Nut 1 Bronze IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K

11 Adjusting Screw 1 Bronze IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K

12 Cap 1 Aluminium –

13 Lever 1 Carbon Steel –

Dimensional Data

Size (mm) H ØFD FT

15 287 114.3 9.5

20 324 114.3 9.5

25 325 120.7 11.1

32 398 133.4 11.1

40 400 139.7 12.7

50 451 165.1 12.7

Size (mm)	H	ØFD	FT
15	287	114.3	9.5
20	324	114.3	9.5
25	325	120.7	11.1
32	398	133.4	11.1
40	400	139.7	12.7
50	451	165.1	12.7
