AV-96D Cast Iron Butterfly Valve, PN-16

AV-96D | Cast Iron Butterfly Valve, PN-16

Features

Product Standard

IS-13095

Testing Standard

IS-13095

Pressure / Class Rating

PN-16

Body Material Cum Standard

Cast Iron (IS 210 Gr. FG200)

Product Description

Wafer Type, without Lugs

Type of Seat

Integrally Moulded Liner

Trim

EPDM Liner, Disc: S.G Iron, Stem: 13% Cr. (SS 410)

End Details

Suitable for insertion between Flanges as per ANSI B16.1 Class-125 DIN ND-10 & BS-10 Table-E

Test Pressure

Body: 350 Psig (Hyd.), Seat: 255 Psig (Hyd.)

Max. Working Temperature

80°C

Notes

Face-to-Face dimensions are from the metal surface.
Valves Sizes 8″ & above are available with Gear Arrangement.

Suitability

Water

Steam

Gas

Oil

Air

Download PDF Product Inquiry

Material Combination

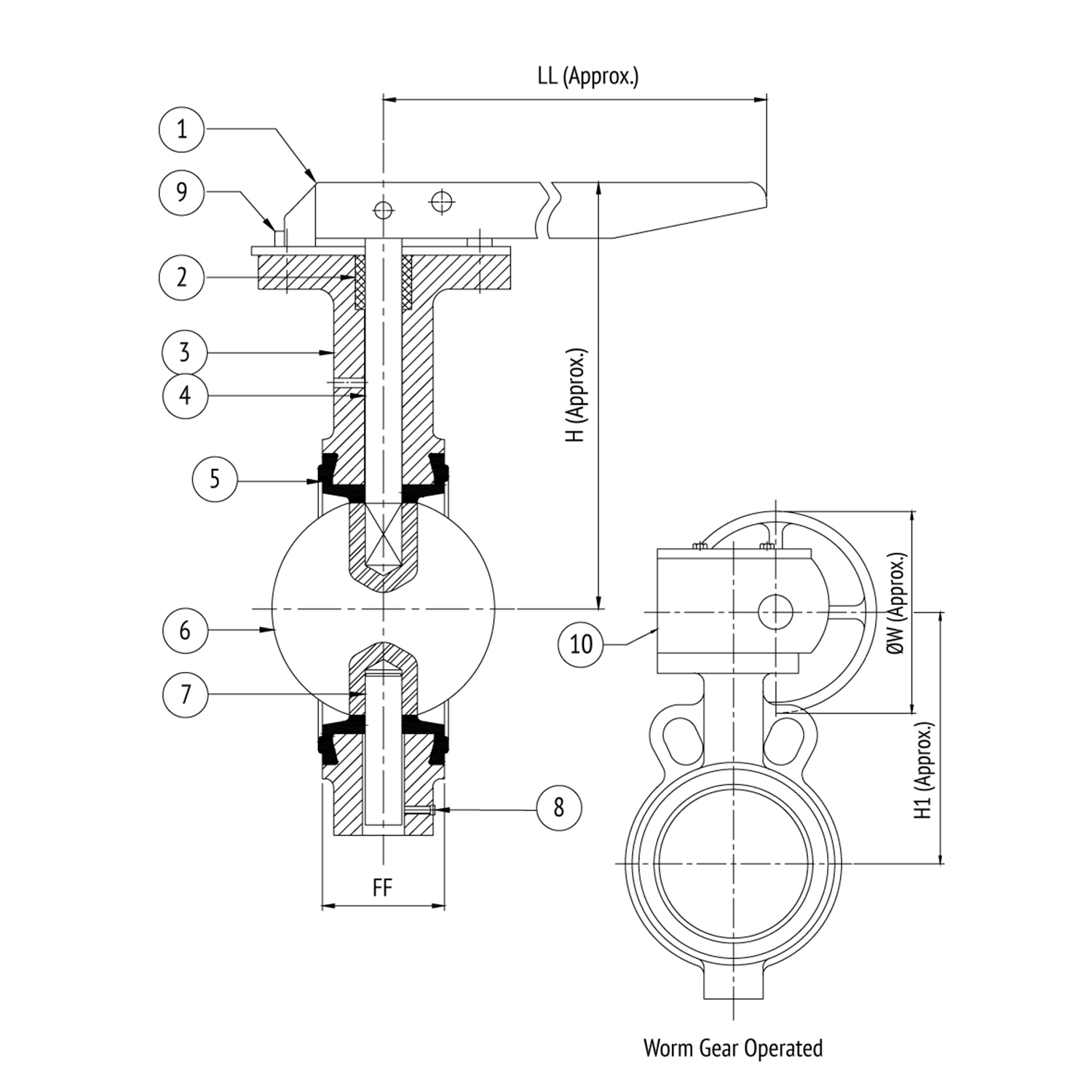

S.No	Description	No.	Material	Specifications
1	Lever Assembly	1	D.I.	–
2	Packing Ring	1	PTFE	–
3	Body	1	C.I.	IS 210 Gr. FG200
4	Upper Stem	1	Stainless Steel	ASTM A 276 Type 410
5	Body Liner	2	EPDM (Integrally Moulded)	–
6	Disc	1	S.G. Iron	EN 1563 Gr. GJL 400 15
7	Lower Stem	1	Stainless Steel	ASTM A 276 Type 410
8	L-Key Screw	1	Carbon Steel	–
9	L-Key Screw	2	Carbon Steel	–
10	Gear Box	1	C.I.	IS 210 Gr. FG200

Download PDF Product Inquiry

Dimensional Data

Size (mm)	FF	LL	H	H1	ØW
40	33	208	128	–	–
50	43	208	140	–	–
65	46	208	155	–	–
80	46	257	165	–	–
100	52	257	180	–	–
125	56	257	200	–	–
150	56	257	210	–	–
200	60	–	–	305	200
250	68	–	–	350	200
300	78	–	–	400	200

Download PDF Product Inquiry

AV-96D | Cast Iron Butterfly Valve, PN-16

Product Inquiry

Features

Product Standard

IS-13095

Testing Standard

IS-13095

Pressure / Class Rating

PN-16

Body Material Cum Standard

Cast Iron (IS 210 Gr. FG200)

Product Description

Wafer Type, without Lugs

Type of Seat

Integrally Moulded Liner

Trim

EPDM Liner, Disc: S.G Iron, Stem: 13% Cr. (SS 410)

End Details

Suitable for insertion between Flanges as per ANSI B16.1 Class-125 DIN ND-10 & BS-10 Table-E

Test Pressure

Body: 350 Psig (Hyd.), Seat: 255 Psig (Hyd.)

Max. Working Temperature

80°C

Notes

Face-to-Face dimensions are from the metal surface.
Valves Sizes 8″ & above are available with Gear Arrangement.

Download PDF

Suitability

Water

Steam

Gas

Oil

Air

Material Combination

S.No Description No. Material Specifications

1 Lever Assembly 1 D.I. –

2 Packing Ring 1 PTFE –

3 Body 1 C.I. IS 210 Gr. FG200

4 Upper Stem 1 Stainless Steel ASTM A 276 Type 410

5 Body Liner 2 EPDM (Integrally Moulded) –

6 Disc 1 S.G. Iron EN 1563 Gr. GJL 400 15

7 Lower Stem 1 Stainless Steel ASTM A 276 Type 410

8 L-Key Screw 1 Carbon Steel –

9 L-Key Screw 2 Carbon Steel –

10 Gear Box 1 C.I. IS 210 Gr. FG200

Dimensional Data

Size (mm) FF LL H H1 ØW

40 33 208 128 – –

50 43 208 140 – –

65 46 208 155 – –

80 46 257 165 – –
