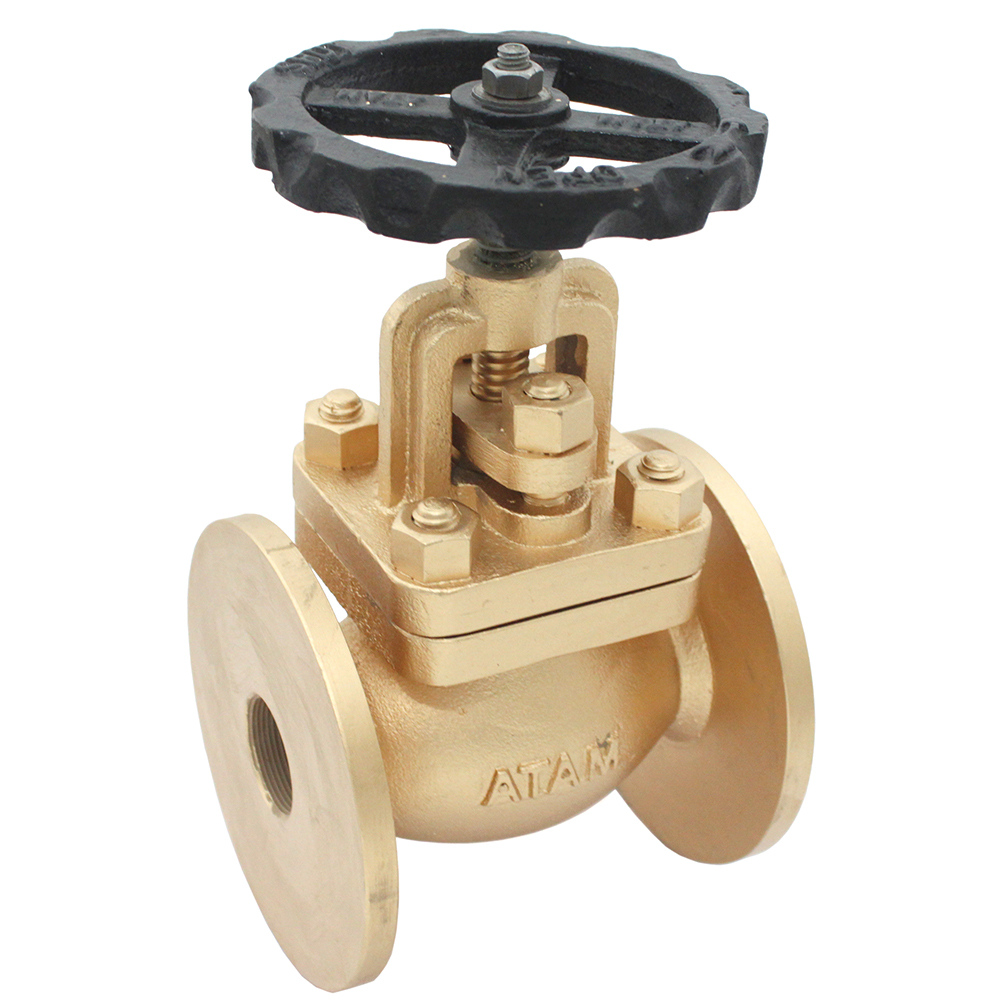

AV-204 Bronze Auxiliary Steam Stop Valve, Flanged Ends (Table-H)

AV-204 | Bronze Auxiliary Steam Stop Valve, Flanged Ends (Table-H)

Features

Body Material Cum Standard

Bronze (IBR 282 (a) (iv) Gr. B)

Product Description

Outside Screw & Yoke Type, Rising Stem, Handwheel Operated

Type of Seat

Renewable Seat

Type of Disc

Renewable Disc

Trim

13% Cr. (SS 410)

End Details

Flanged Ends as per BS-10 Table-H Flat Face (Undrilled)

Test Pressure

Body: 500 Psig (Hyd.)

Max. Working Pressure

250 Psig (Steam)

Max. Working Temperature

225°C

Notes

Test Certificate in Form III-C as per IBR is furnished with every supply.

Suitability

Water

Steam

Gas

Oil

Air

Download PDF Product Inquiry

Material Combination

S.No	Description	No.	Material	Specifications
1	Body	1	Bronze	IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K
2	Body Seat Ring	1	Stainless Steel	ASTM A 276 Type 410
3	Disc	1	Stainless Steel	ASTM A 276 Type 410
4	Disc Nut	1	Bronze	IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K
5	Gasket	1	CAF	IS 2712
6	Packing	–	Graphited Asbestos	–
7	Studs & Nuts	4 Each	Carbon Steel	–
8	Gland Flange	1	Bronze	IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K
9	Bonnet	1	Bronze	IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K
10	Stem	1	Stainless Steel	ASTM A 276 Type 410
11	Handwheel	1	Cast Iron	BS EN 1561 Gr. GJL 200
12	Washer	1	M.S.	–
13	Nut	1	M.S.	–
14	Gland Studs & Nuts	2 Each	M.S.	–

Download PDF Product Inquiry

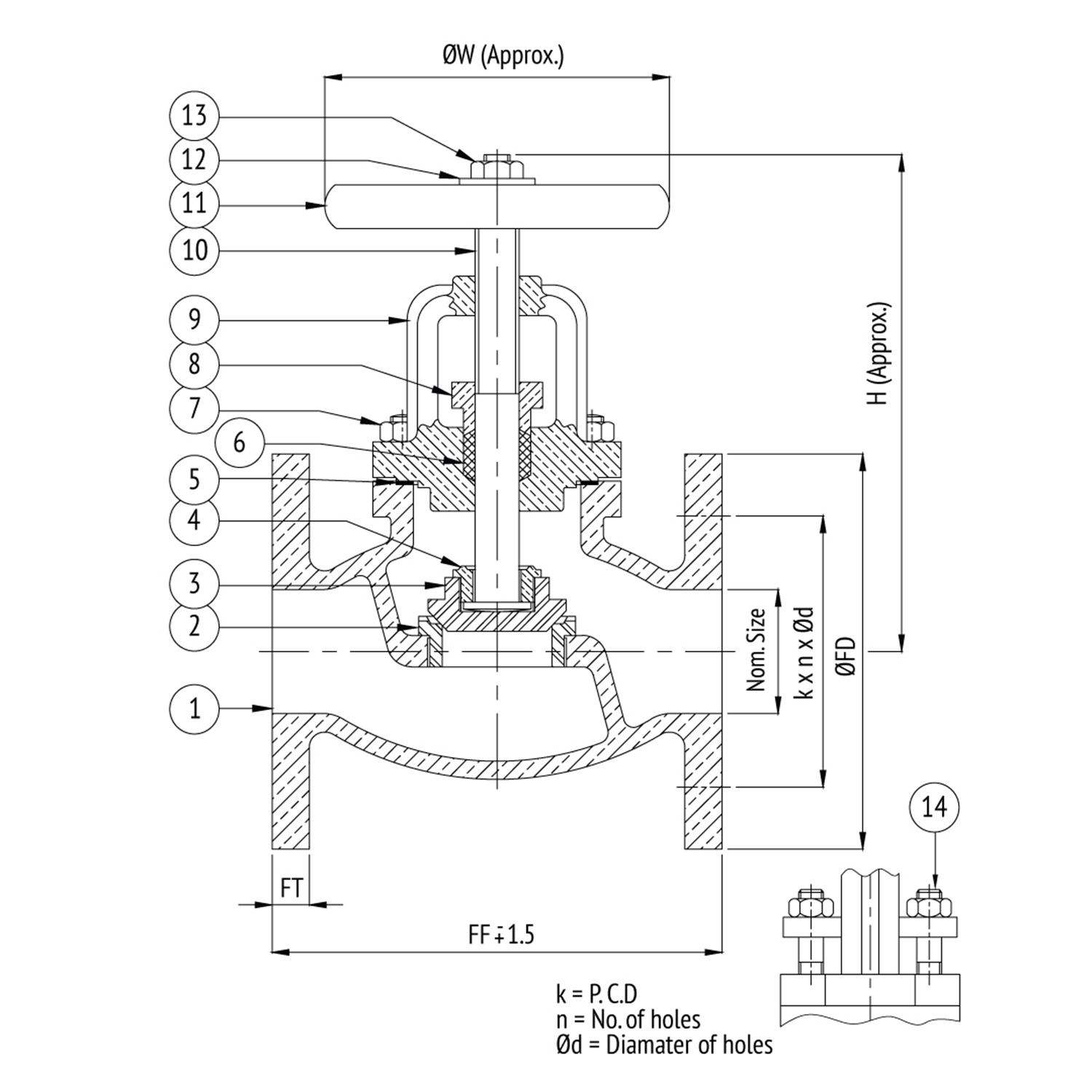

Dimensional Data

Size (mm)	FF	H	ØW	ØFD	FT	k	n	Ød
15	102	130	80	114.3	9.5	82.6	4	17.5
20	117	135	80	114.3	9.5	82.6	4	17.5
25	127	145	100	120.7	11.1	87.3	4	17.5
32	140	170	127	133.4	11.1	98.4	4	17.5
40	150	180	127	139.7	12.7	104.8	4	17.5
50	178	210	150	165.1	12.7	127	4	17.5

Download PDF Product Inquiry

AV-204 | Bronze Auxiliary Steam Stop Valve, Flanged Ends (Table-H)

Product Inquiry

Features

Body Material Cum Standard

Bronze (IBR 282 (a) (iv) Gr. B)

Product Description

Outside Screw & Yoke Type, Rising Stem, Handwheel Operated

Type of Seat

Renewable Seat

Type of Disc

Renewable Disc

Trim

13% Cr. (SS 410)

End Details

Flanged Ends as per BS-10 Table-H Flat Face (Undrilled)

Test Pressure

Body: 500 Psig (Hyd.)

Max. Working Pressure

250 Psig (Steam)

Max. Working Temperature

225°C

Notes

Test Certificate in Form III-C as per IBR is furnished with every supply.

Download PDF

Suitability

Water

Steam

Gas

Oil

Air

Material Combination

S.No Description No. Material Specifications

1 Body 1 Bronze IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K

2 Body Seat Ring 1 Stainless Steel ASTM A 276 Type 410

3 Disc 1 Stainless Steel ASTM A 276 Type 410

4 Disc Nut 1 Bronze IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K

5 Gasket 1 CAF IS 2712

6 Packing – Graphited Asbestos –

7 Studs & Nuts 4 Each Carbon Steel –

8 Gland Flange 1 Bronze IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K

9 Bonnet 1 Bronze IBR 282 (a) (iv) Gr. B / BS EN 1982 Gr. CC491K

10 Stem 1 Stainless Steel ASTM A 276 Type 410

11 Handwheel 1 Cast Iron BS EN 1561 Gr. GJL 200

12 Washer 1 M.S. –

13 Nut 1 M.S. –

14 Gland Studs & Nuts 2 Each M.S. –

Dimensional Data

Size (mm) FF H ØW ØFD FT k n Ød

15 102 130 80 114.3 9.5 82.6 4 17.5

20 117 135 80 114.3 9.5 82.6 4 17.5

25 127 145 100 120.7 11.1 87.3 4 17.5

32 140 170 127 133.4 11.1 98.4 4 17.5

40 150 180 127 139.7 12.7 104.8 4 17.5

50 178 210 150 165.1 12.7 127 4 17.5
