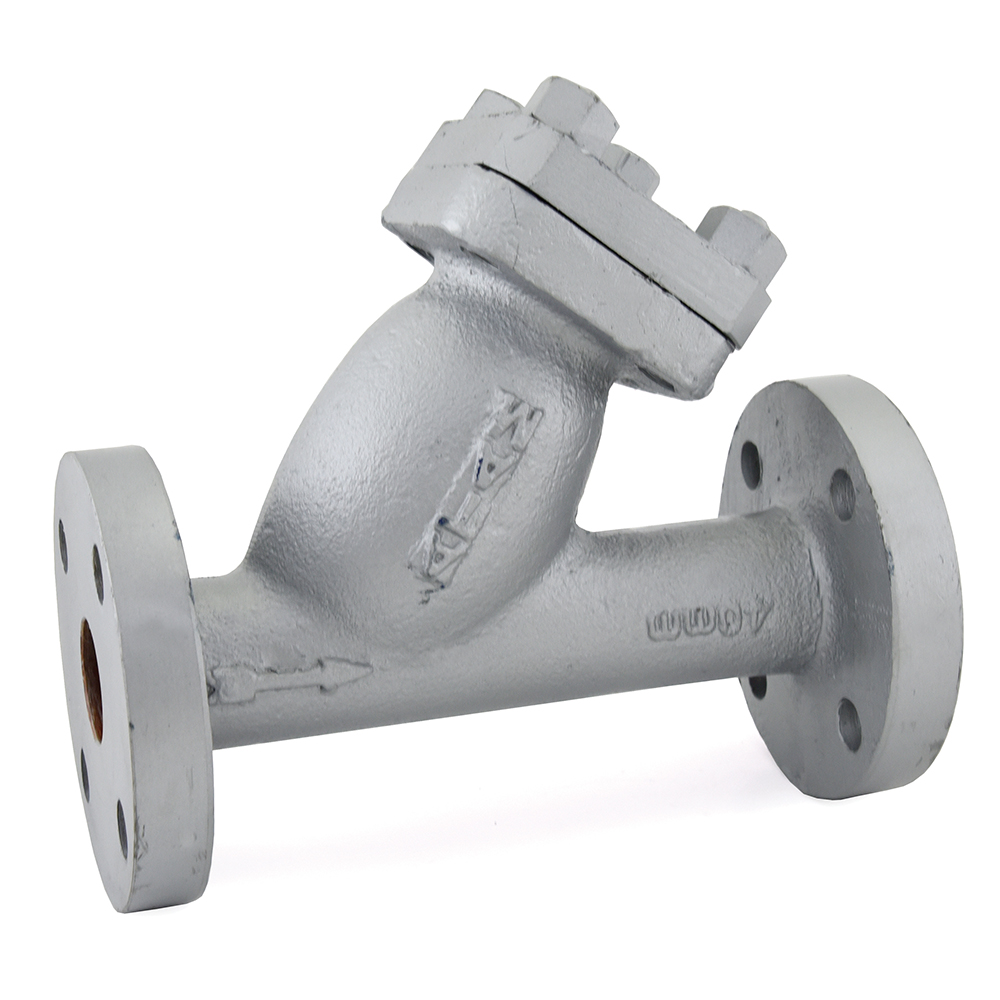

AV-279 Cast Carbon Steel Y-Type Strainer, Flanged EndsIBR Approved


  • AV-279 | Cast Carbon Steel Y-Type Strainer, Flanged Ends
    Features

    Body Material Cum Standard

    Cast Carbon Steel (ASTM A216 Gr. WCB)

    Product Description

    Y-Type, Bolted Cover

    Trim

    SS (AISI 304)|Screen having 1.5 mm Diameter Perforations

    End Details

    Flanged Ends as per BS-10 Table-J Flat Face (Undrilled)

    Test Pressure

    Body: 700 Psig (Hyd.)

    Max. Working Pressure

    350 Psig (Steam)

    Max. Working Temperature

    400°C

    Notes

    Test Certificate in Form III-C as per IBR is furnished with every supply.


    Suitability

    Water

    Steam

    Gas

    Oil

    Air

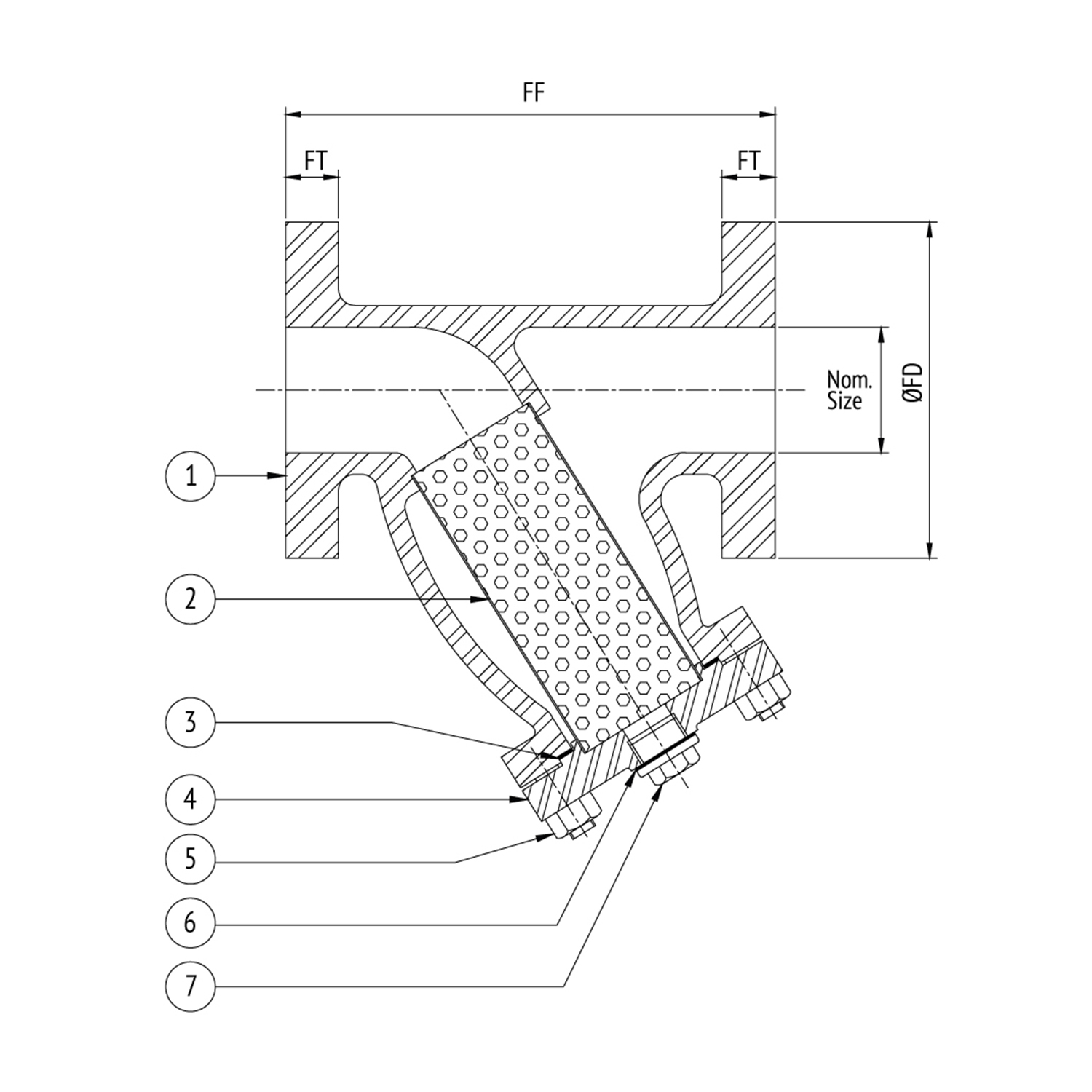

  • Material Combination
    S.No Description No. Material Specifications
    1 Body 1 C.C.S ASTM A 216 Gr. WCB
    2 Screen 1 Stainless Steel AISI 304 (1mm Perforation)
    3 Gasket 1 C.A.F. BS 1832
    4 Cover 1 C.C.S ASTM A216 Gr. WCB
    5 Studs & Nuts To Suit Carbon Steel
    6 Gasket 1 C.A.F. BS 1832
    7 Drain Plug 1 Stainless Steel ASTM A216 Type 410
    AV-279 | Cast Carbon Steel Y-Type Strainer, Flanged Ends
  • Dimensional Data
    Size (mm) FF ØFD FT
    25 181+- 2 120.7 19.1
    40 260+- 2 139.7 22.3
    50 277+- 2 165.1 25.4
    65 277+- 2 184.2 25.4
    80 296+- 2 203.2 31.8
    100 403+- 3 228.6 34.9
    125 429+- 3 279.4 38.1
    150 476+- 4 304.8 38.1
    200 670+- 5 368.3 41.3
  • AV-279 | Cast Carbon Steel Y-Type Strainer, Flanged Ends
    Product Inquiry
Features

Body Material Cum Standard

Cast Carbon Steel (ASTM A216 Gr. WCB)

Product Description

Y-Type, Bolted Cover

Trim

SS (AISI 304)|Screen having 1.5 mm Diameter Perforations

End Details

Flanged Ends as per BS-10 Table-J Flat Face (Undrilled)

Test Pressure

Body: 700 Psig (Hyd.)

Max. Working Pressure

350 Psig (Steam)

Max. Working Temperature

400°C

Notes

Test Certificate in Form III-C as per IBR is furnished with every supply.

Download PDF

Suitability

Water

Steam

Gas

Oil

Air


Material Combination
S.No Description No. Material Specifications
1 Body 1 C.C.S ASTM A 216 Gr. WCB
2 Screen 1 Stainless Steel AISI 304 (1mm Perforation)
3 Gasket 1 C.A.F. BS 1832
4 Cover 1 C.C.S ASTM A216 Gr. WCB
5 Studs & Nuts To Suit Carbon Steel
6 Gasket 1 C.A.F. BS 1832
7 Drain Plug 1 Stainless Steel ASTM A216 Type 410
Dimensional Data
Size (mm) FF ØFD FT
25 181+- 2 120.7 19.1
40 260+- 2 139.7 22.3
50 277+- 2 165.1 25.4
65 277+- 2 184.2 25.4
80 296+- 2 203.2 31.8
100 403+- 3 228.6 34.9
125 429+- 3 279.4 38.1
150 476+- 4 304.8 38.1
200 670+- 5 368.3 41.3
