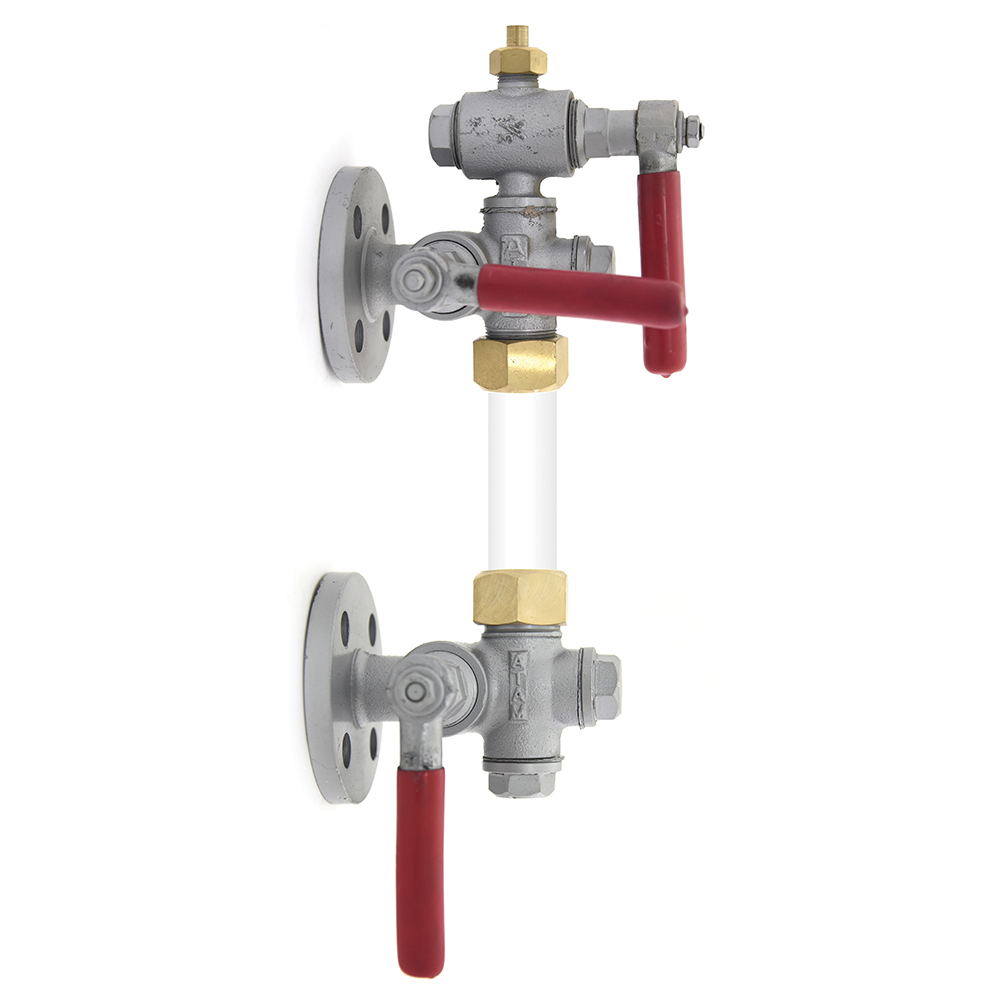

AV-281 Cast Carbon Steel Sleeve Packed Water Level Gauge, Flanged EndsIBR Approved


  • AV-281 | Cast Carbon Steel Sleeve Packed Water Level Gauge, Flanged Ends
    Features

    Body Material Cum Standard

    Cast Carbon Steel (ASTM A216 Gr. WCB)

    Product Description

    With Automatic Shut Off Device in the Water Arm, Available for Left Hand or Right Hand Mounting

    End Details

    Flanged Ends as per BS-10 Table-J Flat Face (Undrilled)

    Test Pressure

    Body: 700 Psig (Hyd.)

    Max. Working Pressure

    350 Psig (Steam)

    Max. Working Temperature

    400°C

    Notes

    Test Certificate in Form III-C as per IBR is furnished with every supply.


    Suitability

    Water

    Steam

    Gas

    Oil

    Air

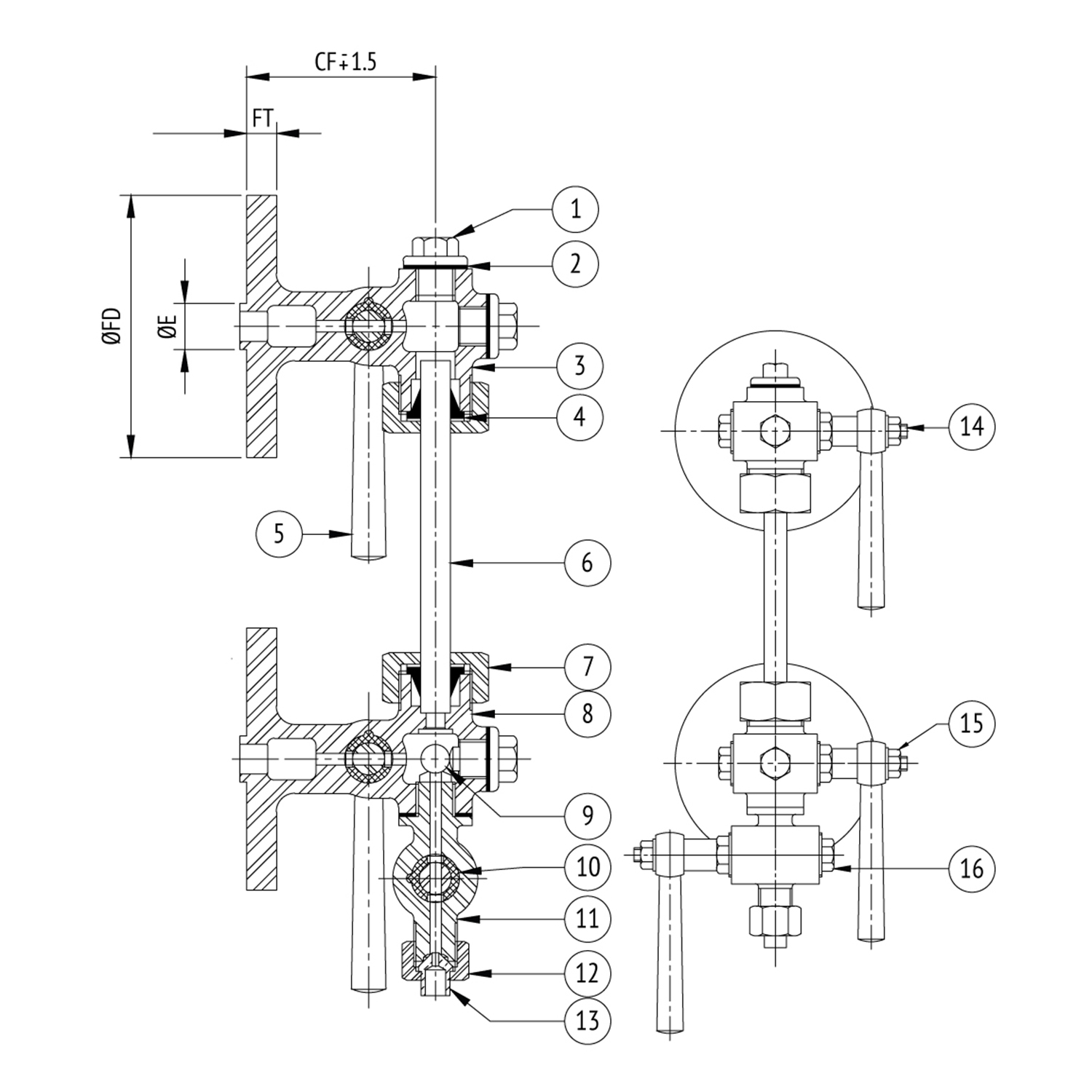

  • Material Combination
    S.No Description No. Material Specifications
    1 Plug 3 Carbon Steel
    2 Gasket 3 C.A.F.
    3 Upper Arm 1 C.C.S. ASTM A 216 Gr. WCB
    4 Cone 2 Rubber
    5 Handle 3 M.I.
    6 Glass Tube 1 Glass
    7 Nut 2 Carbon Steel
    8 Lower Arm 1 C.C.S. ASTM A 216 Gr. WCB
    9 Ball 1 Stainless Steel AISI 304
    10 Sleeve 3 Moulded Asbestos
    11 Drain Valve Body 1 C.C.S ASTM A 216 Gr. WCB
    12 Union Nut 1 Carbon Steel
    13 Nipple 1 Stainless Steel ASTM A 276 Type 410
    14 Stem 3 Stainless Steel ASTM A 276 Type 410
    15 Nut 3 Carbon Steel
    16 Bottom Nut 3 Carbon Steel
    AV-281 | Cast Carbon Steel Sleeve Packed Water Level Gauge, Flanged Ends
  • Dimensional Data
    Size (mm) CF ØFD FT ØE
    20 95 114.3 15.9 25.4
  • AV-281 | Cast Carbon Steel Sleeve Packed Water Level Gauge, Flanged Ends
    Product Inquiry
Features

Body Material Cum Standard

Cast Carbon Steel (ASTM A216 Gr. WCB)

Product Description

With Automatic Shut Off Device in the Water Arm, Available for Left Hand or Right Hand Mounting

End Details

Flanged Ends as per BS-10 Table-J Flat Face (Undrilled)

Test Pressure

Body: 700 Psig (Hyd.)

Max. Working Pressure

350 Psig (Steam)

Max. Working Temperature

400°C

Notes

Test Certificate in Form III-C as per IBR is furnished with every supply.

Download PDF

Suitability

Water

Steam

Gas

Oil

Air


Material Combination
S.No Description No. Material Specifications
1 Plug 3 Carbon Steel
2 Gasket 3 C.A.F.
3 Upper Arm 1 C.C.S. ASTM A 216 Gr. WCB
4 Cone 2 Rubber
5 Handle 3 M.I.
6 Glass Tube 1 Glass
7 Nut 2 Carbon Steel
8 Lower Arm 1 C.C.S. ASTM A 216 Gr. WCB
9 Ball 1 Stainless Steel AISI 304
10 Sleeve 3 Moulded Asbestos
11 Drain Valve Body 1 C.C.S ASTM A 216 Gr. WCB
12 Union Nut 1 Carbon Steel
13 Nipple 1 Stainless Steel ASTM A 276 Type 410
14 Stem 3 Stainless Steel ASTM A 276 Type 410
15 Nut 3 Carbon Steel
16 Bottom Nut 3 Carbon Steel
Dimensional Data
Size (mm) CF ØFD FT ØE
20 95 114.3 15.9 25.4
