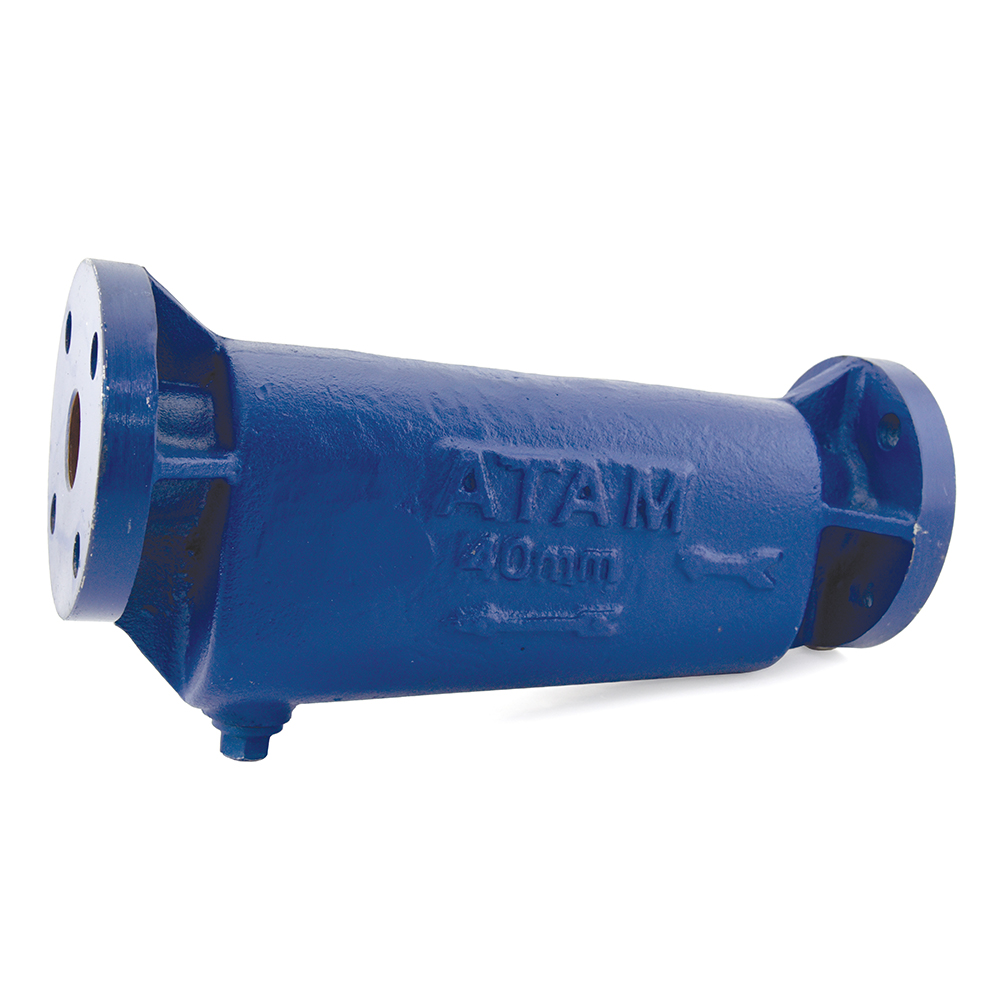

AV-264 Cast Iron Moisture Separator, Flanged EndsIBR Approved


  • AV-264 | Cast Iron Moisture Separator, Flanged Ends
    Features

    Body Material Cum Standard

    Cast Iron (IBR 86 to 93 Gr. A)

    Product Description

    Horizontal Type with Drain Feature

    End Details

    Flanged Ends as per BS-10 Table-F Flat Face (Undrilled)

    Test Pressure

    Body: 300 Psig (Hyd.)

    Max. Working Pressure

    150 Psig (Steam)

    Max. Working Temperature

    220°C

    Notes

    Test Certificate in Form III-C as per IBR is furnished with every supply.


    Suitability

    Water

    Steam

    Gas

    Oil

    Air


  • Material Combination
    S.No Description No. Material Specifications
    1 Body 1 Cast Iron IBR 86 to 93 Gr.A
    2 Plug 1 Carbon Steel
    3 Gasket 1 C.A.F. IS 2712
    AV-264 | Cast Iron Moisture Separator, Flanged Ends

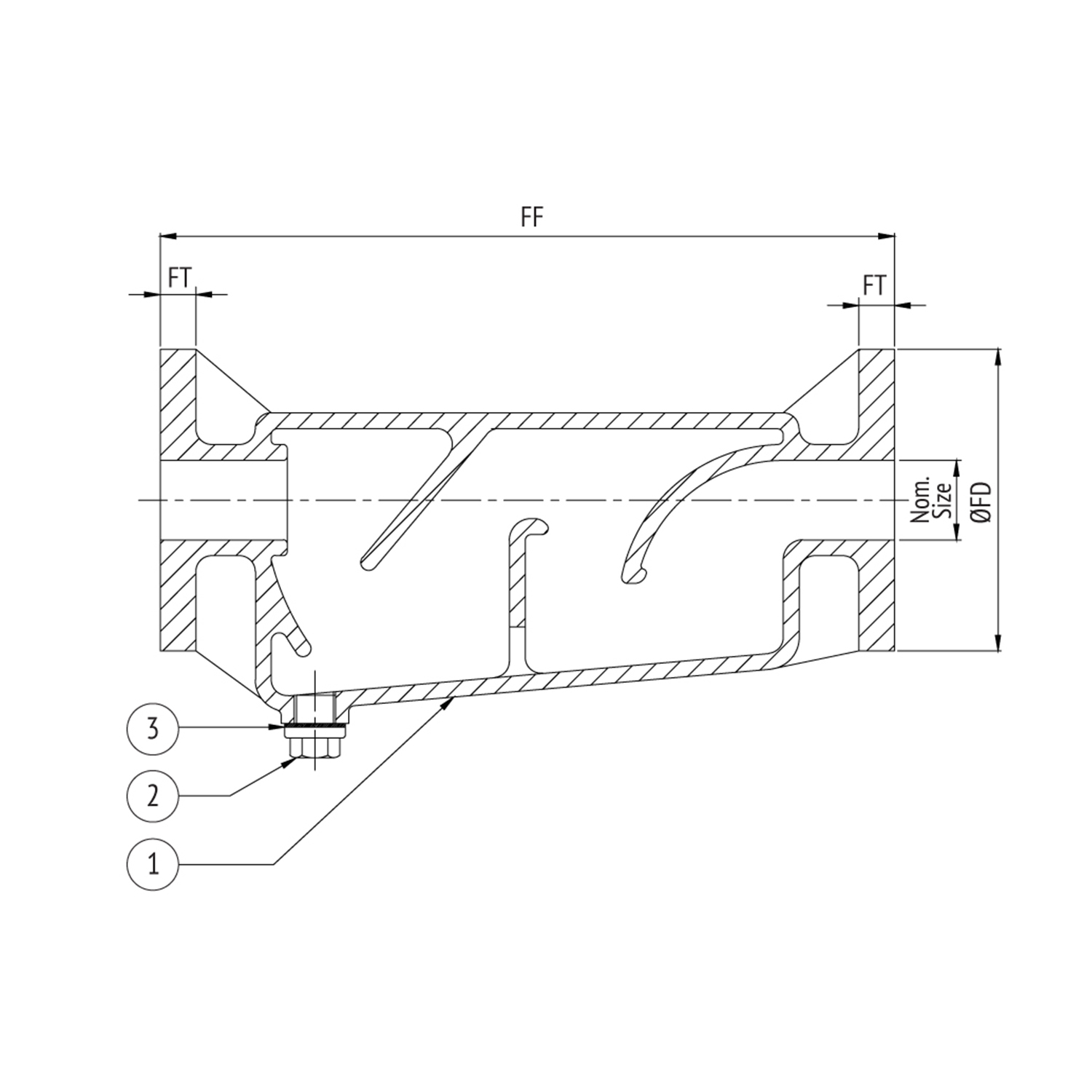

  • Dimensional Data
    Size (mm) FF ØFD FT
    25 300 120.7 12.7
    40 370 139.7 15.9
    50 466 165.1 19.1
    65 485 184.2 19.1
    80 485 203.2 19.1
    100 696 228.6 22.3
    150 800 304.8 25.4
