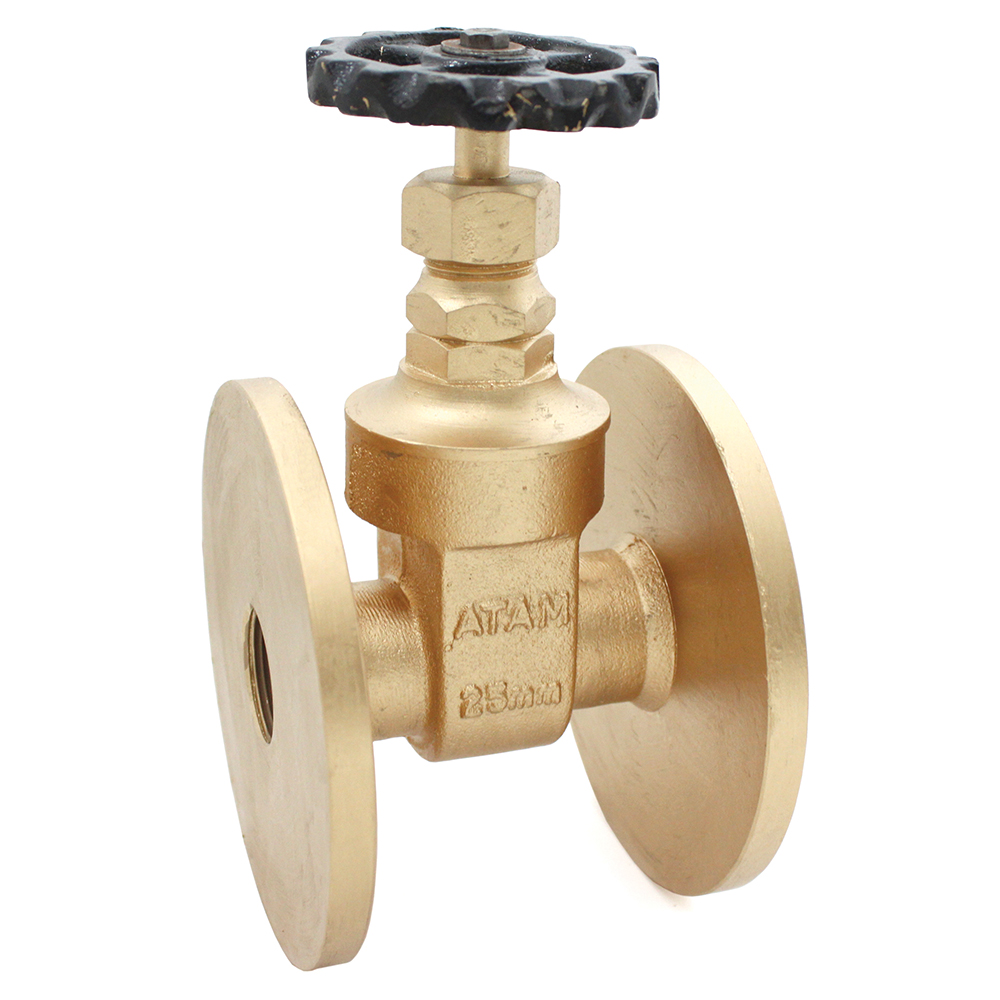

AV-73 Bronze Gate Valve, Flanged Ends

AV-73 | Bronze Gate Valve, Flanged Ends

Features

Body Material Cum Standard

Bronze (BS EN 1982 Gr. CC491K)

Product Description

Screwed in Bonnet, Inside Screw, Non Rising Stem, Handwheel Operated

Type of Seat

Integral Seat

Type of Wedge

Solid Wedge

Trim

Cu-Alloy

End Details

Flanged Ends as per BS-10 Table-D (Undrilled)

Test Pressure

Body: 300 Psig (Hyd.), Seat: 200 Psig (Hyd.)

Suitability

Water

Steam

Gas

Oil

Air

Download PDF Product Inquiry

Material Combination

S.No	Description	No.	Material	Specifications
1	Body	1	Bronze	BSEN 1982 Gr. CC491K
2	Wedge	1	Bronze	BSEN 1982 Gr. CC491K
3	Stem Nut	1	Bronze	BSEN 1982 Gr. CC491K
4	Bonnet	1	Bronze	BSEN 1982 Gr. CC491K
5	Packing	–	Graphited Asbestos	–
6	Gland	1	Bronze	BSEN 1982 Gr. CC491K
7	Gland Nut	1	Bronze	BSEN 1982 Gr. CC491K
8	Stem	1	Brass	IS 6912 Gr. FLB
9	Handwheel	1	Aluminium	–

Download PDF Product Inquiry

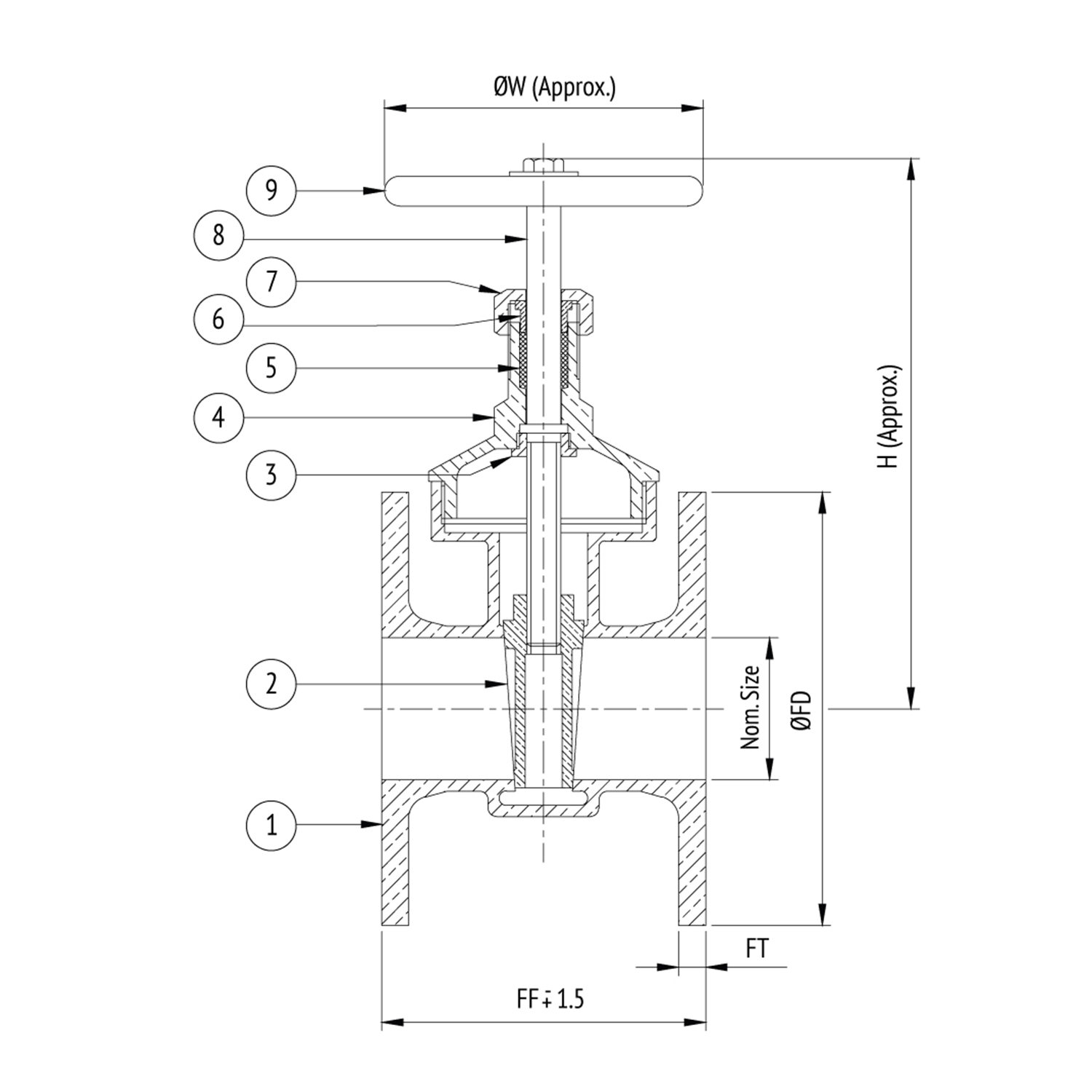

Dimensional Data

Size (mm)	FF	H	ØW	ØFD	FT
15	66	92	73	95.3	6.4
20	76	112	83	101.6	6.4
25	86	125	83	114.3	7.9
32	90	132	83	120.7	7.9
40	106	150	95	133.4	9.5
50	114	180	95	152.4	9.5
65	138	215	115	165.1	11.1
80	151	260	150	184.2	12.7
100	179	310	185	215.9	15.9
125	215	415	216	254	17.5
150	257	489	250	279.4	17.5

Download PDF Product Inquiry

AV-73 | Bronze Gate Valve, Flanged Ends

Product Inquiry

Features

Body Material Cum Standard

Bronze (BS EN 1982 Gr. CC491K)

Product Description

Screwed in Bonnet, Inside Screw, Non Rising Stem, Handwheel Operated

Type of Seat

Integral Seat

Type of Wedge

Solid Wedge

Trim

Cu-Alloy

End Details

Flanged Ends as per BS-10 Table-D (Undrilled)

Test Pressure

Body: 300 Psig (Hyd.), Seat: 200 Psig (Hyd.)

Download PDF

Suitability

Water

Steam

Gas

Oil

Air

Material Combination

S.No Description No. Material Specifications

1 Body 1 Bronze BSEN 1982 Gr. CC491K

2 Wedge 1 Bronze BSEN 1982 Gr. CC491K

3 Stem Nut 1 Bronze BSEN 1982 Gr. CC491K

4 Bonnet 1 Bronze BSEN 1982 Gr. CC491K

5 Packing – Graphited Asbestos –

6 Gland 1 Bronze BSEN 1982 Gr. CC491K

7 Gland Nut 1 Bronze BSEN 1982 Gr. CC491K

8 Stem 1 Brass IS 6912 Gr. FLB

9 Handwheel 1 Aluminium –

Dimensional Data

Size (mm) FF H ØW ØFD FT

15 66 92 73 95.3 6.4

20 76 112 83 101.6 6.4

25 86 125 83 114.3 7.9

32 90 132 83 120.7 7.9

40 106 150 95 133.4 9.5

50 114 180 95 152.4 9.5

65 138 215 115 165.1 11.1

80 151 260 150 184.2 12.7

100 179 310 185 215.9 15.9

125 215 415 216 254 17.5

150 257 489 250 279.4 17.5
