AV-96H Cast Steel Butterfly Valve, Triple Offset, with WCB Disc, Wafer Type, Gear Operated, PN-40

AV-96H | Cast Steel Butterfly Valve, Triple Offset, with WCB Disc, Wafer Type, Gear Operated, PN-40

Features

Product Standard

API 609

Testing Standard

API 598

Pressure / Class Rating

PN-40

Body Material Cum Standard

Cast Carbon Steel (ASTM A216 Gr. WCB)

Product Description

Wafer Type, without Lugs, Triple Offset, Gear Operated

Type of Seat

Metal Seat

Trim

Disc: WCB,Stem: S.S.

End Details

Suitable for insertion between Flanges as per ASME B16.5 Class-300

Test Pressure

Body: 60 Bar (Hyd.); Seat: 44 Bar (Hyd.)

Suitability

Water

Steam

Gas

Oil

Air

Download PDF Product Inquiry

Material Combination

Sr. No	Description	No.	Material
1	Body	1	ASTM A 216 Gr.WCB
2	Disc	1	ASTM A 216 Gr.WCB
3	Stem	1	17-4-Ph
4	Retainer Ring	1	S.S.316
5	Seal	1	S.S.316 Laminated + Graphite
6	Bush	4	CS Backed PTFE
7	Gaskets (Internal)	–	Spiral Wound Gasket
8	Mounting Bracket	1	Carbon Steel
9	Operator	1	Gear Box
10	Internal Fastners	To Suit	ASTM A 193 Gr.B8M
11	External Fastners	To Suit	ASTM A 193 Gr.B7

Download PDF Product Inquiry

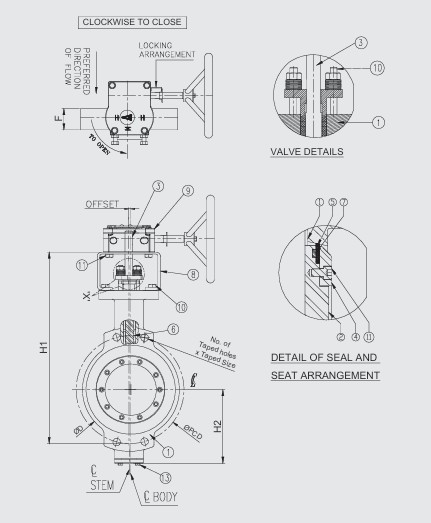

Dimensional Data

———–Dimensions (MM)————–

Size (mm)	H1±10	H2±10	F±2	ØD	ØPCD
50	180	75	48	104	127
80	200	100	48	142	168.3
100	248	158	54	173	200
125	250	165	59	208	235
150	280	190	59	234	269
200	320	230	73	297	330.2
250	446	267	83	355	387.4
300	525	318	92	415	450.8

———————-Flange Details (Each Side)———————-

Size (mm)	Total Holes	Taped Holes	Size x Depth of holes
50	8	4	5/8” x Thru
80	8	4	3/4” x Thru
100	8	4	3/4” x Thru
125	8	4	3/4” x Thru
150	12	4	3/4” x Thru
200	12	4	7/8” x Thru
250	16	4	1” x Thru
300	16	4	1.1/8” x Thru

Download PDF Product Inquiry

AV-96H | Cast Steel Butterfly Valve, Triple Offset, with WCB Disc, Wafer Type, Gear Operated, PN-40

Product Inquiry

Cast Steel Butterfly Valve, Triple Offset, with WCB Disc, Wafer Type, Gear Operated, PN-40

Features

Product Standard

API 609

Testing Standard

API 598

Pressure / Class Rating

PN-40

Body Material Cum Standard

Cast Carbon Steel (ASTM A216 Gr. WCB)

Product Description

Wafer Type, without Lugs, Triple Offset, Gear Operated

Type of Seat

Metal Seat

Trim

Disc: WCB,Stem: S.S.

End Details

Suitable for insertion between Flanges as per ASME B16.5 Class-300

Test Pressure

Body: 60 Bar (Hyd.); Seat: 44 Bar (Hyd.)

Download PDF

Suitability

Water

Steam

Gas

Oil

Air

Material Combination

Sr. No Description No. Material

1 Body 1 ASTM A 216 Gr.WCB

2 Disc 1 ASTM A 216 Gr.WCB

3 Stem 1 17-4-Ph

4 Retainer Ring 1 S.S.316

5 Seal 1 S.S.316 Laminated + Graphite

6 Bush 4 CS Backed PTFE

7 Gaskets (Internal) – Spiral Wound Gasket

8 Mounting Bracket 1 Carbon Steel

9 Operator 1 Gear Box

10 Internal Fastners To Suit ASTM A 193 Gr.B8M

11 External Fastners To Suit ASTM A 193 Gr.B7

Dimensional Data

———–Dimensions (MM)————–

Size (mm) H1±10 H2±10 F±2 ØD ØPCD

50 180 75 48 104 127

80 200 100 48 142 168.3

100 248 158 54 173 200

125 250 165 59 208 235

150 280 190 59 234 269

200 320 230 73 297 330.2

250 446 267 83 355 387.4

300 525 318 92 415 450.8

———————-Flange Details (Each Side)———————-

Size (mm) Total Holes Taped Holes Size x Depth of holes

50 8 4 5/8” x Thru

80 8 4 3/4” x Thru

100 8 4 3/4” x Thru

125 8 4 3/4” x Thru

150 12 4 3/4” x Thru

200 12 4 7/8” x Thru

250 16 4 1” x Thru

300 16 4 1.1/8” x Thru
